buyer show of Brightsail air classifying mill acm mill from Central American customer

buyer show of Brightsail air classifying mill acm mill from Central American customer

This is buyer show of Brightsail air classifying mill acm mill from Central American customer,they are using our BSP-350 ACM grinder to making icing sugar powder, the powder size can be 60~2500 mesh,super fine and even.

SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry

This our Central American customer's buyer's show about our BSP-350 air classifying mill.It has worked for 3 years in his factory,for making superfine sugar powder.

Now,it still works well.


Machine introduction of acm mill

This Ttype of grinder machine consisted of the crusher part, cyclone, dust collecting box, blower and electrical cabinet.

It can be used to grind sugar, turmeric, ginger, rice into very fine powder. For sugar grinding, the output size can be 100~1000mesh fine powder.

For ginger and garlic grinding, the output size can be 60~300mesh fine powder. For cocoa powder making, the output size can be 300mesh.


Working Method

Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters,

then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement.

There is air calssifier inside the mill chamber.

That's why it can make super fine powder and can be used as a Fine powder grinder (Fine powder mill).

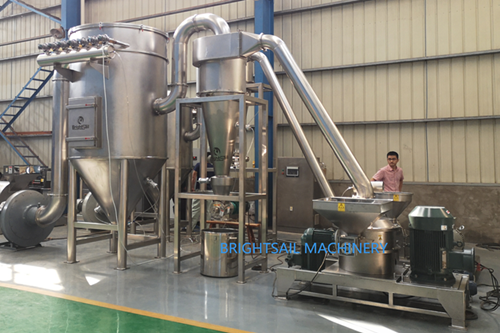

This is picture of our BSP-350 Air classifying mill

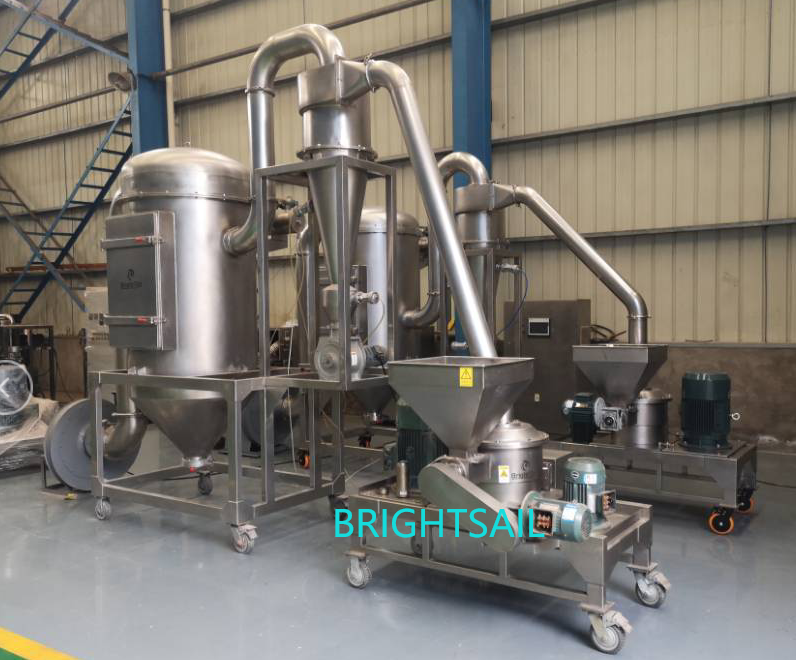

This is picture of our BSP-500 acm mill

We have 4 models for our air classifying mill.


Model

BSP-350BSP-450BSP-500BSP-750
Capacity(kg/h)20-20040-50060-800120-1800
Input size(mm)< 15< 15< 15< 15
Powder fineness(mesh)60-250060-250060-250060-2500
Crush motor(kw)7.5/1115/18.522/30/3745/75
Grade motor(kw)1.12.27.511
Blower(kw)5.57.518.537
Feed motor(kw)0.370.750.751.1
Discharge motor(kw)0.750.750.751.1
Speed of principle axis (rpm)-6500-5600-4400-3100
Grading impeller speed(rpm)4000400035003000
Overall size(L*W*H)(mm)5000×1400×28005400×1500×29006600×2000×36009800×2700×4900
Weight(kg)1600180023003100


About us

Till 2022, we have sent machines to more than 70 countries!
