This is 40 to 200 mesh stainless steel pin mill macine from China. It can grind crystal material with high capacity, it can also grind food with high oil content or high sugar content into fine powder.


SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry

Pin Mill

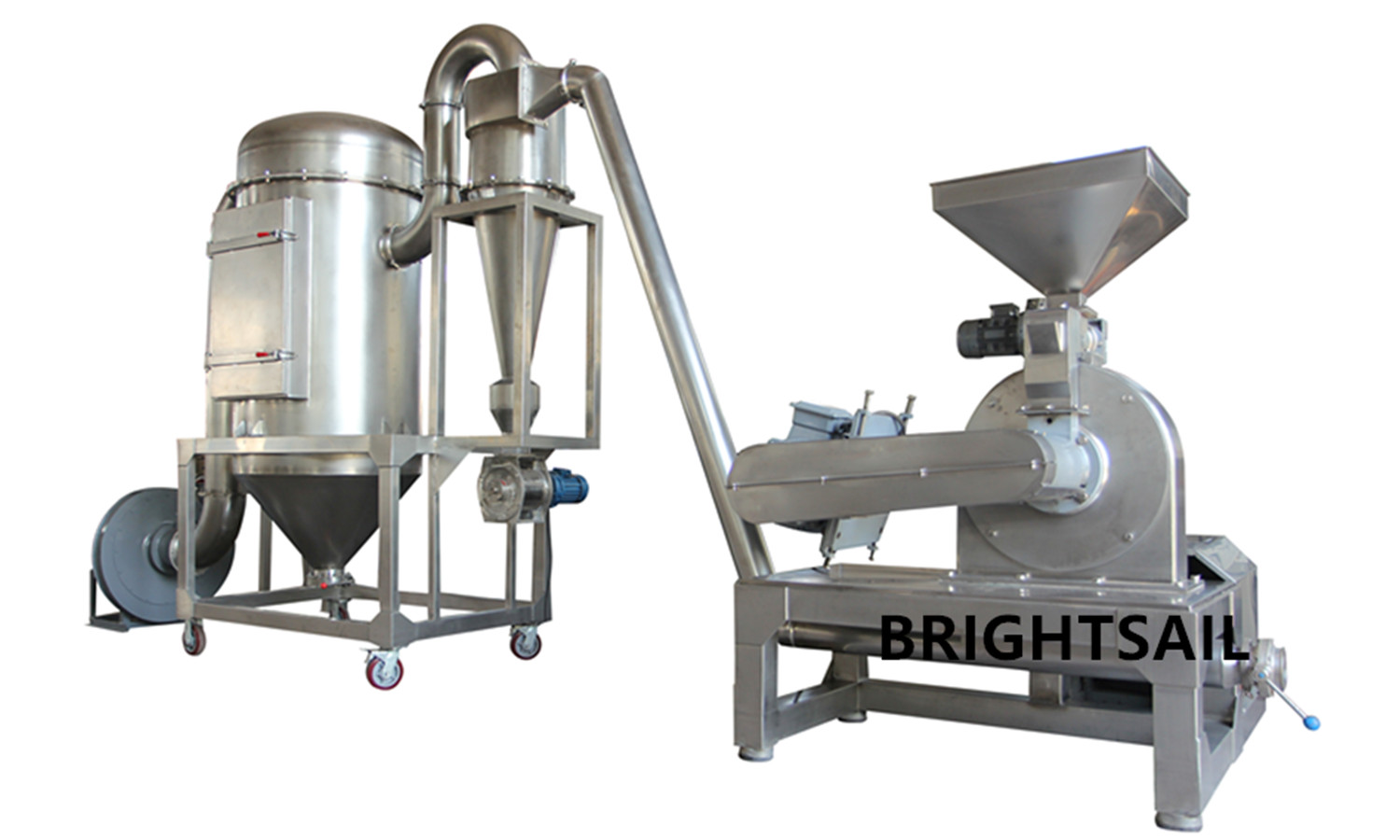

This is our BSZ pin mill machine.

It is designed for making super fine powder.

And it can grind crystal material with high capacity, it can also grind food with high oil content or high sugar content into fine powder.

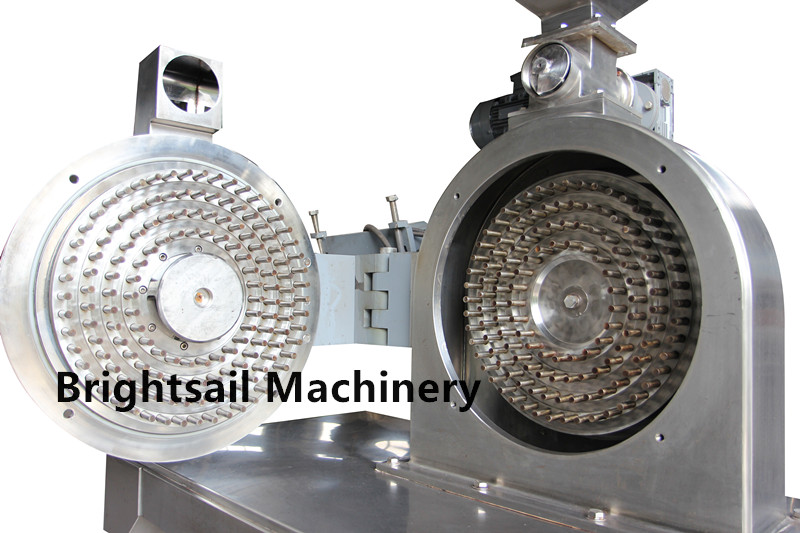

our pin mill machine has two grind discs, both of them can rotate with a high speed.

And the two knife discs rotate against each other to achieve a good milling effect.


This Pin mill has no sieve in mill chamber,

that's why when grinding material which contains a little oil or sugar,  the powder won't get stuck in it.


Besides, the rotor speed is very fast, can reach to 12000 rpm,

So it can make fine powder.

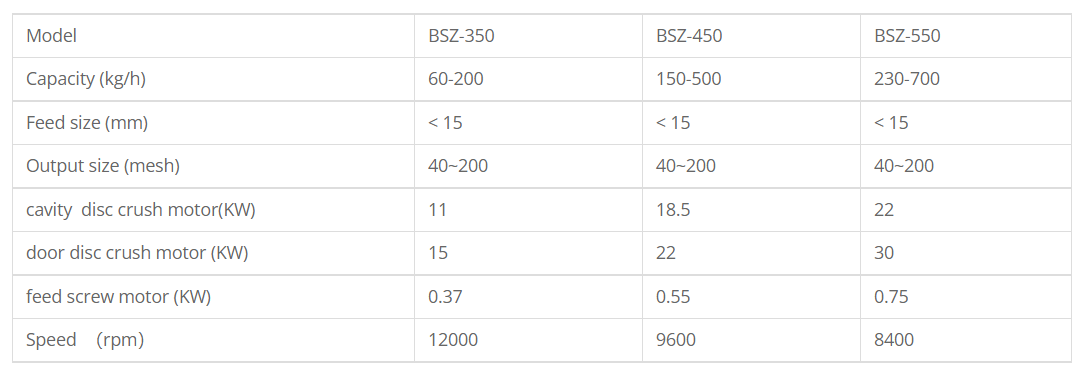

Technical data of our BSZ pin mill


FAQ of our BSZ pin mill grinder

Q: How many countries have you exported?

A: Till 2021, we have exported machines to more than 70 countries. Including USA, European countries,Japan, South American countries,Australia,New Zealand,and lot of Middle-east Asia countries,Southeast Asian countries and Africa.





Q: Can I see the working machine in users' factory?

A: It depends, you shall contact our sales to check.

  And most companies don’t allow strangers to visit their factory.Only a few allow,so please contact our sales to check whether it is possible.





Q: Does the machine have FDA certificate?

A: Our machine can meet the requirements of FDA, but our machine is not food or pharmaceutical products, our machine doesn’t have FDA certificate.

But our machine can be applied in food and pharmaceutical’s production, we a lot of customers who are using our machine to produce food, or pharmaceutical products.


Q: Is the powder size adjustable?
A: Yes, the powder size can be changed by setting the parameter of inverter.

   For example, if you want finer powder, you can try 25 Hz, if not fine enough,then try 30HZ,35Hz...etc





pin mill pin mill grinder pin milling machine
