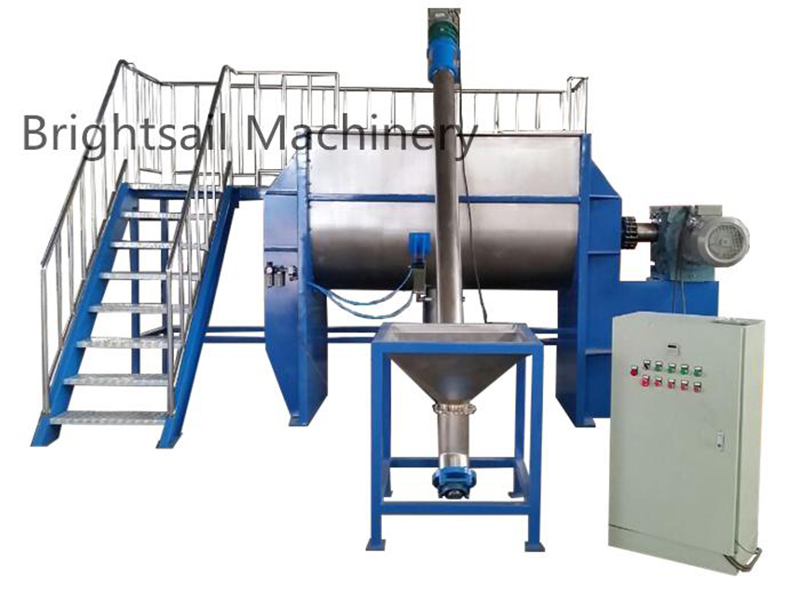

BSR ribbon mixer is widely used in solid-solid(powder material) and solid-liquid(powder material-fluidity material) mixing in the fields of chemical industry, pharmacy, foodstuff industries.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Structure

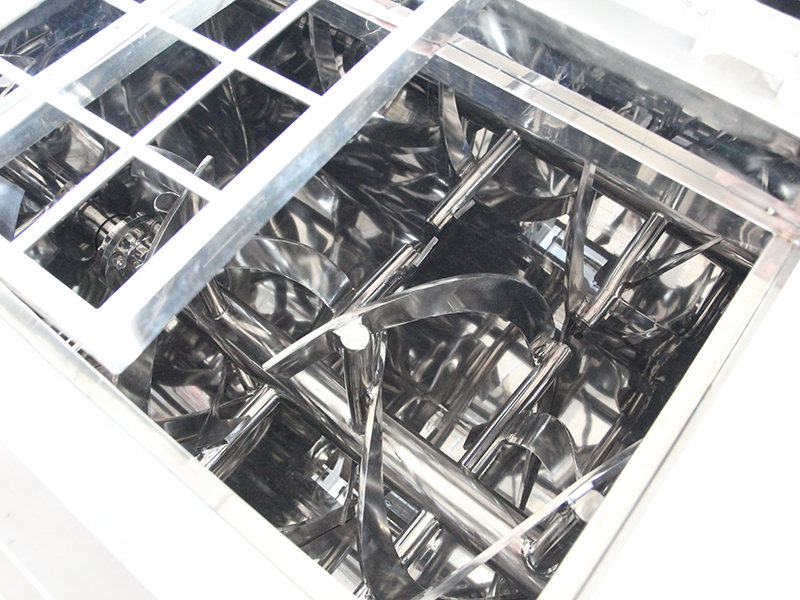

Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center,and inside screw transmitting the material from center to sides to form convection mix.
Working Method

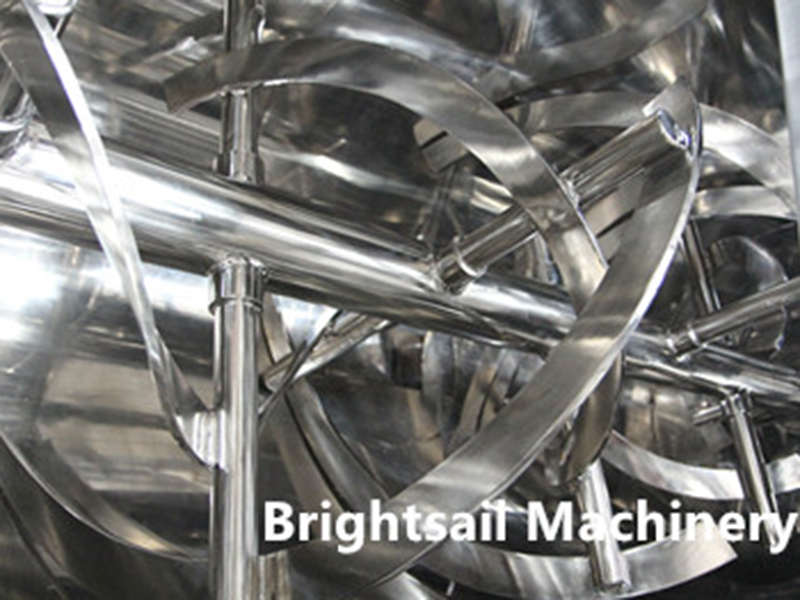

BSR series Ribbon blender is mainly comprised of mixing barrel, spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time. If you are looking for dry powder mixer like spice powder mixer,protein powder blender,spice powder blender, our BSR-ribbon blender is a very good choice.
| Model | Max work volume(volume) | Speed(rpm) | Motor(kw) | Overall size(mm) | weight(Kg) |
| BSR-100 | 60L | 76 | 2.2 | 1080(L)*758(W)*615(H) | 330 |
| BSR-300 | 180L | 66 | 4 | 1550(L)*812(W)*1015(H) | 780 |
| BSR--500 | 300L | 66 | 5.5 | 1975(L)*1059(W)*1120(H) | 955 |
| BSR-1000 | 600L | 41 | 11 | 2340(L)*1380(W)*1455(H) | 1400 |
| BSR-2000 | 1200L | 33 | 18.5 | 2480(L)*1651(W)*1805(H) | 2500 |
| BSR-3000 | 1800L | 33 | 22 | 2945(L)*1896(W)*1980(H) | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038(L)*1946(W)*2205(H) | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932(L)*2010(W)*2035(H) | 4620 |
| BSR-6000 | 3600L | 26 | 37 | 3938(L)*1882(W)*2246(H) | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986(L)*2160(W)*2516(H) | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500(L)*2270(W)*2667(H) | 8900 |
| BSR-12000 | 7200L | 19 | 55 | 4500(L)*2466(W)*2785(H) | 9520 |
| BSR-15000 | 9000L | 17 | 75 | 5363(L)*2470(W)*3020(H) | 9950 |
| BSR-20000 | 12000L | 17 | 75 | 5670(L)*2650(W)*3497(H) | 11140 |
