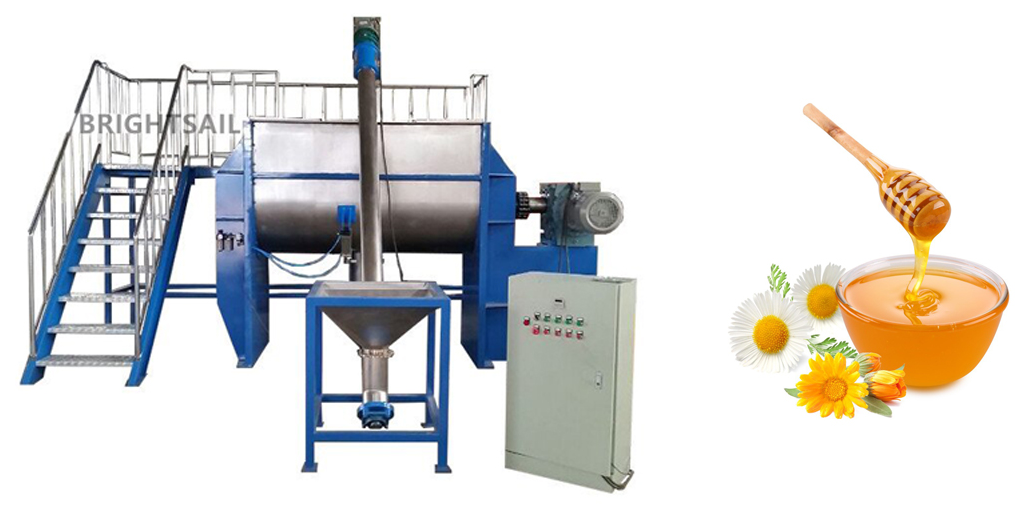

In this video,we tested on nozzles on BSR-4000 ribbon blender with honey according to the requirement of our Canadian customer.

Our BSR ribbon blender is mainly used in solid-solid(powder material) and solid-liquid(powder material-fluidity material) mixing in the fields of chemical industry,pharmacy,foodstuff industry.

SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry

Structure

The horizontal belt mixer is composed of a U-shaped cylinder, a transmission part and a belt mixing blade. The belt mixing blade is usually double or triple. The outer screw collects the material from the center to the center, and the inner screw collects the material from the center to both sides. transport, forming a convective mixing.

Working Method

BSR series ribbon mixer is mainly composed of mixing barrel, spiral ribbon and driven parts. The spiral ribbon consists of two layers. That is, the inner belt makes the material move outward, and the outer belt makes the material move inward, forming a good material circulation. The circular motion of the ribbon enables the mixer to achieve good mixing efficiency in a very short time. If you are looking for dry powder mixer, such as spice powder mixer, protein powder mixer, spice powder mixer, our BSR ribbon mixer is a very good choice.


ModelMax work volume(volume)Speed(rpm)Motor(kw)Overall size(mm)weight(Kg)
BSR-10060L762.21080(L)*758(W)*615(H)330
BSR-300180L6641550(L)*812(W)*1015(H)780
BSR--500300L665.51975(L)*1059(W)*1120(H)955
BSR-1000600L41112340(L)*1380(W)*1455(H)1400
BSR-20001200L3318.52480(L)*1651(W)*1805(H)2500
BSR-30001800L33222945(L)*1896(W)*1980(H)3300
BSR-40002400L29223038(L)*1946(W)*2205(H)3600
BSR-50003000L29303932(L)*2010(W)*2035(H)4620
BSR-60003600L26373938(L)*1882(W)*2246(H)5300
BSR-80004800L26453986(L)*2160(W)*2516(H)6800
BSR-100006000L19554500(L)*2270(W)*2667(H)8900
BSR-120007200L19554500(L)*2466(W)*2785(H)9520
BSR-150009000L17755363(L)*2470(W)*3020(H)9950
BSR-2000012000L17755670(L)*2650(W)*3497(H)11140


ribbon blender horizontal mixer
