Vibrating screen machine can be widely used in plastics, abrasives, chemical industry, medicine, building materials, food, carbon, fertilizer and other industries of granular materials, powder material screening and classification.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Working Method:

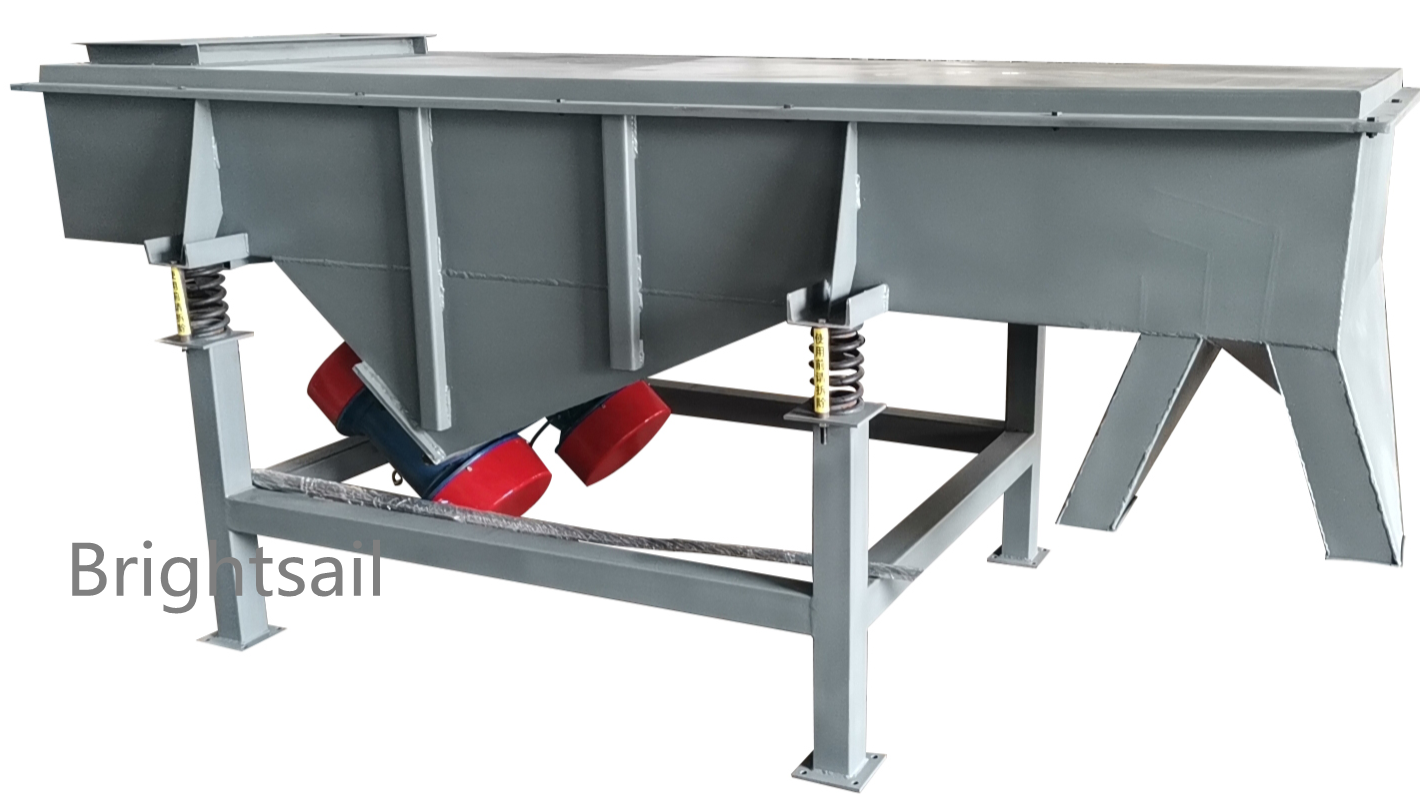

BSS series linear vibrating screen using electric vibrator as a vibration source, so that the material is thrown up on the screen, at the same time forward linear movement, in order to reasonably match the screen to achieve the purpose of screening. Material from the feeder evenly into the screen machine feed mouth, through the multi-layer screen to produce a number of products and unqualified screen, screen, respectively from their respective outlet discharge. It can be used to realize automatic operation in the assembly line. It has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance and fully enclosed structure without dust overflow and dispersion.
Technical Data：
| Model | BSS520-1 | BSS525-1 | BSS530-1 |
| Size（mm） | 500*2000 | 500*2500 | 500*3000 |
| Power（kw） | 2*0.55 | 2*0.55 | 2*0.75 |
| Effective Area（㎡） | 1 | 1.25 | 1.5 |
| Number of plies | 1-6 | ||
| Capacity（kg/h) | Depending on the size of the screen | ||
