The roasting machine is mainly used to produce puffed rice, corn,roast nuts, grains,spice and drying the granular materials.
This video shows us how this roasting machine line makes dried chili.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Introduction
The machine is highly automated, intelligent and environmentally friendly. The whole machine is made of stainless steel, which guarantees the hygiene and safety of the product and conforms to the GMP standard. Humanized design, intelligent control, convenient and quick parameter setting. The highest temperature can reach 400℃. With self-diagnosis function, the fault code is displayed on the display. The heating temperature should be above 215°C. Put the rice into the roaster and take it out of the roaster after 5 seconds. You will get puffed rice.
Working Method

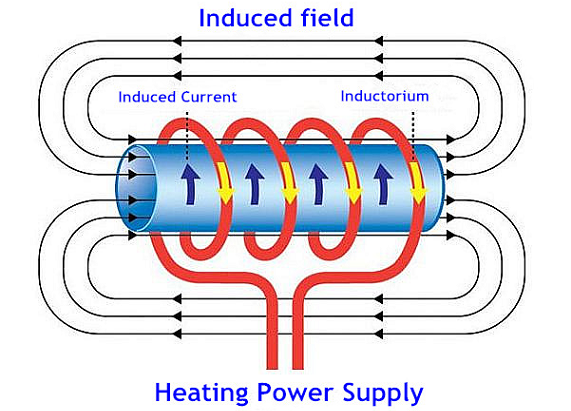

Electromagnetic heating system: The electromagnetic control box causes the copper wire plate to generate a magnetic field. When the roller rotates, the magnetic induction line is cut off and a wave is generated to affect the metal roller and make the metal roller self-heat.
When the copper wire board is under the roll, the wire board is cold, and the equipment does not generate heat.
Main Features
1. Environmental Protection: Electromagnetic conversion into thermal processing materials, carbon-free Environmental Protection.
2. Energy saving, low power consumption: Baking machine with composite roller, reduce energy loss. Thermal efficiency 95% , power saving 45% .
3. Save Electricity and time: Using electromagnetic heating system, Roller self-heating.
4. Save Electricity and time: Using electromagnetic heating system, roller self-heating, no heating medium. Working for 30 seconds, the temperature can reach 100 degrees Celsius.
5. Humanized interface: humanized design, intelligent control. Easy to set parameters.
BSCL 7-60 roasting machine line:
| Model | BSCL 7-60 | Elevator | Vibrating screen | Cooling machine |
| Capacity | 300-500 KG/H | 300-500 KG/H | 300-500 KG/H | 300-500 KG/H |
| Heat power | 155-120 kw | / | / | / |
| Motor power | 3 kw | 400w+20w | 0.37kw+0.37kw | 0.4kw+0.12kw*4 |
| Overall size | 6500x1010x1600mm | 1750*970*2150mm | 1450*800*1510mm | 6100*700*560mm |
| Roller size | 700X6000 mm | / | / | / |
| Voltage | 380V/50HZ | 220V | 220V/380V | 220V |
BSCL7-80 roasting machine line:
| Model | BSCL 7-80 | Elevator | Vibrating screen | Cooling machine |
| Capacity | 500-800 KG/H | 500-800 KG/H | 500-800 KG/H | 500-800 KG/H |
| Heat power | 20-180 kw | / | / | / |
| Motor power | 3 kw | 400w+20w | 0.37kw+0.37kw | 0.4kw+0.12kw*4 |
| Overall size | 8500x1010x1600mm | 1750*970*2150mm | 1450*800*1510mm | 6100*700*560mm |
| Roller size | 700X8000 mm | / | / | / |
| Voltage | 380V/50HZ | 220V | 220V/380V | 220V |
