mushroom powder making machine mushroom powder grinding mill from BRIGHTSAIL

mushroom powder making machine mushroom powder grinding mill from BRIGHTSAIL

This is our mushroom processing test on BSO hot air circulation machine,BSC coarse crusher and BSP ultrafine pulverizer.for making fine powder from fresh mushroom.

Our BSP air classifier mill can be widely used in industries of chemical,medical,foodstuff...Its final powder can reach about 60~2500mesh,for making superfine powder,it is good!


SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry

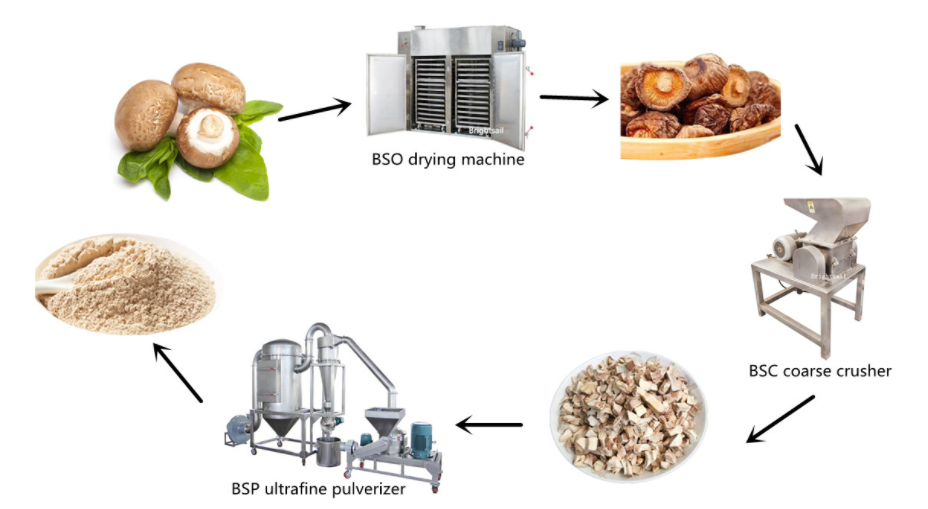

To make mushroom powder, we will need mushroom dryer, mushroom crusher, mushroom powder grinder machines.

And we can provide the complete mushroom powder making machines,and different type mushroom powder grinding mills.

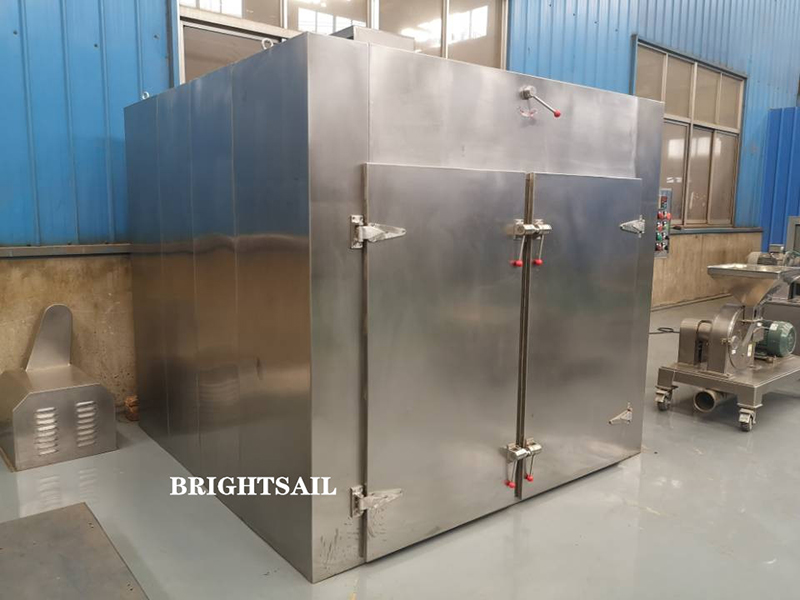

BSO drying machine:(mushroom dryer)

This food dryer is a multi-functional drying device, which mainly circulates the forced hot air heated by the electric heating tube or the steam heat exchanger in the box to enhance heat transfer and achieve the effect of drying materials.

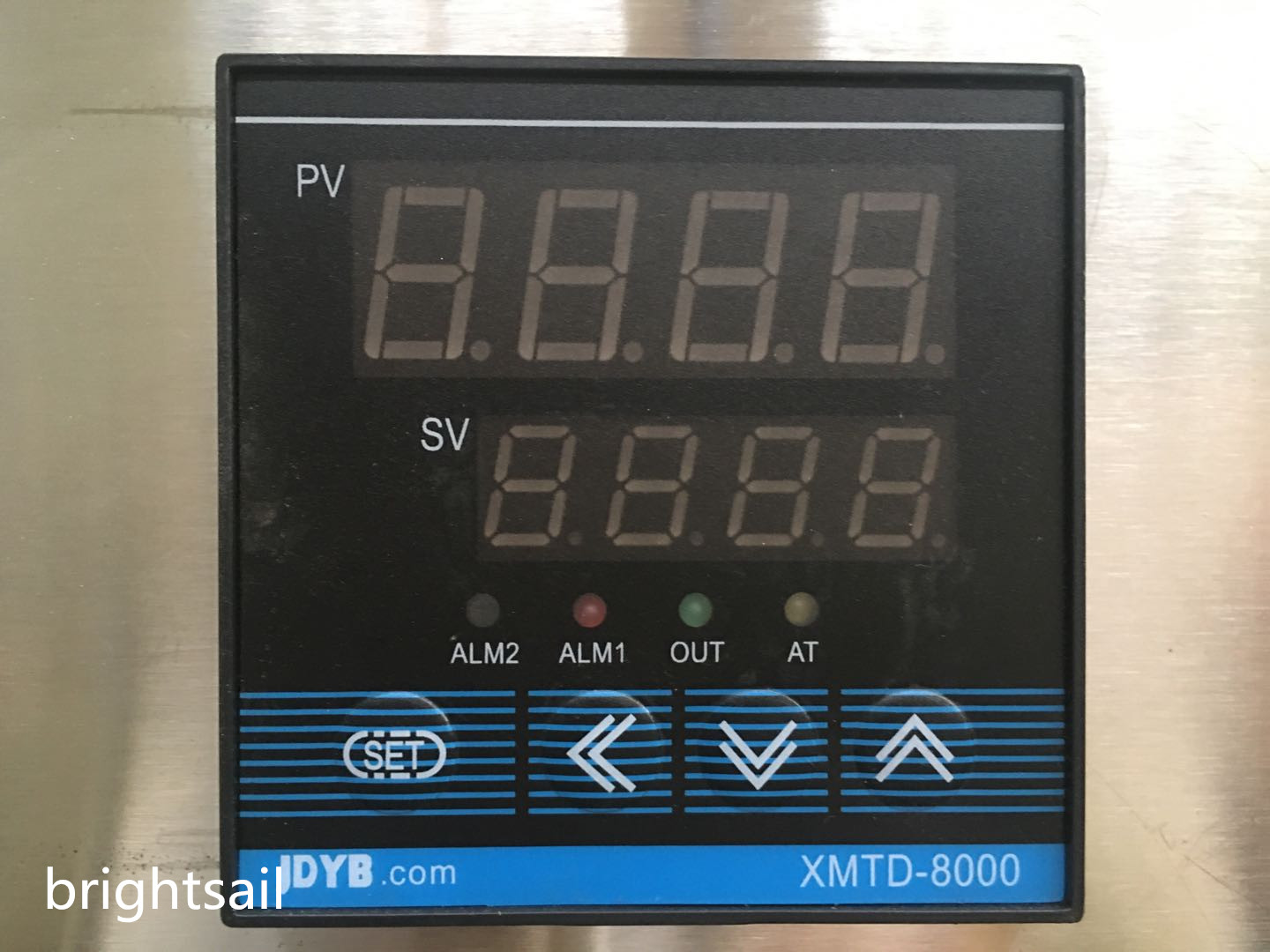

The hot air circulation drying oven is equipped with low noise, high temperature resistant axial flow fan and automatic temperature control system.

The whole circulation system is fully sealed, which improves the thermal efficiency.

 It is an energy-saving product that improves economic efficiency for many manufacturers.



Working Method

The basic principle of the BSO series hot air circulation drying box is to use steam or electricity as heat energy, through the steam radiator or electric heating elements to generate heat.

The Fan carries on the convection heat exchange, transfers the heat to the material, and continuously adds the fresh air to the oven to discharge the moisture.

When dry, should maintain appropriate relative temperature and humidity.

The most important feature is that most of the hot air circulates in the drying chamber, thus enhancing heat and mass transfer and saving energy.



ModelBSO-OBSO-IBSO-IIBSO-IIIBSO-IV
Dry amount each (kg/batch)~60~120~240~360~ 500
Temperature (℃)20 ~160 (adjustable)
Axial Fan (KW)0.45  * 1piece0.45 * 1 piece0.45* 2 pieces0.45* 3 pieces0.45  * 4 pieces
Heat dispelling area (m³)15244880100
Steam consumption (kg/hr)1520406080
Electric-heating power (KW)915304560
Down temp (℃)±2
Tray cart quantity (set)12468
Tray (piece)244896144192
Tray size640*460*45mm*δ0.5mm (punching:3mm)
Overall size (L*W*H)(mm)1400*1200*20002300*1200*20002300*2200*20003200*2200*20004280*2200*2000
Weight(kg)8201580180021002800
MaterialStainless steel 304

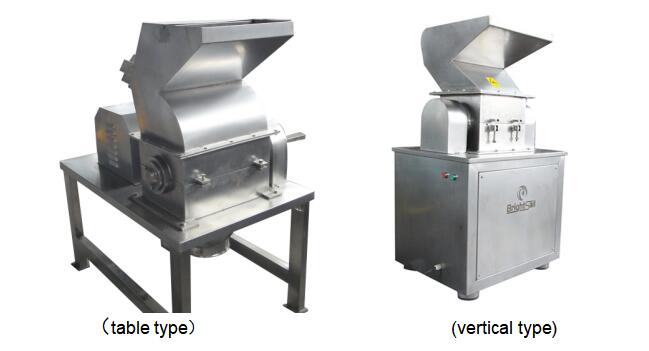

BSC coarse crusher: (dried mushroom crusher)



Advantages:

Designed according to GMP standard and wholly made of stainless steel, this machine has such advantages:

1.Simple structure
2.Convenient cleaning
3.Low noise

4.Being the ideal equipment for coarse crushing


Working Method:

This machine is horizontal broken structure. The material enters the crushing chamber through the hopper, is crushed under the shearing and impact of the fixed knife and the rotary knife, and automatically flows into and out of the outlet under the action of the Rotary Centrifugal Force. Designed according to GMP standard, the machine is made of stainless steel with simple structure, convenient cleaning and low noise. It is an ideal equipment for coarse grinding.



ModelBSC-200BSC-300BSC-400BSC-600
Capacity(kg/h)80-300100-800200-1000500-1500
Size of input granules (mm)<100<100<100<100
Crushing Fineness(mm)0.5-200.5-200.5-200.5-20
Speed of principal axis(rpm)960960960960
Motor power(KW)35.57.511
Overall Size(L*W*H) (mm)(Type B)900*600*1140900*700*1440900*800*14401000*900*1440
Weight(Kg)200300380500



BSP ultrafine pulverizer: (mushroom powder grinding mill)

Working Method:

  1. The raw materials are sent to the grinding chamber by the screw feeder through the hopper, cut and cut by the high-speed cutting machine, and then sent to the cyclone separator and the bag filter by the way of negative pressure. That’s why it makes ultrafine powder.


  2. Advantages of our mushroom powder grinder machine:

  3. 1. The design is compact and structure is reasonable. The material is equipped with an internal classification mechanism so that grinding and classification are carried out simultaneously, thus reducing energy consupmtion.

2. Equipped with a blower, which dissipates the heat in the machine 3. Having a great adaptability and narrow granularity distribution. The granularity of the product is even and fineness may reach 80-320 mesh.

3. Regulate the speed of the classifier or amount of the air without stopping the machine and evenly distributed products of the required granularity will be obtained.

4. The top cover of the main machine is opened with pneumatic springs and the body is constructed in such a way that it may be opened to two sides so that no hindrance will be met in cleaning and servicing the internal parts.

5. The main grinding parts are made of high-grade alloy tool steel so that the service life or change cycle of the wear parts is greatly lengthened.

6.  High-speed precision bearings imported from abroad are adopted for the bearing system so that the whole machine runs smoothly with little vibration and noise.

7.  The pipes are of quick-detachment construction, making detachment and cleaning quick and convenient.

8. Equipped with a cyclone separator and a collector, so there is no powder flying during production. The dust collecting bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environmental protection in waste gas discharge.

9. The fine powder collected by the dust collecting bag can be effectively recycled. Thus the material loss is reduced.


ModelBSP-350BSP-450BSP-500BSP-750
Capacity(kg/h)20-20040-50060-800120-1800
Input size(mm)< 15< 15< 15< 15
Powder fineness(mesh)60-250060-250060-250060-2500
Crush motor(kw)7.5/1115/18.522/30/3745/75
Grade motor(kw)1.12.27.511
Blower(kw)5.57.518.537
Feed motor(kw)0.370.750.751.1
Discharge motor(kw)0.750.750.751.1
Speed of principle axis (rpm)-6500-5600-4400-3100
Grading impeller speed(rpm)4000400035003000
Overall size(L*W*H)(mm)5000×1400×28005400×1500×29006600×2000×36009800×2700×4900
Weight(kg)1600180023003100


mushroom powder making machine mushroom powder grinding mill mushroom powder grinder machine
