This is our recently completed BS series small hammer mill,it is going to be sent to Sri Lanka.
This type of grinder machine with high rotary grinding speed,fetures simple structure,easty installation,stable running,convenient moving,low noise,high grinding efficiency and so on.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Introduction
Our BS series high-speed small hammer mill can be widely used in medicine, chemical industry, food and other industries. For the grinding of spices, it has a good grinding effect. Most Spice Powders can reach 30 ~ 40 mesh. In addition to spices, it can also be used to grind dry leaves, chickpeas, sugar and many other materials.
Advantages
1. Simple Construction
2. Easy to install.
3. Stable Operation
4. Easy to move.
5. Low Noise
6. High grinding efficiency
7. Fine powder can be made at high rotating speed.
Working Method

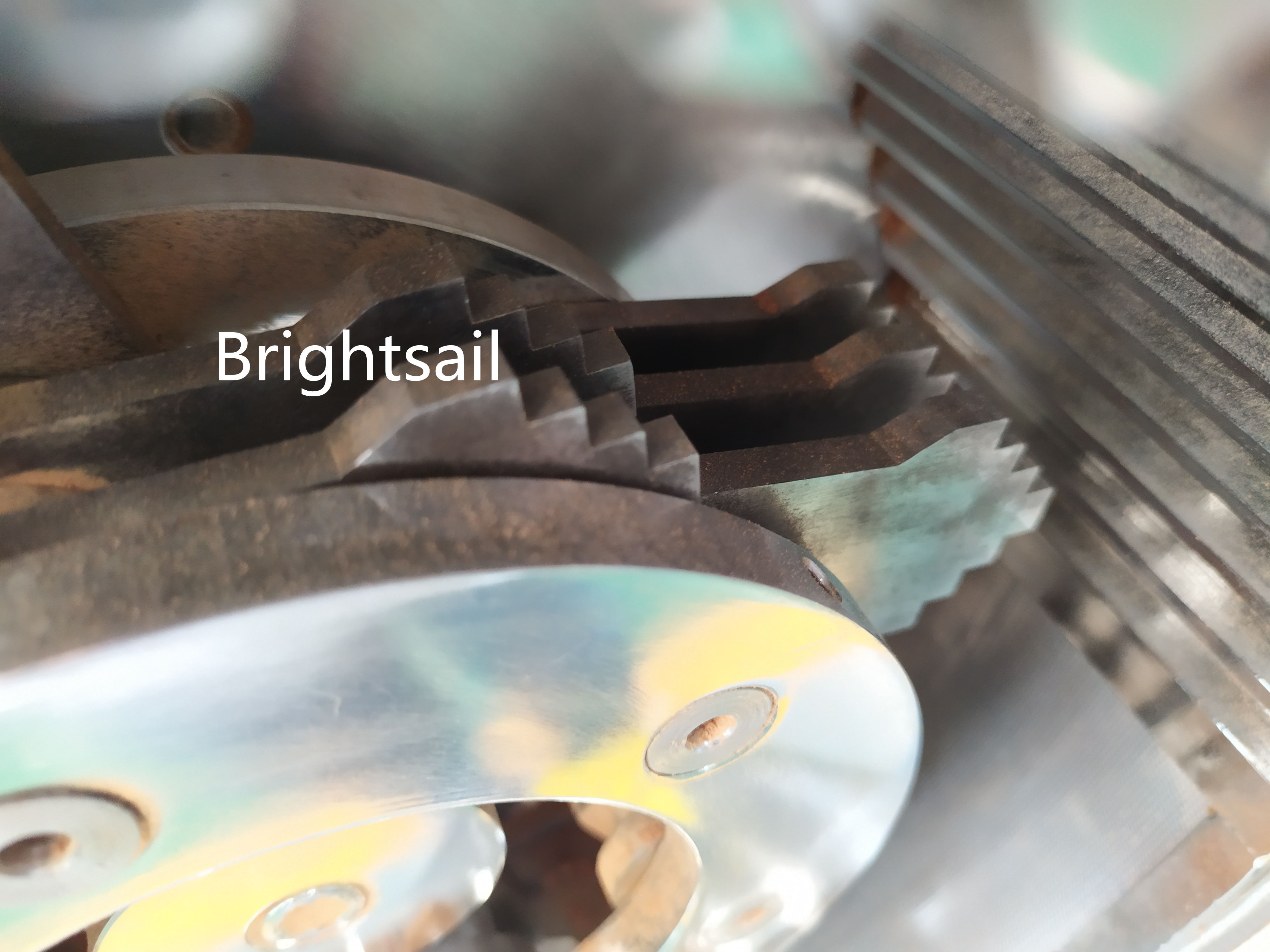

The target material is crushed by cutting and grinding with a high-speed knife. The knife type can be selected according to different materials and particle size.
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size (mm) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) |
| Grind fineness (mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/hr) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter（mm） | 200 | 270 | 330 | 380 |
| Rotor speed (rpm) | 5900/8600 | 4200/6200 | 2600~5100 | 2200~4400 |
| Motor (kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size (mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Why Choose Us:
Within years, we have exported machine to over 70 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
Packing And Shipping:

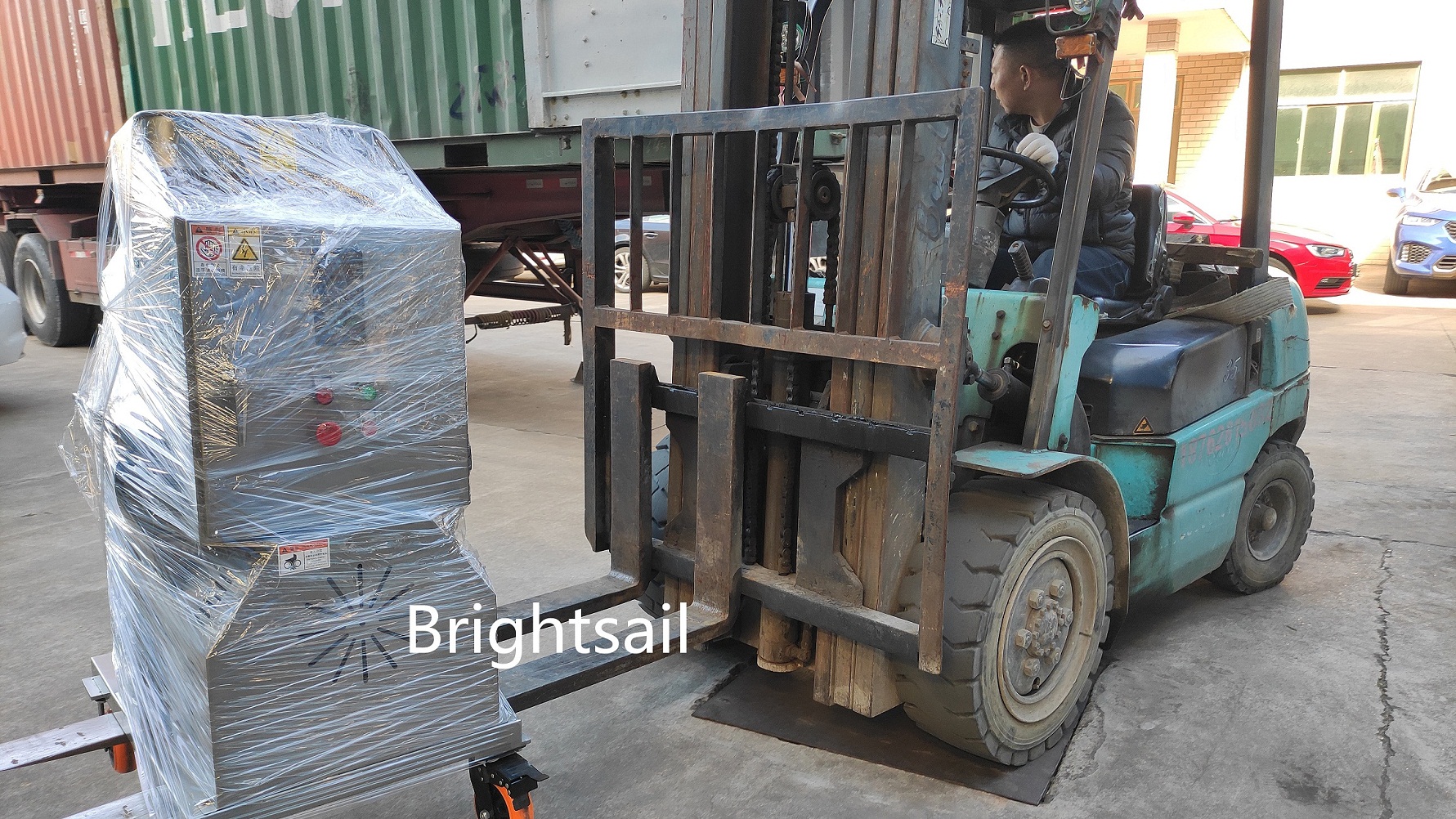

*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.
*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
