This is BSXR Industrial Metal Detector,it is mainly used to detect and separate metal like stainless steel,Fe and other mterials from powder and granules.
In this video,you can see how this machine works.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782Introduction of our Industrial Metal Detector

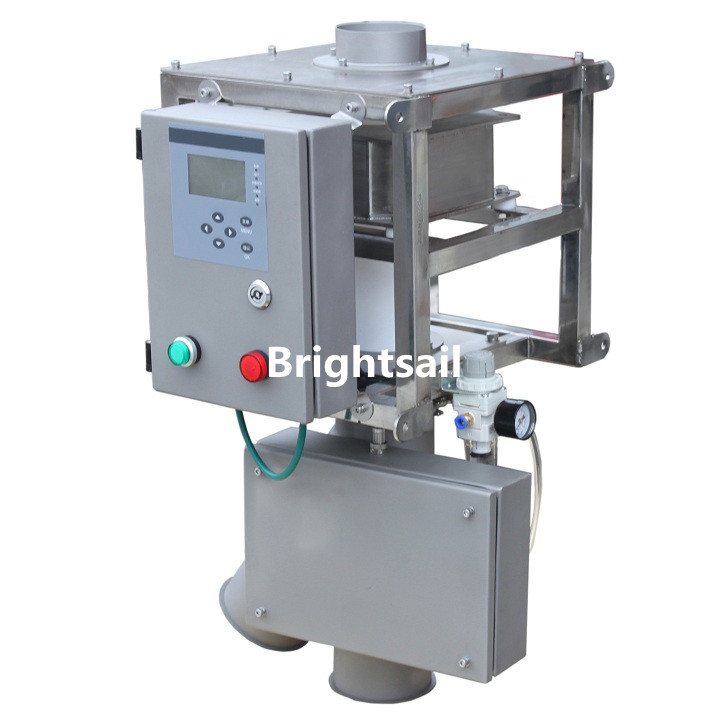

BSXR series digital metal separator is specially designed for the high-precision requirements of food and health products industry.
Manufactured by German technology, it has high sensitivity, stable and reliable performance, and can quickly eliminate metal foreign matters in products.
Features of our Metal Detector For Food Industry
1. It has unique accuracy and can detect small metal objects in products;
2. It can handle multiple categories of products. In order to save space, a more compact rack design is adopted;
3. The detection sensitivity is higher than the industry standard, and the highest iron ball with diameter greater than 0.3mm can be detected;
4. The sensitivity can be adjusted according to the product characteristics, the detection and rejection times can be recorded in real time, and the records can be cleared manually;
5. All stainless steel, waterproof (IP66), anti vibration, strong adaptability to environmental and temperature changes and easy to clean;
6. The whole machine adopts modular design and assembly, with simple assembly, commissioning and disassembly, convenient maintenance and low maintenance cost;

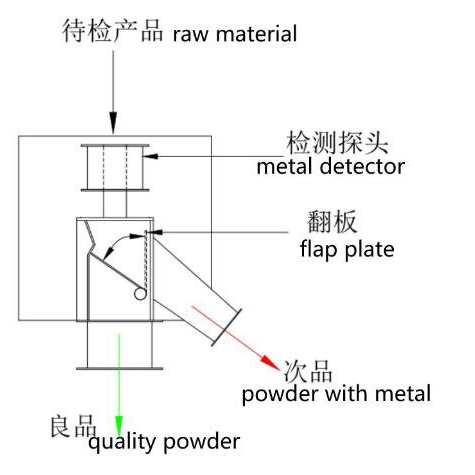

7. "Y" type material rejection specially designed for powder products can effectively prevent material leakage and reduce product waste;
8. Waterproof, dustproof, shockproof and explosion-proof can be customized according to the environmental and safety requirements of the production site to ensure the safe use of the equipment;
9. Multi language function selection (Chinese, English, Japanese, etc., other languages can be customized as needed).
Technical data of BSXR Metal Detector For Food Industry
Model | BSXR-3500-50B | BSXR-3500-70B | BSXR-3500-100B | BSXR-3500-120B | BSXR-3500-150B | BSXR-3500-200B | BSXR-3500-250B | |
Feed diameter(Фmm) | 50 | 70 | 100 | 120 | 150 | 200 | 250 | |
Accuracy | FeΦ | 0.3mm | 0.7mm | 0.8mm | 1.2mm | 1.5mm | 1.8mm | 2.5mm |
SUSΦ | 0.6mm | 1.0mm | 1.2mm | 1.5mm | 2.0mm | 2.2mm | 3.8mm | |
Other Metal | 0.3~0.6 mm | 0.7~1.0 mm | 0.8~1.2 mm | 1.2~1.5 mm | 1.5~2.0 mm | 1.8~~2.2 mm | 2.5~~3.8 mm | |
Compressed air | 3~5Bar | |||||||
Max capacity(L/h) | 2000 | 5000 | 12000 | 16000 | 25000 | 44000 | 50000 | |
Raw material temperature | < 80℃ | |||||||
Unqualified material discharge time | 0.3~5s |
