This is our carob grinding test on 2 types of machines.Firstly,we used BS series carob processing machine to separate carob into pod and seeds.Secondly,grind carob pulp into powder by BSP air classifier mill.
This BS series carob processing machine can effectively separates the seeds and allows us carob pulp.
BSP air classifier mill can help us to grind carob pulp into fine powder.Final powder of this grinder can reach about 60-2500mesh,it's good at making superfine powder.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782

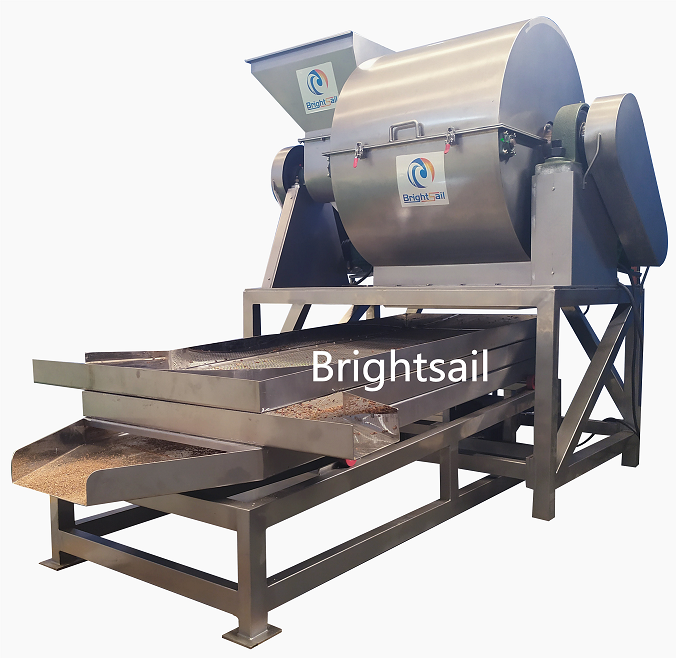

About BS carob processing machine
Our BS series Carob clip seed removing machine can effectively separate carob clip meat and seed, effectively reduce material loss.

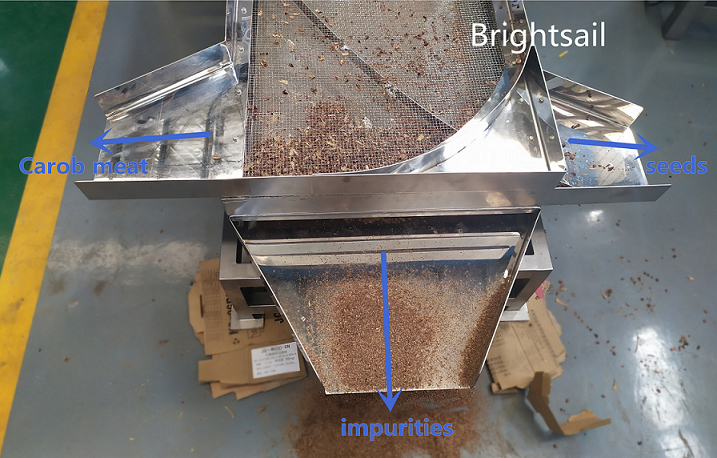

The complete carob clip size is larger, after the machine crushing, get small size carob clip meat and seeds, through the mesh sieve vibration will be seed vibration to other mesh sieve, other small impurities are vibration to the bottom and out.
Advantages:
1. 99% of seeds can be removed
2. 300 ~ 500 kg/hour
3. large capacity
4. Compact size
5. Simple controls
6. Simple maintenance
7. Easy to use and install
Technical Data:
| Machine name | BS carob seeds remove machine |
| Crusher motor | 5.5 KW |
| Sift motor | 1.5 KW |
| capacity | 300~500 kg/hr |
| Material | Crusher part s body is made by carbon steel, and covered by stainless steel 304 shell, Sifting part is made by stainless steel 304, Electrical box material: stainless steel 304. |

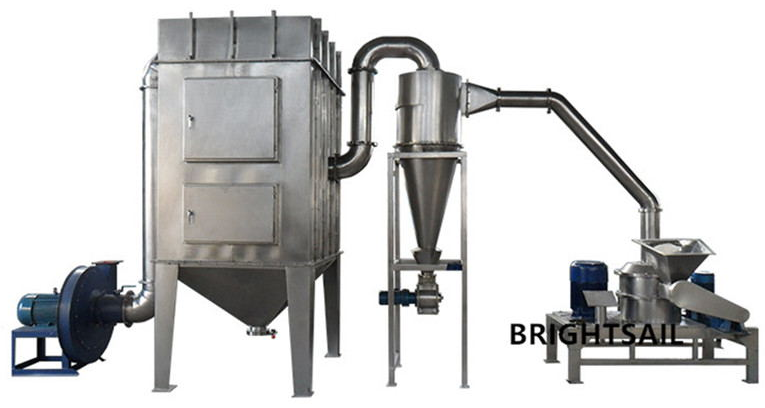

About BSP air classifier mill
Advantages:
1. Compact design and reasonable structure. There is a grading mechanism inside the material, which can crush and grade at the same time to reduce energy consumption.
2. The machine is equipped with a fan for continuous heat dissipation, which is suitable for grinding heat sensitive materials.
3. The main grinding parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of wear parts.
4. The bearing system adopts high-speed precision bearings imported from abroad, with stable operation, low vibration and noise.
5. It adopts a rapid pipe removal structure, which is convenient and fast for pipe removal and cleaning.
6. Equipped with cyclone separator and dust collector, there is no dust flying in the production process. The dust collection bag can effectively collect the fine powder in the air flow to meet the clean and environmental protection requirements of waste gas emission.
7. The fine powder collected by the dust bag can be effectively recycled. Thus, the material loss is reduced.
Working Method:
The raw material is fed into the grinding cavity by the screw feeder through the hopper, and after being cut and sheared by the high-speed cutting machine, it is fed into the cyclone separator and the bag filter through the negative pressure suction method, and the discharge meets the product requirements. This is why it can be made into superfine powder and can be used as a fine powder machine (fine powder machine).
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Input size(mm) | < 15 | < 15 | < 15 | < 15 |
| Powder fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Crush motor(kw) | 7.5/11 | 15/18.5 | 22/30/37 | 45/75 |
| Grade motor(kw) | 1.1 | 2.2 | 7.5 | 11 |
| Blower(kw) | 5.5 | 7.5 | 18.5 | 37 |
| Feed motor(kw) | 0.37 | 0.75 | 0.75 | 1.1 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 |
| Speed of principle axis (rpm) | -6500 | -5600 | -4400 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Overall size(L*W*H)(mm) | 5000×1400×2800 | 5400×1500×2900 | 6600×2000×3600 | 9800×2700×4900 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
