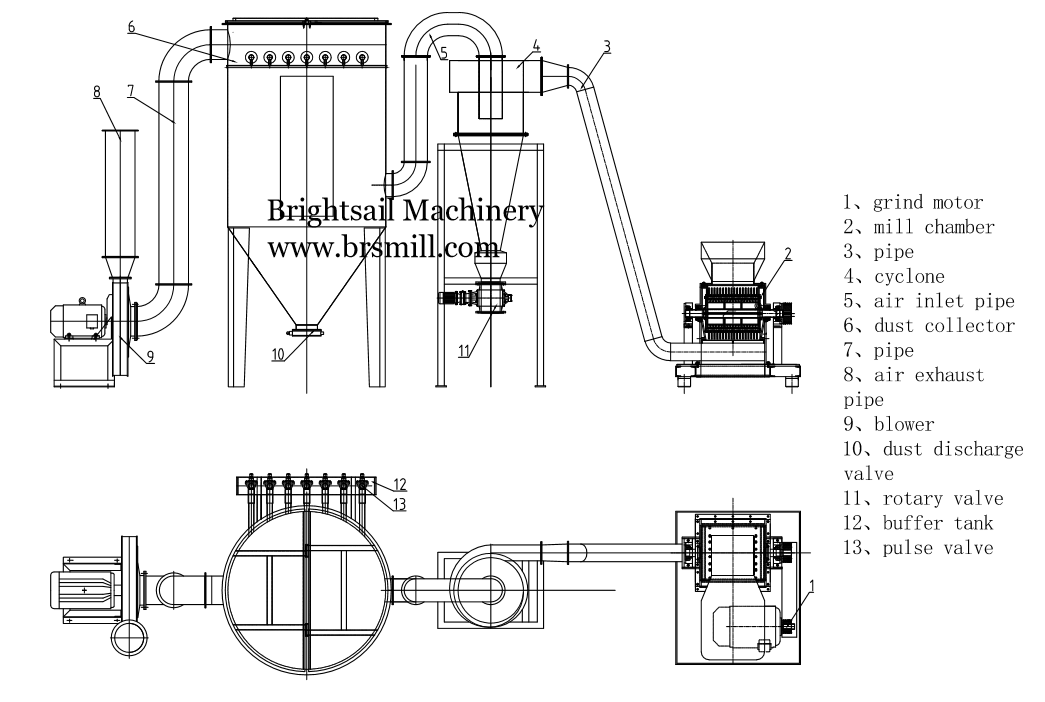

The machine is made up of crusher part,cyclone,dust collecting box, blower and control box.
It uses fixed plate and the relative motion between the activity hammer, making materials impacted and shredded under effect of centrifugal force.
It can grind spice and oil material with oil content reach 10%-20%.
The temperature of the grinding chamber remains normal even though after continuous working, so color and smell of material won’t be changed after being ground.
|Speed of principal axis(rpm)||2950||2500|
|Grinding fineness (mesh)||12-120||12-120||12-120||12-120|
|Main crush motor(KW)||22||37||45||55|
|Overall size (L*W*H)（mm）||5400*1300*2700||6800*1300*2700||7800*1800*3200||8800*2000*3300|
