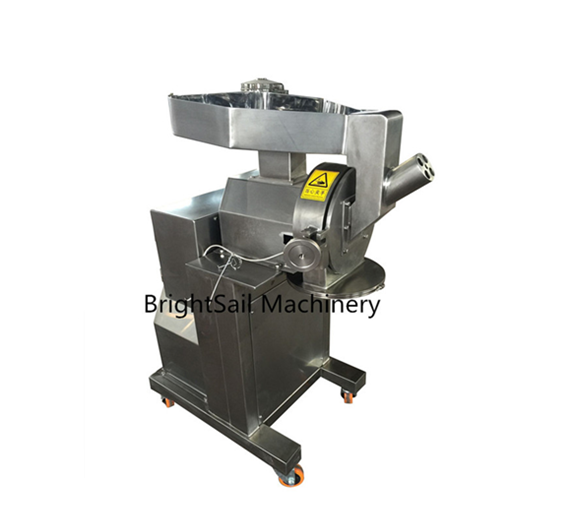

This is our BS series small hammer mill with high speed rotating speed. It can be widely applied in industries of medical, chemical, foodstuff etc. For spice grinding, it has a good grinding effect, most spice powder can reach 30~40mesh. Except spice, it also can be used to grind dry leaf, chickpeas, sugar and many other materials.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Working Method
Target material is smashed by the cutting and grinding of high speed knives. Knife of type can be selected according to different material and size of granules.
Advantages
1. Simple structure
2. Easy installation
3. Stable running
4. Convenient moving
5. Low noise
6. High grinding efficiency
7. High rotate speed,so it can make fine powder.
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size (mm) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) |
| Grind fineness (mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/hr) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter（mm） | 200 | 270 | 330 | 380 |
| Rotor speed (rpm) | 5900/8600 | 4200/6200 | 2600~5100 | 2200~4400 |
| Motor (kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size (mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
