Our BSPM series powder packing machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar,coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Introduction

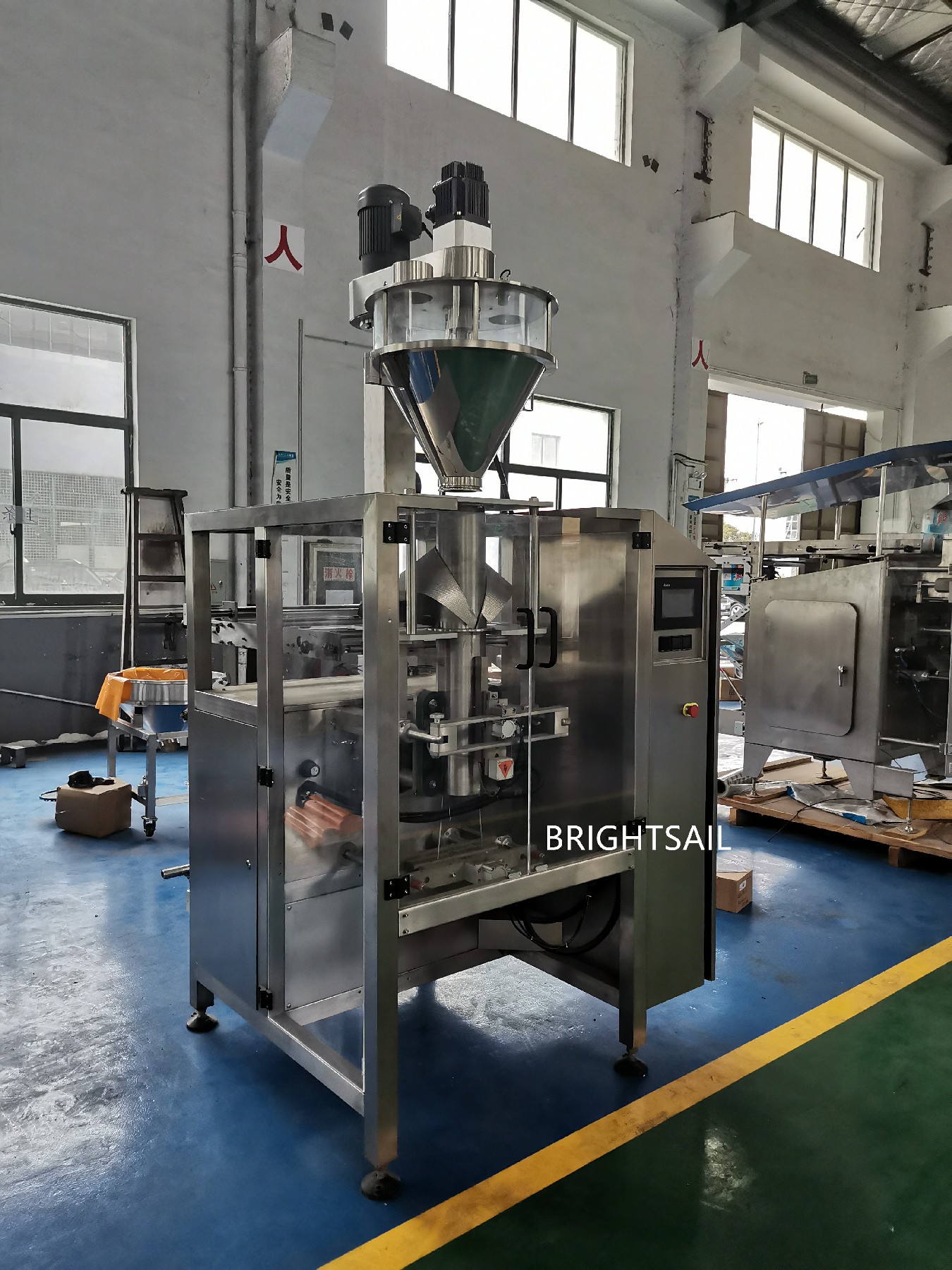

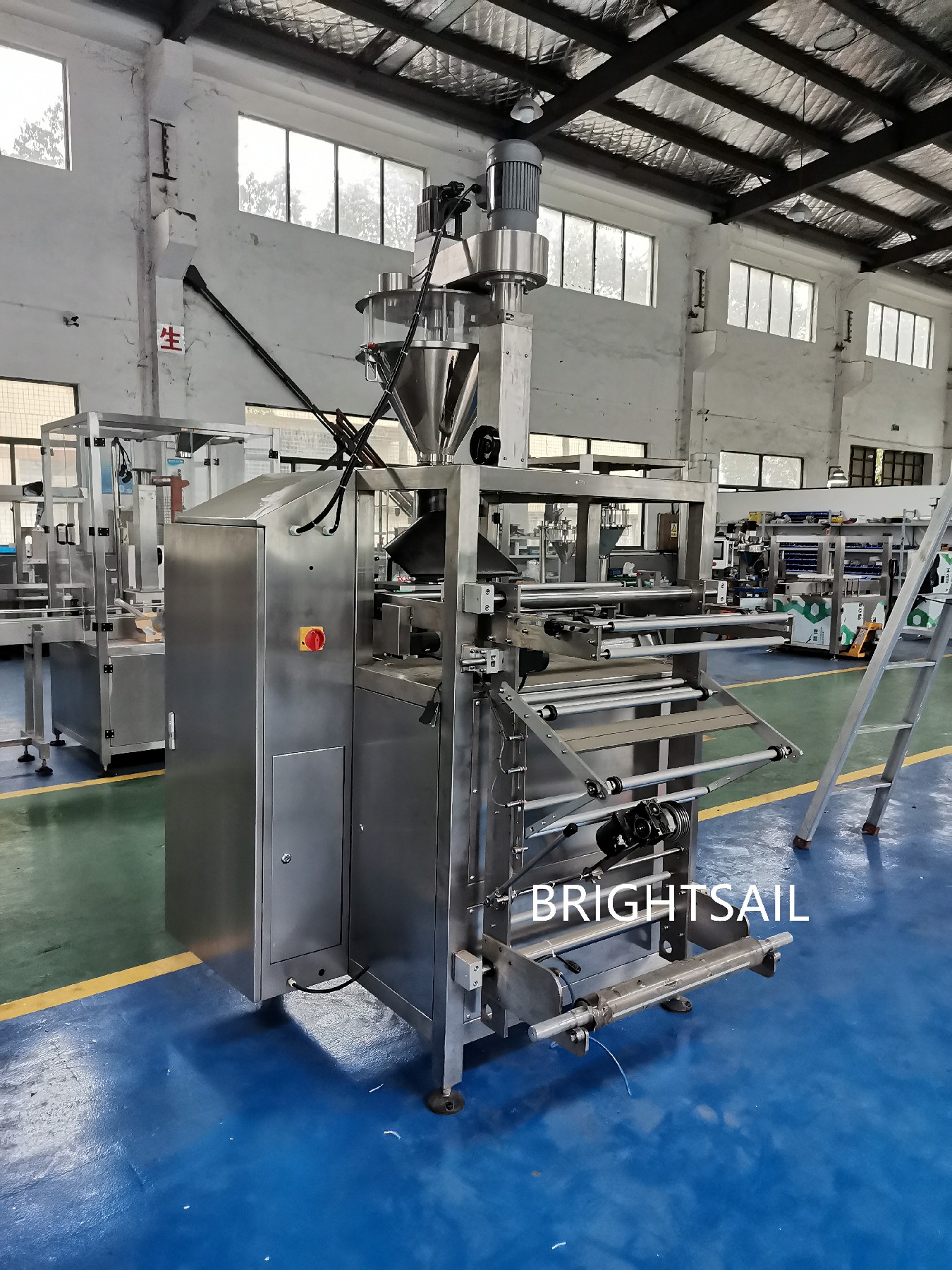

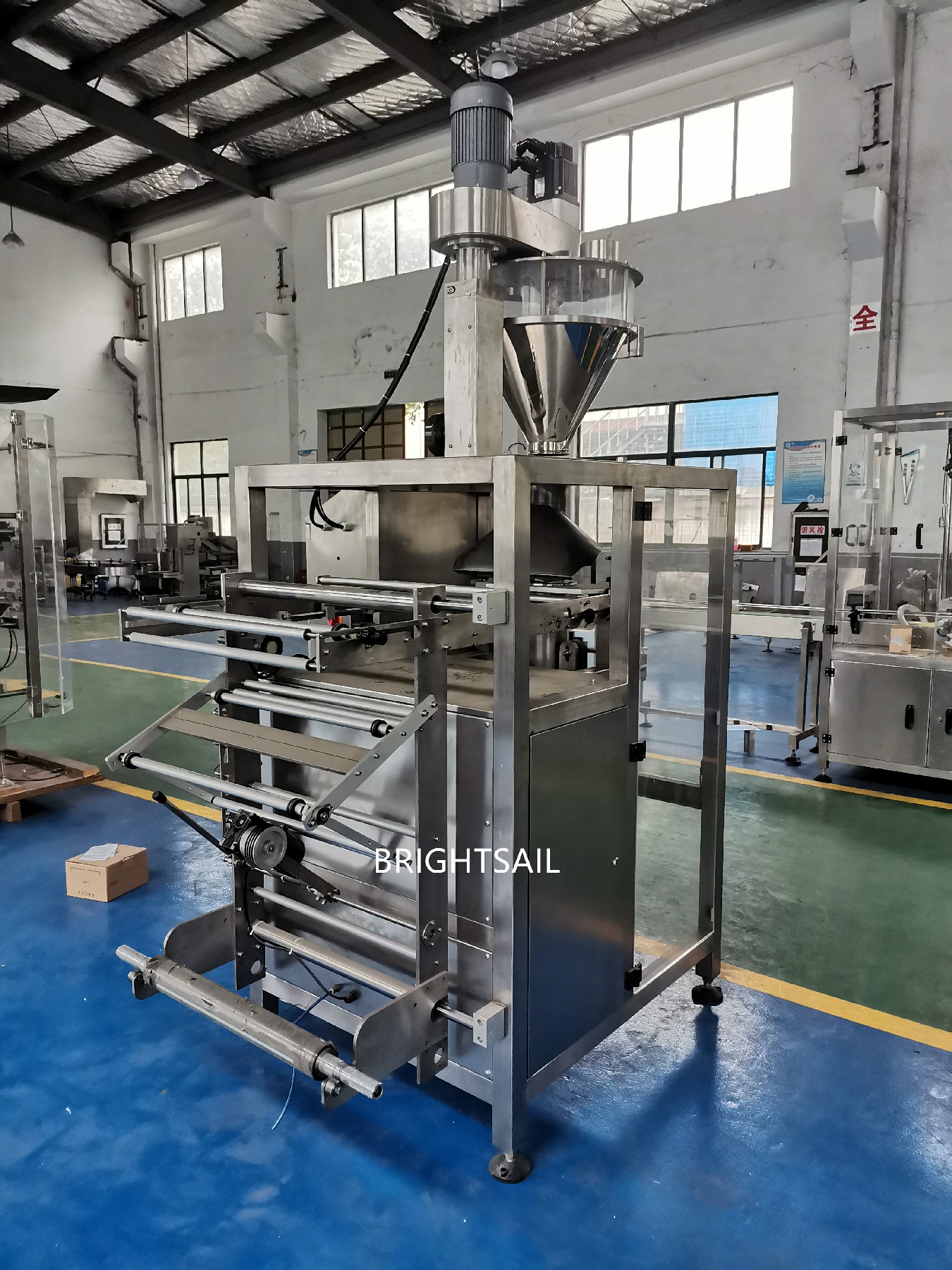

Our automatic powder packing machine mainly includes screw scale and BSPM vertical packing machine.
BSPM powder packing machine uses PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine's control precision ,reliability and intelligentized level.
Main Usage
This system can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar,coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
Advantages
1. Equipped with safety protection, comply with firm' s safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine' s control precision, reliability and intelligentized level.
4. Touch screen can store the technical parameters of various kinds of products, it is unnecessary to reset while products changing.
5. With error indicating system, which help to handle the trouble immediately.
6. Make pillow bags and hanging bags in terms of customers' different requirements.
Screw Scale （it is suitable for powder）
| Model | 25L | 50L | 70 L |
| Hopper size | 25L | 50L | 70L |
| Metering weight | 10~500g | 10~2000g | 10~5000g |
| Measurement accuracy | ≤±0.5%~1% | ≤±0.5%~1% | ≤±0.5%~1% |
| Metering speed | 30~45times/min | 10~45 times/min | 5~45 times/min |
| Power | 1.6 KW | 2.5 KW | 3.5 KW |
| Weight | 250 KG | 280 KG | 280 KG |
BSPM vertical automatic packing machine
| Models | BSPM-320 | BSPM-420 | BSPM-520 | BSPM-620 | BSPM-720 | BSPM-820 |
| Bag size(mm) | W:50-150 | W:80-200 | W:100-250 | W:120-300 | W:150-350 | W:200-400 |
| L:50-200 | L:80-250 | L:100-300 | L:120-350 | L:150-400 | L:200-450 | |
| Bag Shape | Back Seal | |||||
| Power(kw) | 2.5 | 3.5 | ||||
| Packaging weight range (powder) (g) | ≤200 | ≤500 | ≤1500 | ≤3000 | ≤4000 | ≤6000 |
| Packing speed (bag /min) | 25-60 (according to material characteristics and packing weight) | |||||
| Packaging Accuracy | ±1% (according to material characteristics and packing weight) | |||||
