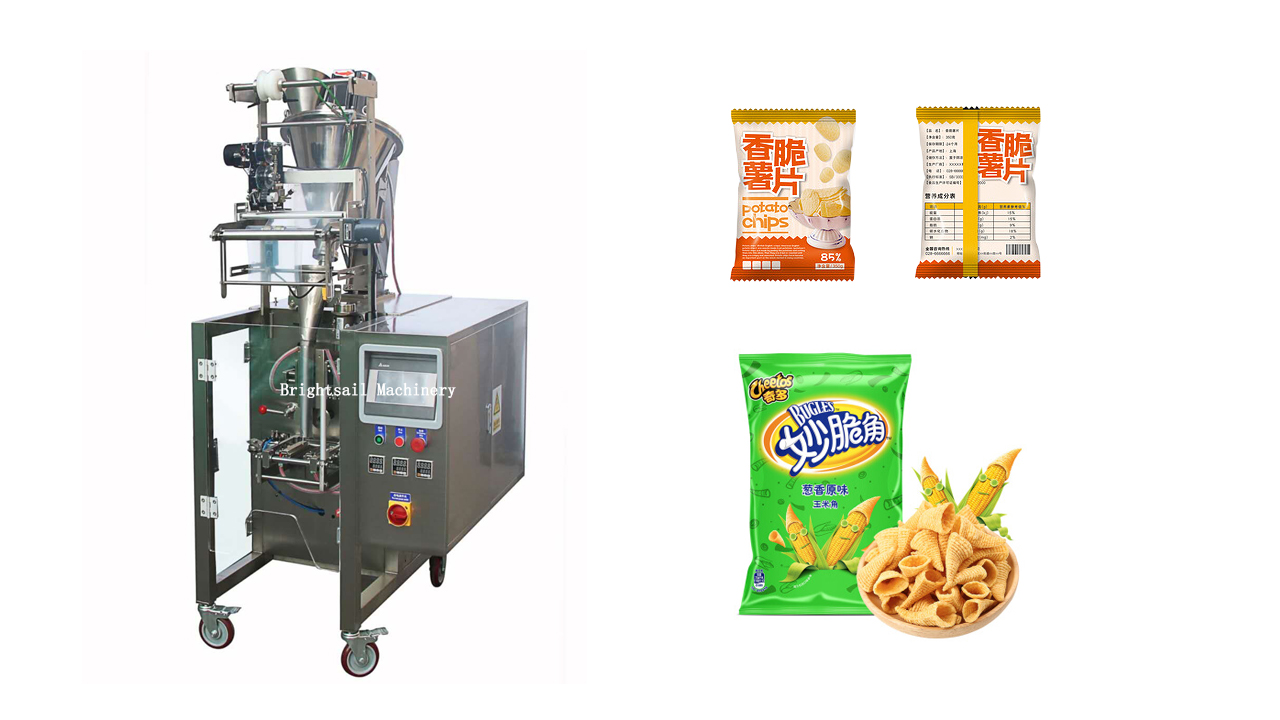

Automatic Snacks Packing Machine Vertical Filling Machine

Automatic Snacks Packing Machine Vertical Filling Machine

This is our BSPM-F series auto packing and filling machine.In this video,it is used for filling snacks.

This machine also can be used to pack and fill powder with 1~100g weighing range,like milk powder,milk tea powder,coffee powder...

SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry
Advantages

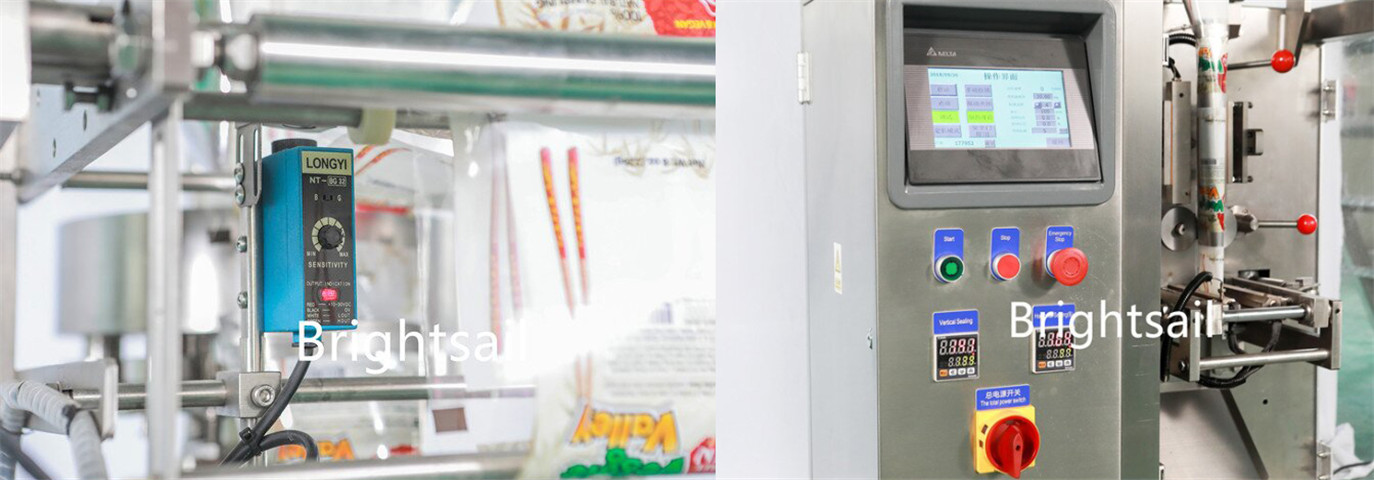

1. The machine is composed of filling equipment, feeding hopper, material column and electric control system.

2. Chinese and English operation instructions are displayed on the touch screen, which is convenient to operate.

3. Screw conveyor can be added to realize automatic feeding process.

4. The packaging machine is fully automatic and very convenient.

Product Introdcuction:

BSPM-F automatic packaging machine can complete the functions of bag making, weighing, filling, nitrogen filling, date coding, bag dividing and so on. It is suitable for the packaging of powdered and granular materials such as milk tea, monosodium glutamate, solid beverages, sugar, glucose, coffee, medicine, and powder additives.


Technical Data(for powder)

Model

BSPM-F

Biggest Film width

300 mm

Bag size

W:30-100mm L:30-165mm

Packing speed

35~65 packs/minute

Measure method

auger weighing

Sealing type

Three-side seal,Four-side seal,back side seal

Measure weight

1g ~100 g (when pack 2 g bag, accuracy is ±0.05g)

Power

1.5 kw

Power supply

1P/220V/50HZ (can be customized)

Machine size

1100*850*1800mm

Weight

220 kg


IF YOU HAVE MORE QUESTIONS,WRITE TO US
Just tell us your requirements, we can do more than you can imagine.
