This is our BS-20D tea bag packing machine.This machine is mainly used to pack herbal tea, fruit tea, original tea, coffee, traditional Chinese medicine tea, granules and so on.
In this video,you can see how this machine packs tea leaf into triangle bags.

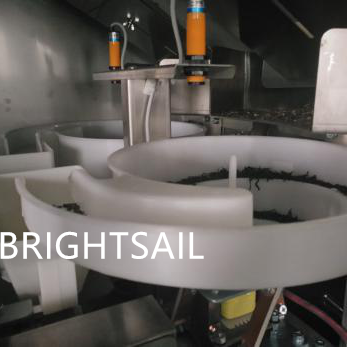

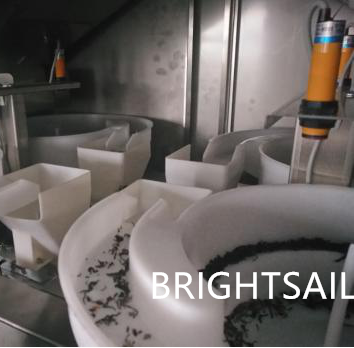

Quantitative weighing of tea, seeds, monosodium glutamate, feed, sesame and other daily foods, seasonings and other large and small particles, as well as strips and block materials.
1.Full computer touch screen control, man-machine interface, simple and convenient operation, simple product replacement, fault display system, convenient and quick maintenance.

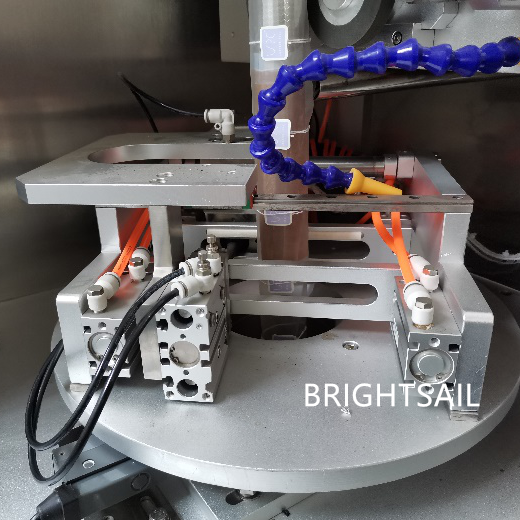

2. The movement of the film cutting turntable is controlled by a servo motor, and the running speed of the turntable can be adjusted at will on the touch screen.
3.The working time of moving parts such as trimming, turntable, cutter, etc. is precisely controlled by PLC, and the operating speed of the host can be adjusted at will on the touch screen.
4.It can automatically complete bag making, metering and blanking, and sealing.
5.With automatic alarm, if there is no label, the turntable is overtravel, the door is not closed, and there is no roll film (optional), etc.;
6.The advanced design ensures that the machine can adapt to the triangular pyramid and flat bag packaging of different kinds of materials. The main application examples: herbal tea, fruit tea, original tea, coffee, Chinese herbal tea, granules, etc. It is very convenient to adjust, operate and maintain during use. It can be used in conjunction with a variety of different metering equipment.
|Packed weight||1-20 g/bag|
|Bag paper requirements||Nylon, non - woven fabric, corn fiber and other ultrasonic sealing materials|
40 ~ 60 bags per minute
|Outer diameter of coil||≤Φ350㎜|
|Inner diameter of coil||Φ76㎜|
|Air pressure||≥ 0.6Mpa|
