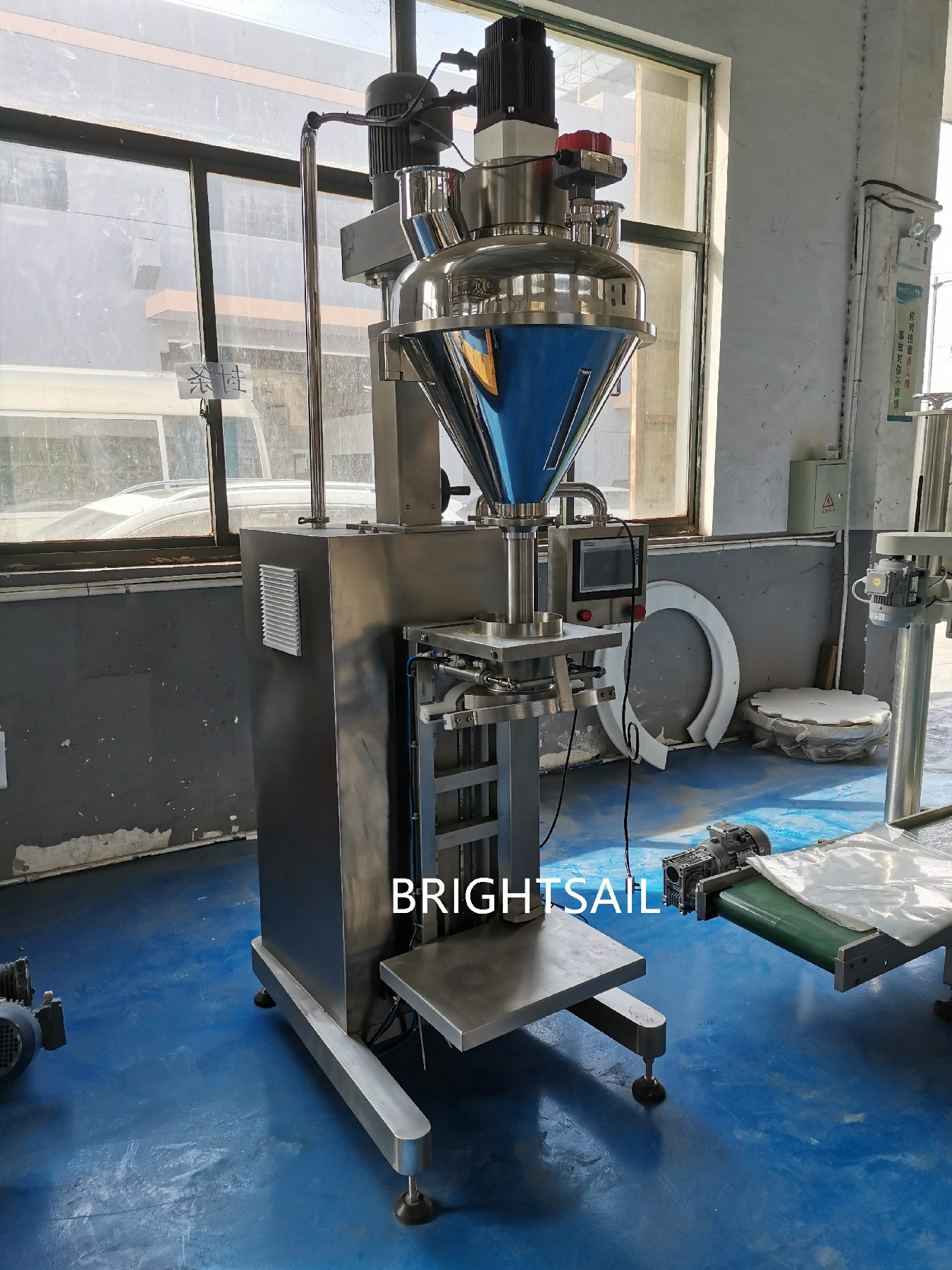

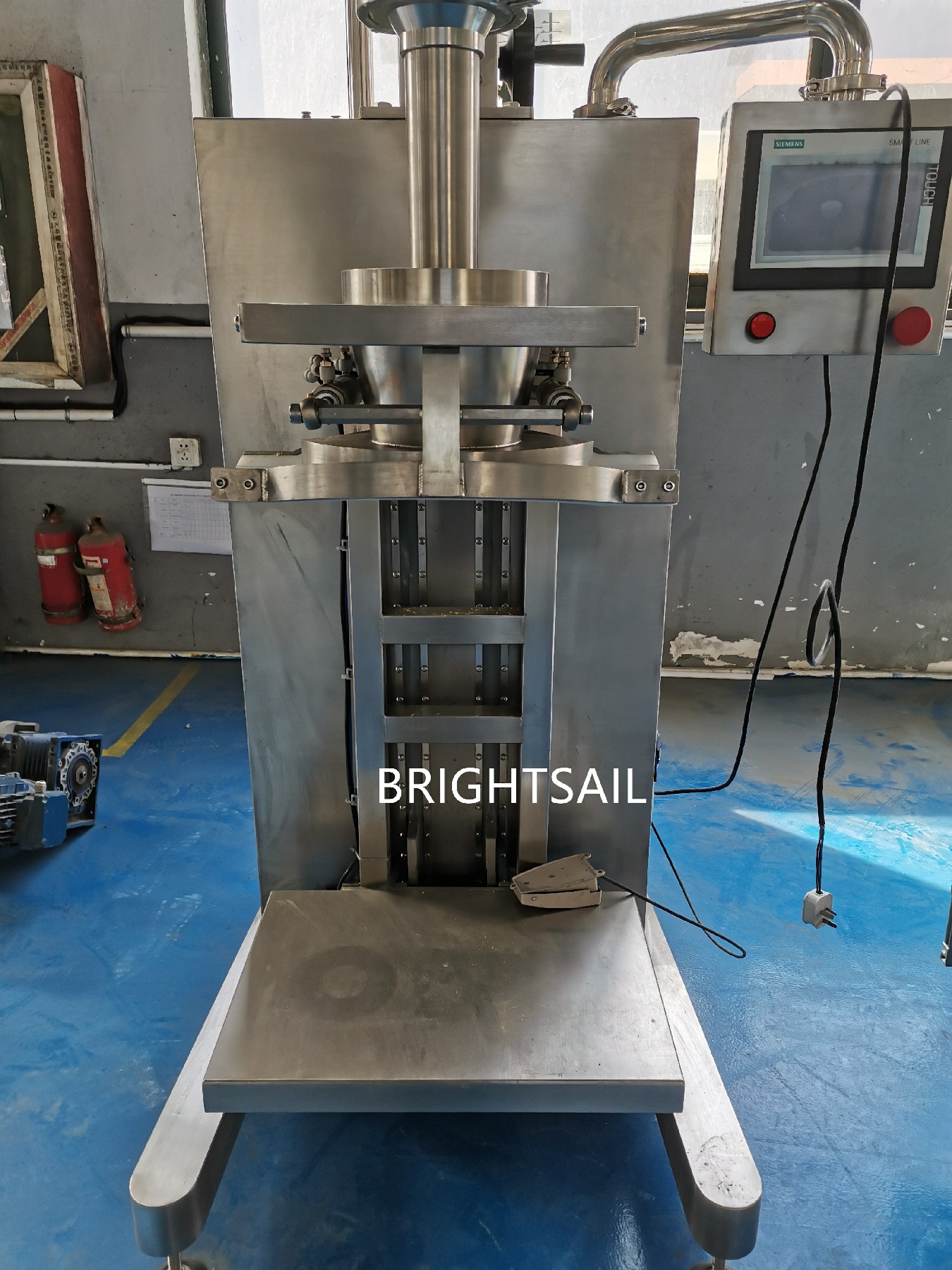

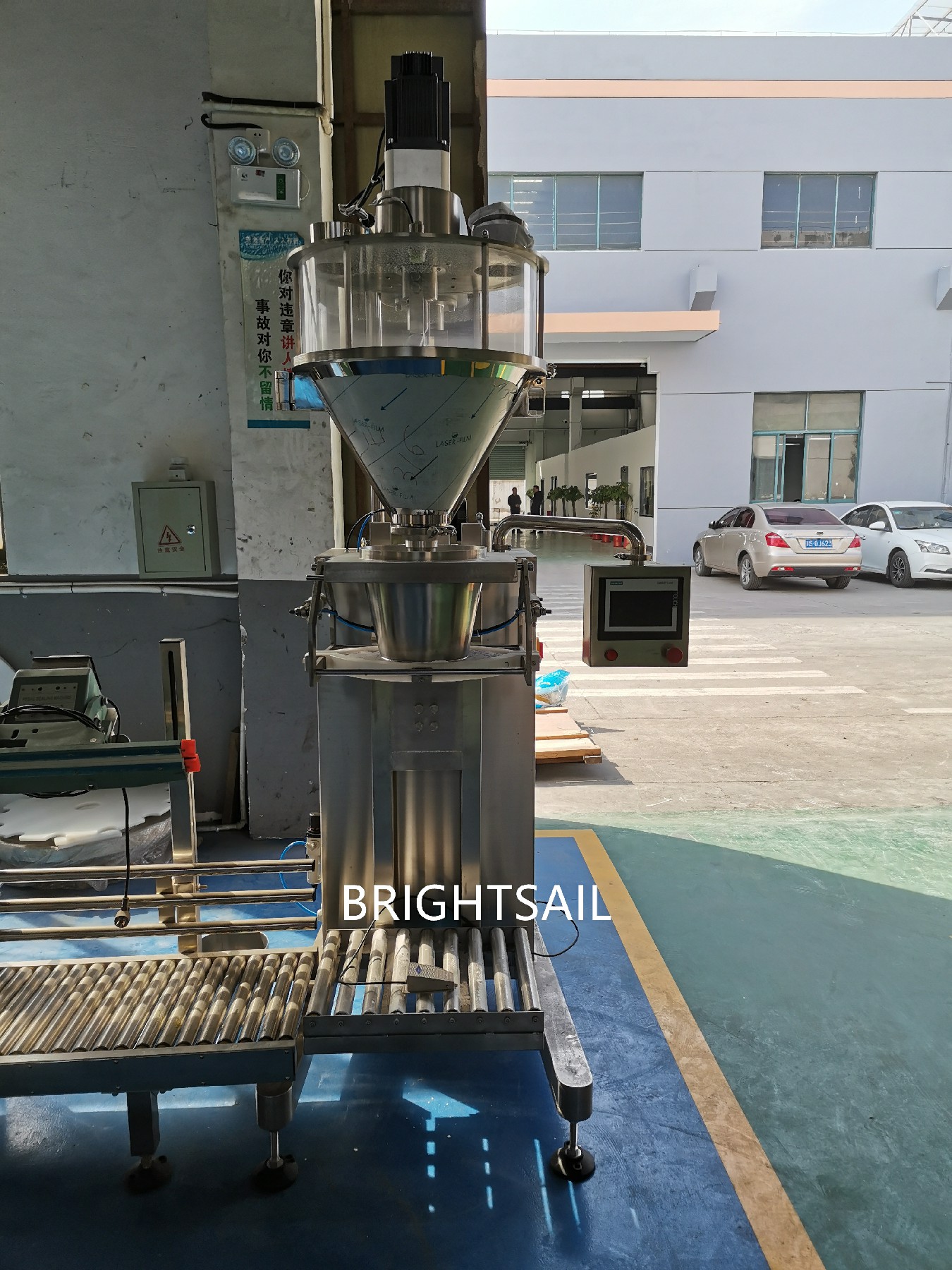

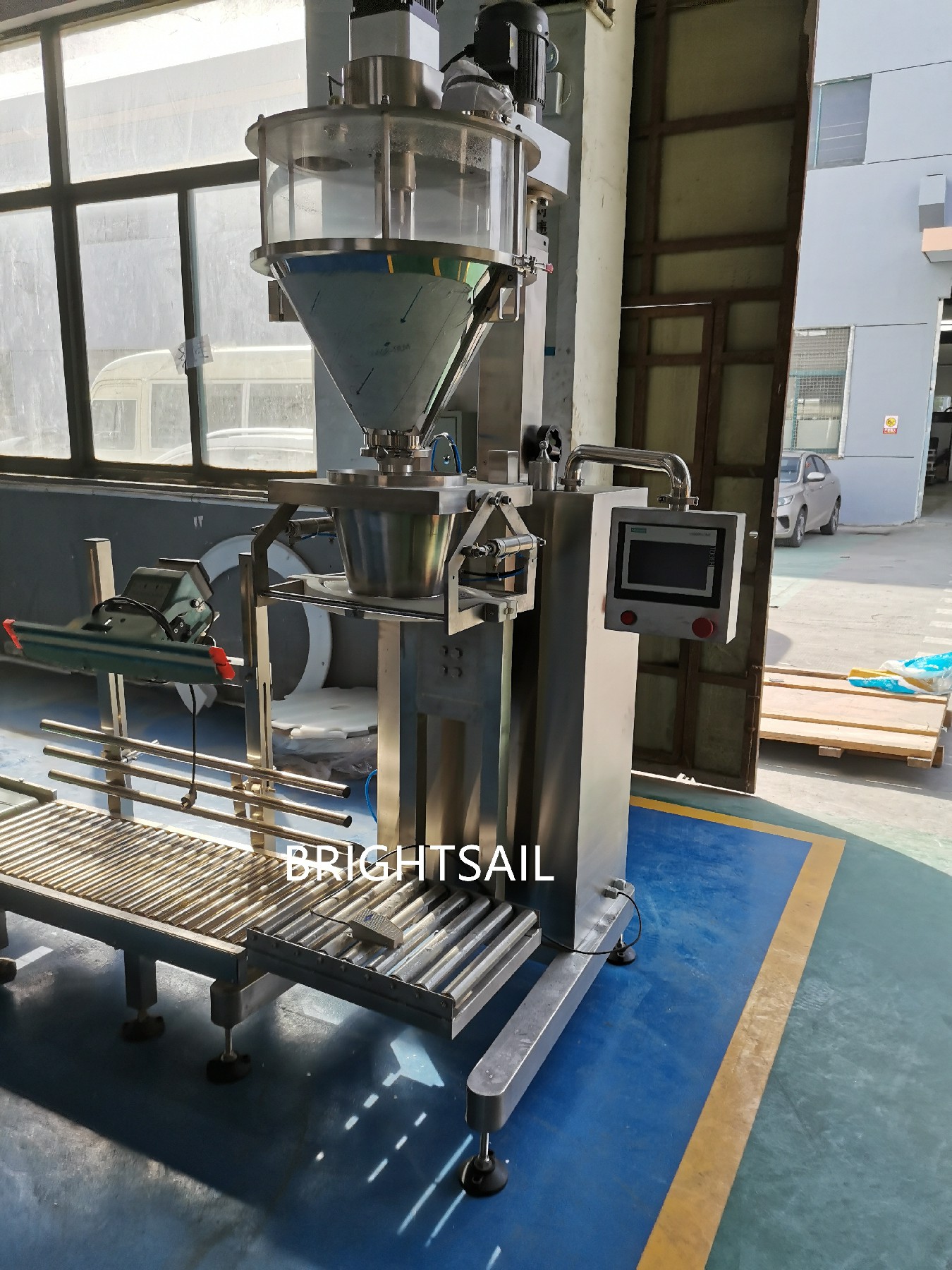

This is our BSPM-B100 series powder packing mahcine,Its filling principle is suitable for ultrafine powder easy to dust,its packing range can reach 5-50kg according material,its packing accuracy can reach ±0.05-0.2%.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Introduction:
The packaging machine is designed in accordance with national GMP standards, and is mainly developed and designed for ultra-fine powder that is easy to dust and high-precision packaging requirements. According to the signal given by the weight sensor installed under the container, it completes two-speed filling, metering, and lifting. It is suitable for packaging additives, carbon powder, dry fire extinguisher powder, other ultra-fine powders, and powders with high-precision packaging requirements.
The main body of this machine is made of 304 stainless steel, and the motor, cylinder, electrical accessories, pneumatic components, etc. are all selected well-known brands, or customers can specify brands.
Features
◪ A weight sensor is installed under the container tray, fast and slow filling according to the preset weight to ensure high packaging accuracy.
◪ Servo motor drives the tray up and down, the lifting speed can be set arbitrarily, and basically no dust is raised to pollute the environment during filling.
◪ Servo motor and servo drive control screw, stable performance and high precision.
◪ PLC control, touch screen man-machine interface display, easy to operate.
◪ All stainless steel structure; combined material box, easy to clean.
◪ The filling head is equipped with an adjustable height device, which can easily achieve a variety of specifications for packaging.
◪ The fixed screw installation structure will not affect the material properties during filling.
◪ Work flow: manual bagging or canning → container raising → fast filling, while the container drops → weight reaches the preset value → slow filling → weight reaches the target value → stop → manually take out the container.
◪ Pneumatic bag clamping device and can holding device are available for selection, just choose different devices to meet the requirements of canning and bagging.
| Model | BSPM-B100 |
| Packing weight | 5-50kg (depending on raw material) |
| Packaging Accuracy | 5-20Kg,≤±0.1-0.2%; ≥20Kg,≤±0.05-0.1% |
| Packaging speed | 2-4 bags per minute |
| Power supply | 3P AC380V 50Hz |
| Total power | 3.3KW |
| Total weight | 450KG |
| Material box volume | 100L |
| Boundary dimension | 800mm*1200mm*3200mm |
| Air source | 0.6-0.8Mpa(The air compressor is provided by the customer) |
