it's a seeds cake grinding test on BSC coarse crusher, this machine is suitable for granulation or as a primary mill in the crushing process.
BSC coarse crusher is suitable for supporting equipment before fine crushing in pharmaceutical, chemical, food and other industries. It has a good effect on most materials.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:

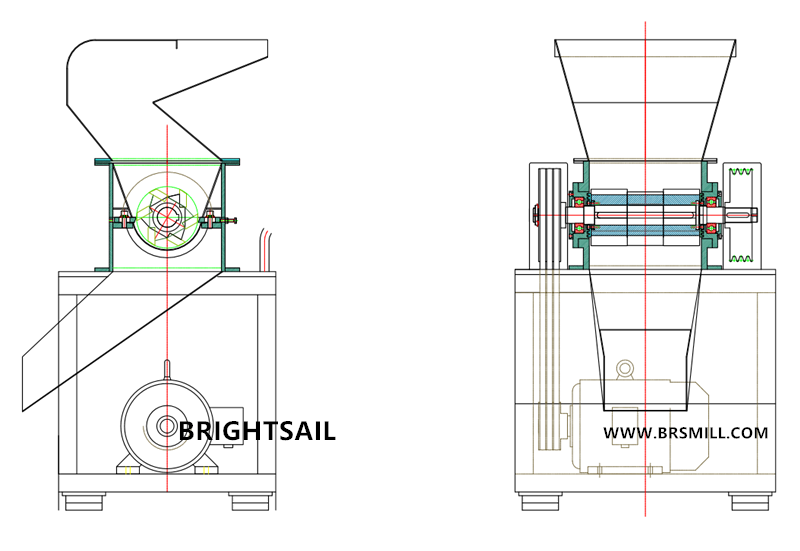

+8615961653782The machine is of horizontal crushing structure. The materials enter the crushing chamber through the hopper, are sheared and impact crushed by the fixed knife and rotating knife, and automatically flow into the outlet under the action of rotating centrifugal force. The machine is designed according to GMP standard and made of all stainless steel. It has the advantages of simple structure, convenient cleaning and low noise. It is an ideal equipment for coarse crushing.
Designed according to GMP standard and made of all stainless steel, it has the following advantages:
1. Simple structure
2. Easy to clean
3. Low noise
4. It is an ideal equipment for coarse crushing
Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
Size of input granules (mm) | <100 | <100 | <100 | <100 |
Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Speed of principal axis(rpm) | 960 | 960 | 960 | 960 |
Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
Weight(Kg) | 200 | 300 | 380 | 500 |
