Icing Sugar Grinding Machine Air Classifier Mill Sugar Mill Machine ACM Grinder

Icing Sugar Grinding Machine Air Classifier Mill Sugar Mill Machine ACM Grinder

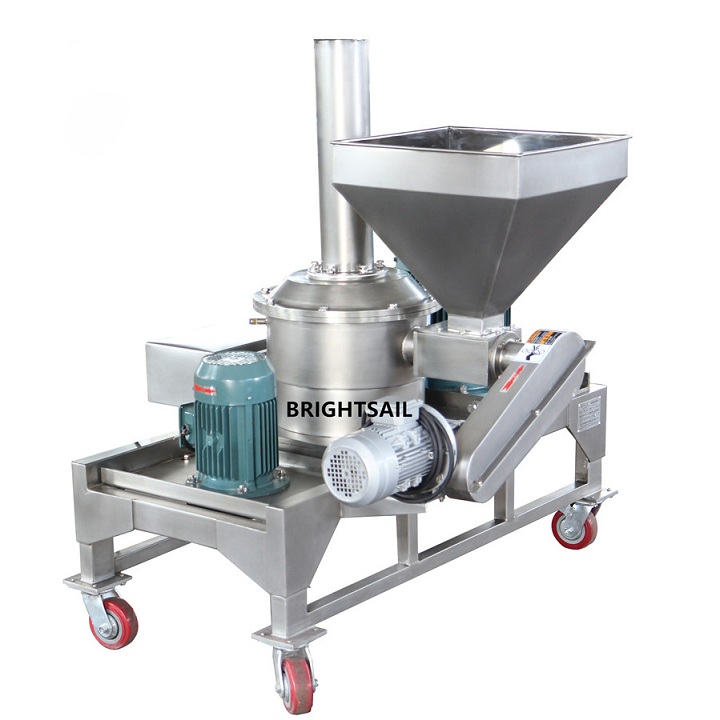

In this video,our Syria clients tookk part in our suger grinding test,on BSP air classifier mill.This grinder mill is good at grinding sugar or icing sugar,it needs no screen during grinding process,its final powder can be superfine.


SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry







Advantages

1. The main grinding parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of wear parts.

2. The bearing system adopts high-speed precision bearings imported from abroad, with stable operation, low vibration and noise.

3. It adopts a rapid pipe removal structure, which is convenient and fast for pipe removal and cleaning.

4. Equipped with cyclone separator and dust collector, there is no dust flying in the production process. The dust collection bag can effectively collect the fine powder in the air flow to meet the clean and environmental protection requirements of waste gas emission.

5. The fine powder collected by the dust bag can be effectively recycled. Thus, the material loss is reduced.



Technical Data

Model
BSP-350BSP-450BSP-500BSP-750
Capacity(kg/h)20-20040-50060-800120-1800
Input size(mm)< 15< 15< 15< 15
Powder fineness(mesh)60-250060-250060-250060-2500
Crush motor(kw)7.5/1115/18.522/30/3745/75
Grade motor(kw)1.12.27.511
Blower(kw)5.5
7.518.537
Feed motor(kw)0.370.750.751.1
Discharge motor(kw)0.750.750.751.1
Speed of principle axis (rpm)-6500-5600-4400-3100
Grading impeller speed(rpm)4000400035003000
Overall size(L*W*H)(mm)5000×1400×28005400×1500×29006600×2000×36009800×2700×4900
Weight(kg)1600180023003100


icing suger making machine sugar mill
