From this test video,you can know how this BSU-30 model crusher makes coriander seeds become 20mesh coriander seeds powder.
This type of crusher is easy to operate,can be widely used in industres of medical,chenmical,foodstuff etc.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782Advantages
1. Simple linear structure and convenient installation and maintenance.
2. There is a water-cooling jacket around the grinding chamber.
3. Pneumatic, electrical and operating components are world advanced brand components.
4. We have different kinds of knives, so you can choose different materials.
Working Method

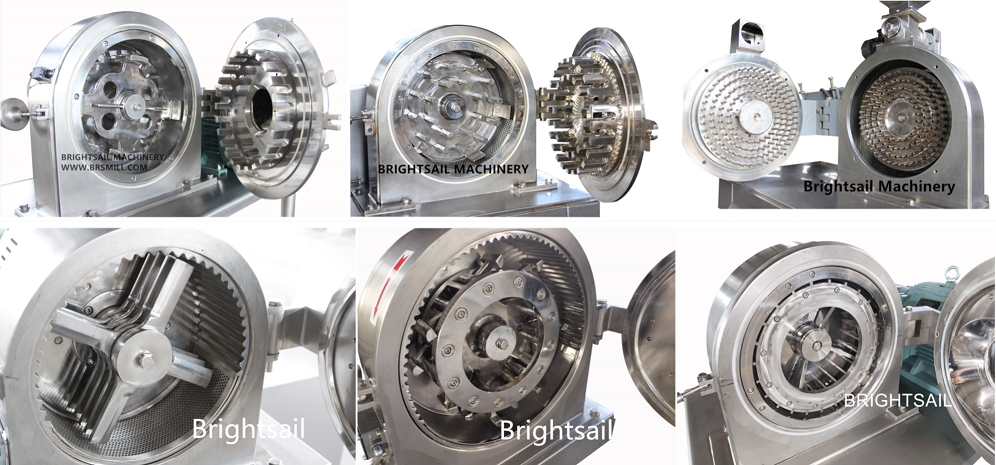

Using the high-speed relative movement of the movable groove disc and the fixed groove disc, the materials are crushed through the comprehensive action of the impact, friction and mutual impact of the groove disc. The machine has the advantages of simple structure, firm and stable operation and good crushing effect. The crushed materials can be directly discharged from the grinding chamber of the main machine. The required particle size can be obtained by installing screens with different pore sizes. In addition, the whole machine is made of stainless steel. The inner surface of the box becomes smooth after processing, which changes the powder residue phenomenon caused by the rough inner surface of the previous models. So as to make the production of drugs, food and chemical products more in line with national standards and GMP requirements.
Model | BSU-20 | BSU-30 | BSF-40 |
Capacity (kg/h) | 60-150 | 80-300 | 100-500 |
Fineness of powder (mesh) | 12-120 | 12-120 | 12-120 |
Power (KW) | 4 | 7.5 | 11 |
Speed (rpm) | 4500 | 3800 | 2500 |
Overall size (L*W*H) | 1280*600*1660 | 1280*700*1660 | 1450*700*1800 |
Weight (kg) | 300 | 400 | 600 |
