This is BSP series air classifier mill for grinding corn protein,the final powder can reach about 270 mesh.
Our air classifier mill can be widely used to grind ginger,rice,seamoss,teff,turmeric,coconut,roaehip...etc.Its capacity can reach about 20-1800kg/hr according to different materials.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:

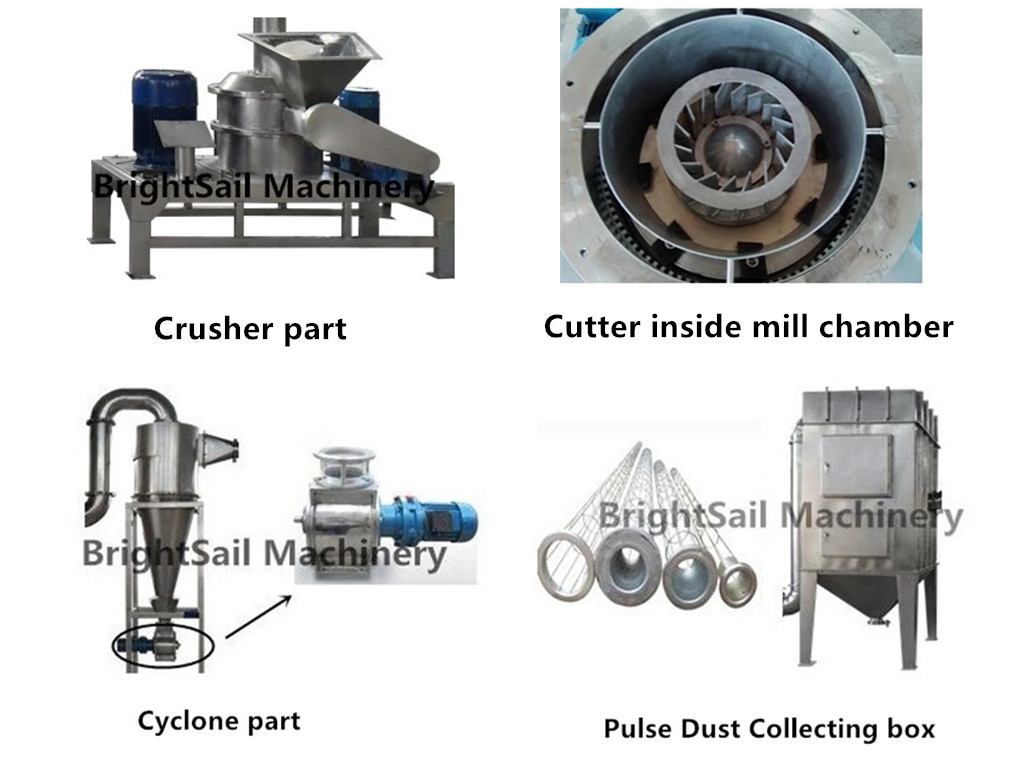

+8615961653782This is our BSP type grinder, consisted of the crusher part, cyclone, dust collecting box, blower and electrical cabinet. It can be used to grind sugar, turmeric, ginger, rice into very fine powder. For sugar grinding, the output size can be 100~1000mesh fine powder. For ginger and garlic grinding, the output size can be 60~200mesh fine powder. For cocoa powder making, the output size can be 200mesh.
Working Method
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement. That's why it can make super fine powder and can be used as a Fine powder grinder (Fine powder mill).
Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
Input size(mm) | < 15 | < 15 | < 15 | < 15 |
Powder fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
Crush motor(kw) | 7.5/11 | 15/18.5 | 22/30/37 | 45/75 |
Grade motor(kw) | 1.1 | 2.2 | 7.5 | 11 |
Blower(kw) | 5.5 | 7.5 | 18.5 | 37 |
Feed motor(kw) | 0.37 | 0.75 | 0.75 | 1.1 |
Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 |
Speed of principle axis (rpm) | -6500 | -5600 | -4400 | -3100 |
Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
Overall size(L*W*H)(mm) | 5000×1400×2800 | 5400×1500×2900 | 6600×2000×3600 | 9800×2700×4900 |
Weight(kg) | 1600 | 1800 | 2300 | 3100 |
