This video is about making cinnamon grinding tests on BS-250 hammer mill,which is customized for our customer.
This hammer mill with high speed rotating speed. It can be widely applied in industries of medical, chemical, foodstuff etc. For spice grinding, it has a good grinding effect, most spice powder can reach 30~40mesh. Except spice, it also can be used to grind dry leaf, chickpeas, sugar and many other materials.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Advantages
1. Simple structure
2. Easy installation
3. Stable running
4. Convenient moving
5. Low noise
6. High grinding efficiency
7. High rotate speed,so it can make fine powder.
Working Method

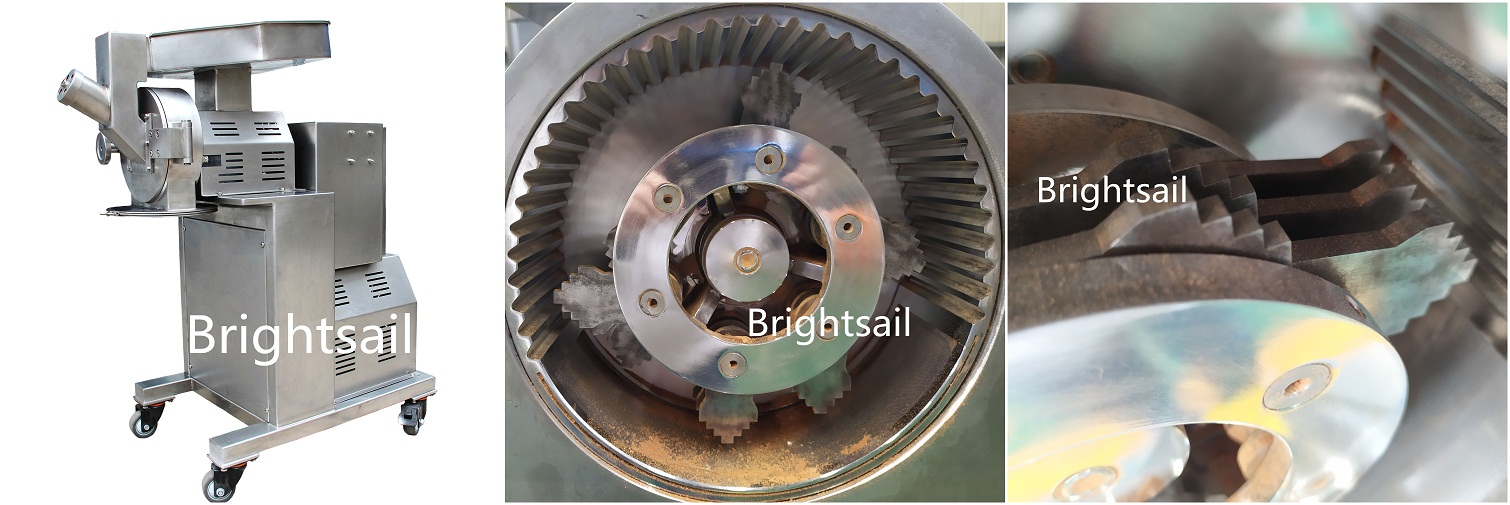

Target material is smashed by the cutting and grinding of high speed knives. Knife of type can be selected according to different material and size of granules.
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size (mm) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) |
| Grind fineness (mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/hr) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter（mm） | 200 | 270 | 330 | 380 |
| Rotor speed (rpm) | 5900/8600 | 4200/6200 | 2600~5100 | 2200~4400 |
| Motor (kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size (mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
If it's a small machine, it's packed in wooden cases.If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
