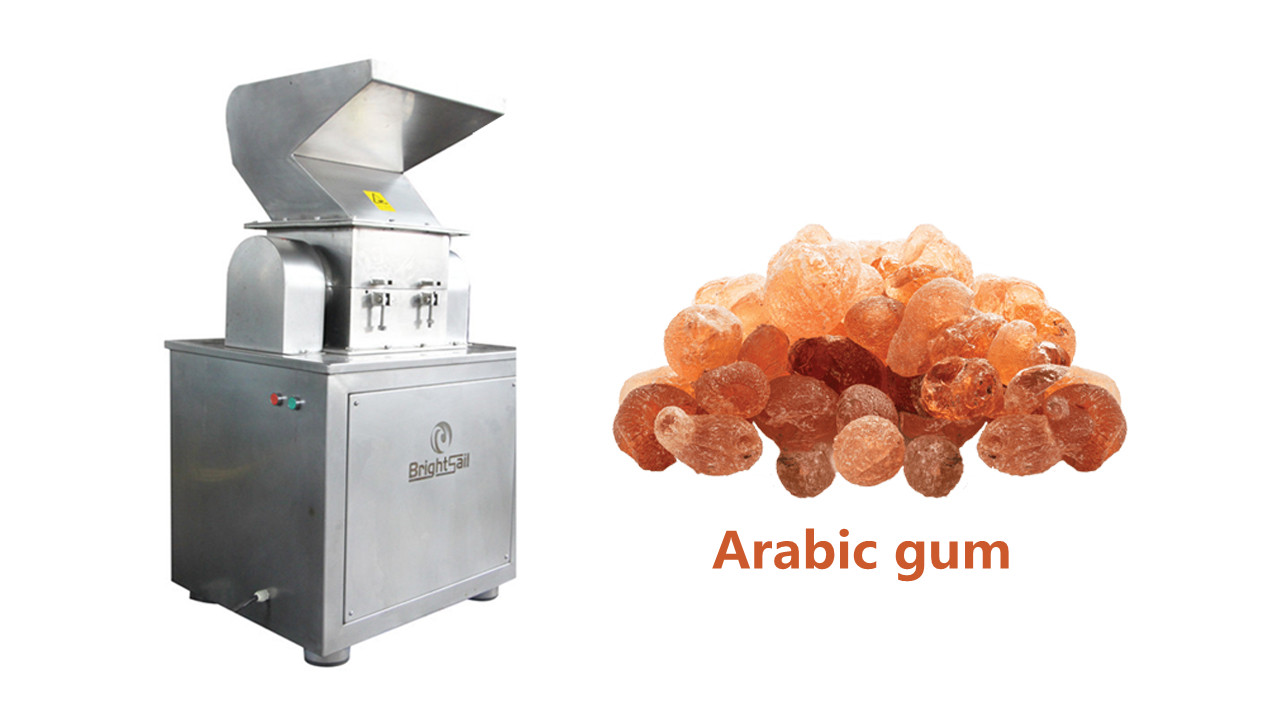

This is a arabic gun grinding test on BSC coarse crusher,for making small arabic gum granules.
BSC series coarse crusher is good at grinding materials into small granules from large size,it is usually used as primary mill in the grinding process.It can be widely used in foodstuff industry,chemical industry,medical industry...
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782
Working Method:
This machine is a horizontal crushing structure. The material enters the crushing chamber through the hopper, and is crushed by the shear and impact of the fixed knife and the rotating knife, and automatically flows into the outlet under the action of the rotating centrifugal force. This machine is designed according to GMP standard and is made of stainless steel. It has simple structure, convenient cleaning and low noise. It is an ideal equipment for coarse crushing.
Usage:
The industrial food crusher is a special equipment for coarse crushing of hard and hard materials such as plastics and rubber. In particular, not subject to material viscosity, hardness, softness and fiber shape restrictions on all materials have a good effect. BSC Coarse crusher is suitable for pharmaceutical, chemical, food and other industries before the fine grinding of the supporting equipment. It applies to most materials. It is suitable for granulating or as a primary mill.
| Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
| Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
| Size of input granules (mm) | <100 | <100 | <100 | <100 |
| Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Speed of principal axis(rpm) | 960 | 960 | 960 | 960 |
| Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
| Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
| Weight(Kg) | 200 | 300 | 380 | 500 |
Advantages:
Designed according to GMP standard and wholly made of stainless steel, this machine has such advantages:
1. Simple structure
2. Convenient cleaning
3. Low noise
4. Being the ideal equipment for coarse crushing
