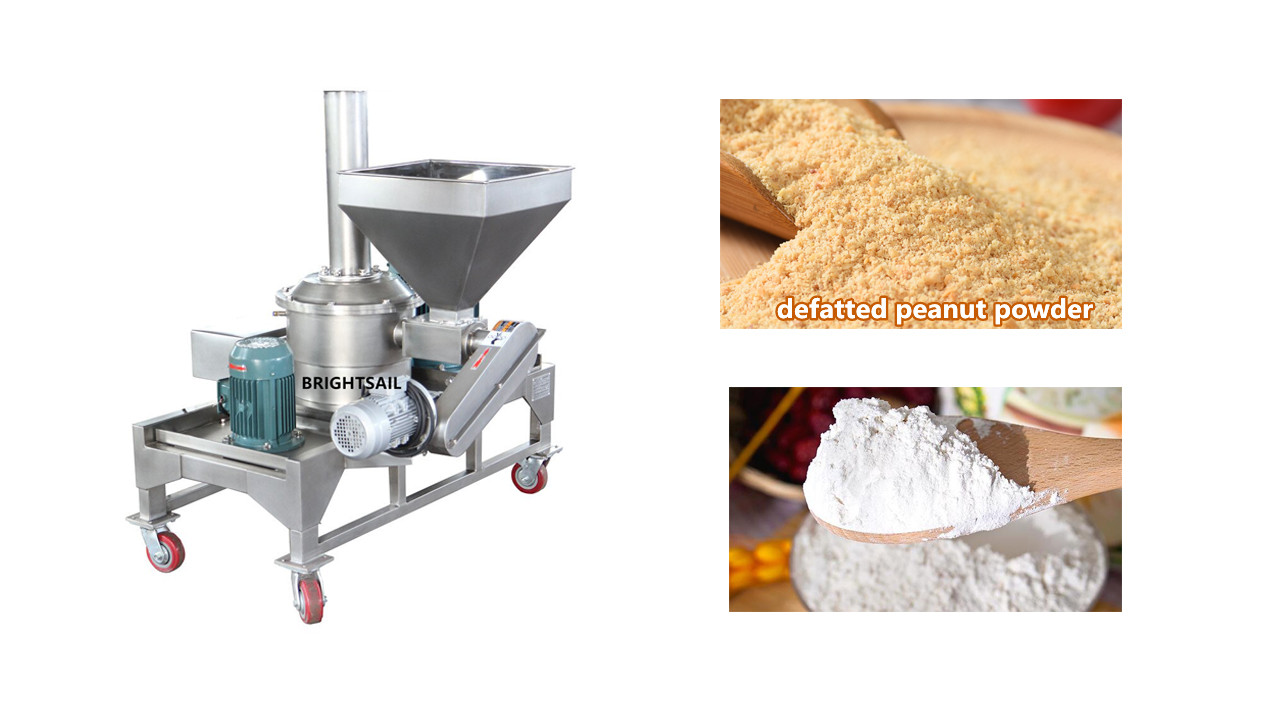

In this video, it is our BSP-350 peanut powder grinding machine, and the peanut has been processed by degreased. So the powder won't get stuck in the mill chamber. And the peanut powder in the video is around 200 mesh.
Our BSP series grinding machine with wide usage,helpful to the customers with high requirement of powder fineness,its final powder can reach about 60-2500mesh.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782Introduction of our BSP peanut powder grinding machine
1) It can make 60~300 mesh peanut powder.
2) the raw peanut shall be degreased fristly before grinding,
otherwise, the powder will get stuck in the machine.
3) The machine has cyclone and filter system, so, the grinding continuous and dust free.
4) The machine is made by Stainless steel 304, which is food grade.
5) our Peanut powder making machine can also grind other foods, like spices,herbs, grains.
6) This machine has CE certificate
7) the peanut powder in the video is around 200 mesh
Technical Data of BSP Peanut Powder Grinding Machine
Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
Input size(mm) | < 15 | < 15 | < 15 | < 15 |
Powder fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
Crush motor(kw) | 7.5/11 | 15/18.5 | 22/30/37 | 45/75 |
Grade motor(kw) | 1.1 | 2.2 | 7.5 | 11 |
Blower(kw) | 5.5 | 7.5 | 18.5 | 37 |
Feed motor(kw) | 0.37 | 0.75 | 0.75 | 1.1 |
Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 |
Speed of principle axis (rpm) | -6500 | -5600 | -4400 | -3100 |
Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
Overall size(L*W*H)(mm) | 5000×1400×2800 | 5400×1500×2900 | 6600×2000×3600 | 9800×2700×4900 |
Weight(kg) | 1600 | 1800 | 2300 | 3100 |
More pictures of our BSP Peanut Powder Machine
This is mill chamber, there is air classifier wheel,
it is used for making the powder even and fine
