In this video, it is our BSP-350 icing sugar mill machine, it can make 60~500 mesh superfine icing sugar/powderd sugar.

Our BSP air classifier mill is good at grinding rice,teff,seaweed,konjak...its final powder can be even and superfine,if you want to make good fineness and large capacity of powder products,this grinding machine can satisfy you.

SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry
icing sugar making machine

1. The design is compact and the structure is reasonable. The machine built-in grading mechanism, grinding and grading at the same time, reduce energy consumption.

2. This machine is equipped with blower, which can radiate heat continuously. Suitable for grinding of heat sensitive materials.

3. Strong adaptability, narrow particle size distribution. Product granularity is even, fineness can reach 80-320 Mesh.

4. The uniform distribution of the required size can be obtained by adjusting the speed of the classifier or air classifier without stopping the machine.

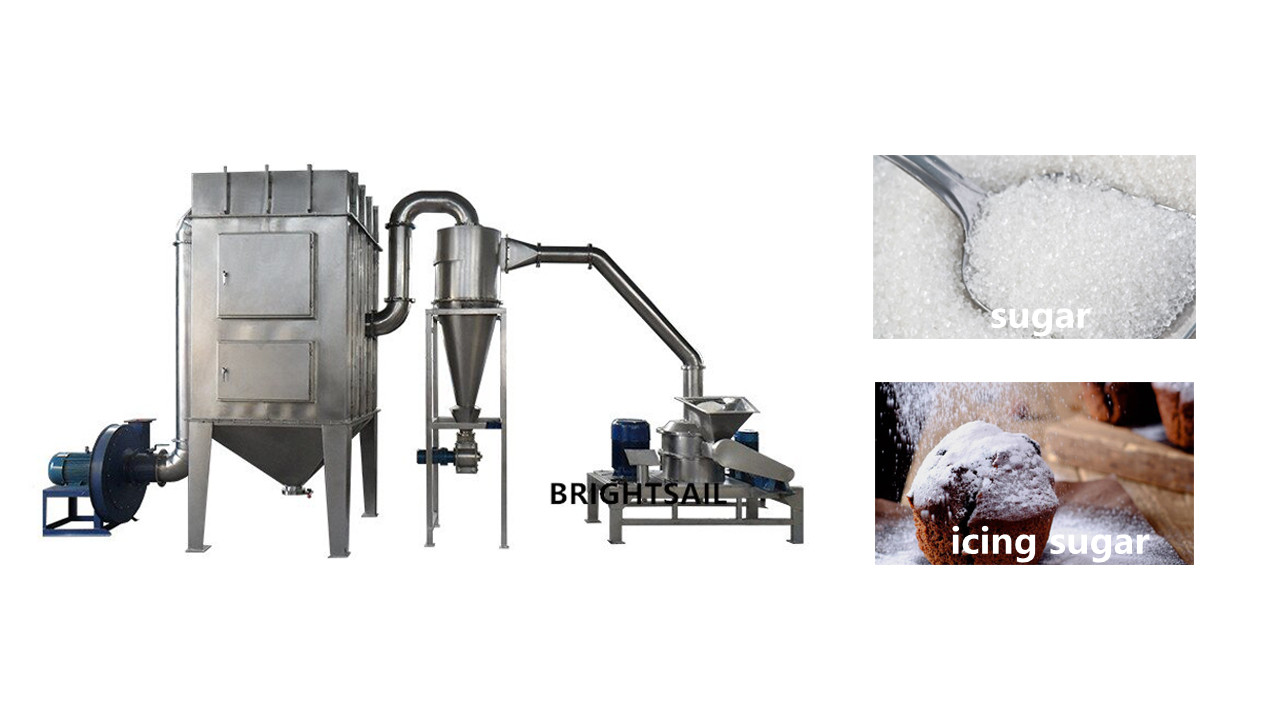

Introduction of BSP icing sugar mill machine

This BSP powdered sugar mill is made up of three parts:main machine,auxiliary machine and electric control box.

BSP icing sugar mill has the properties of wind selection,having no sieve or net,and an even granularity of the processed material.

The production process going on continuously and dust-proof.

the machine can undertake the grinding of chemical products.food medcine,medicament,cosmetics,plastic,dyestuff, resin,grain,etc.


Technical data of BSP icing sugar making machine

ModelBSP-350BSP-450BSP-500BSP-750
Capacity(kg/h)20-20040-50060-800120-1800
Input size(mm)< 15< 15< 15< 15
Powder fineness(mesh)60-250060-250060-250060-2500
Crush motor(kw)7.5/1115/18.522/30/3745/75
Grade motor(kw)1.12.27.511
Blower(kw)5.57.518.537
Feed motor(kw)0.370.750.751.1
Discharge motor(kw)0.750.750.751.1
Speed of principle axis (rpm)-6500-5600-4400-3100
Grading impeller speed(rpm)4000400035003000
Overall size(L*W*H)(mm)5000×1400×28005400×1500×29006600×2000×36009800×2700×4900
Weight(kg)1600180023003100

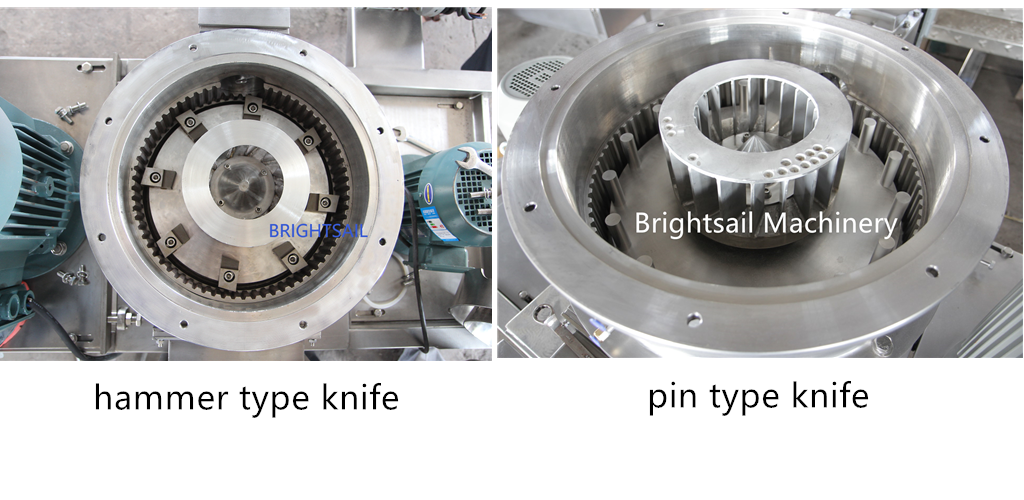

There are two type mill knives

For making icing sugar, pin type knive is more recommended;

For making herb or grain powder, hammer type knive is recommended.

FAQ

1.What's your modes of shippment?

  1. We provide shipping methods:Courier service,Air transport,Sea Transport;  2.Can accept order:Full container cargo load,Less container load;  3.Delivery term :EXW,FOB,CIF,CNF etc.


2.What certifications do you have?

CE & ISO


3.What payment method is supported?

L/C ;  2. Western Union;  3. T/T;  4. MoneyGram


Advantages

1.The company’s products have a certain improvement cycle to keep up with the development needs of the times.

2.Over the years, the company has continuously improved and innovated on the basis of absorbing the characteristics and advantages of similar products at home and abroad.

3.The company has professional technical research and development talents, proficient in the mechanical field, and brings you a professional product experience.

4.Our products are of excellent quality and have won a good reputation and praise from customers at home and abroad.


icing sugar making machine icing sugar mill machine
