Teff Flour Production Machine - Teff Flour Milling Machine

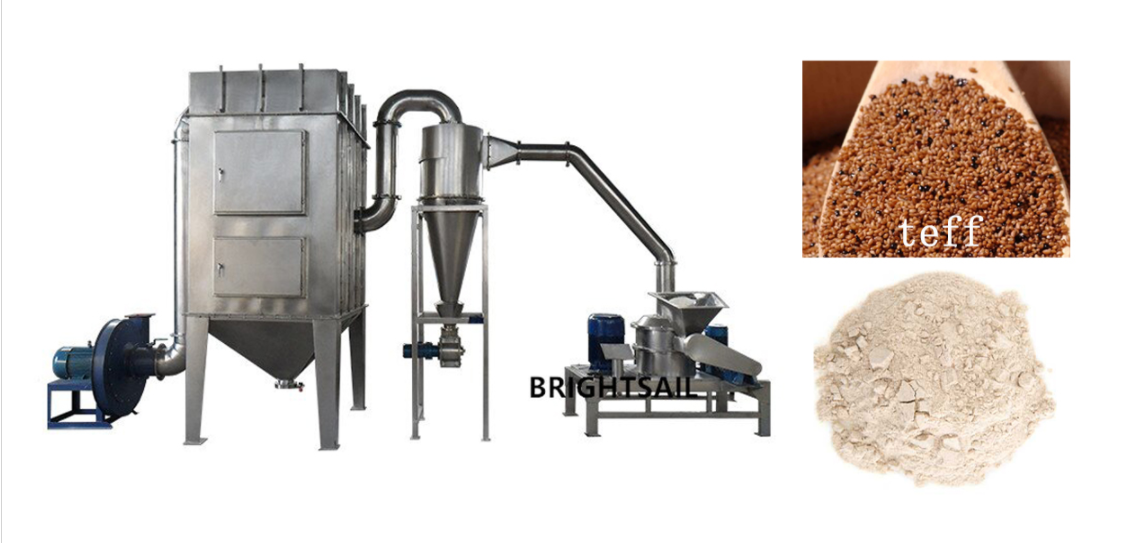

Introduction of BSP teff flour milling machine

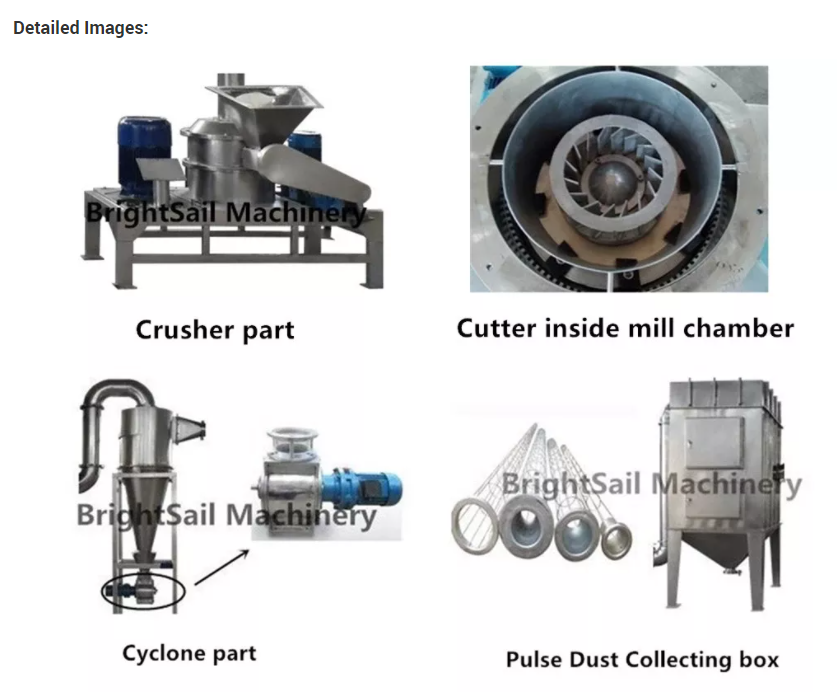

BSP teff flour mill machine unit has 5 parts mainly: mill, cyclone, dust collect box, blow, control box
The production process is continuous and can grind other materials like rice flour, cassava flour, corn, herbs powder, some spices and other dried raw materials.
For teff flour, the pwoder size our machine can mill is 60~500 mesh.
Working Method of BSP Teff Flour Production Machine
The raw materials are sent to the crushing chamber by the Screw Feeder through the hopper, cut and cut by the high-speed cutter
and then sent to the cyclone separator and the bag filter by the negative pressure dust collection.
Technical Data of BSP teff flour mill machine
Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Input size(mm) | < 15 | < 15 | < 15 | < 15 |
| Powder fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Crush motor(kw) | 7.5/11 | 15/18.5 | 22/30/37 | 45/75 |
| Grade motor(kw) | 1.1 | 2.2 | 7.5 | 11 |
| Blower(kw) | 5.5 | 7.5 | 18.5 | 37 |
| Feed motor(kw) | 0.37 | 0.75 | 0.75 | 1.1 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 |
| Speed of principle axis (rpm) | -6500 | -5600 | -4400 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Overall size(L*W*H)(mm) | 5000×1400×2800 | 5400×1500×2900 | 6600×2000×3600 | 9800×2700×4900 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
