this is video of our BSP ginger powder grinding machine, in the video, the powder size is around 200 mesh, very smooth and even and fine.

This ginger powder making machine can also grind other herbs like turmeric,roots.


Introduction:

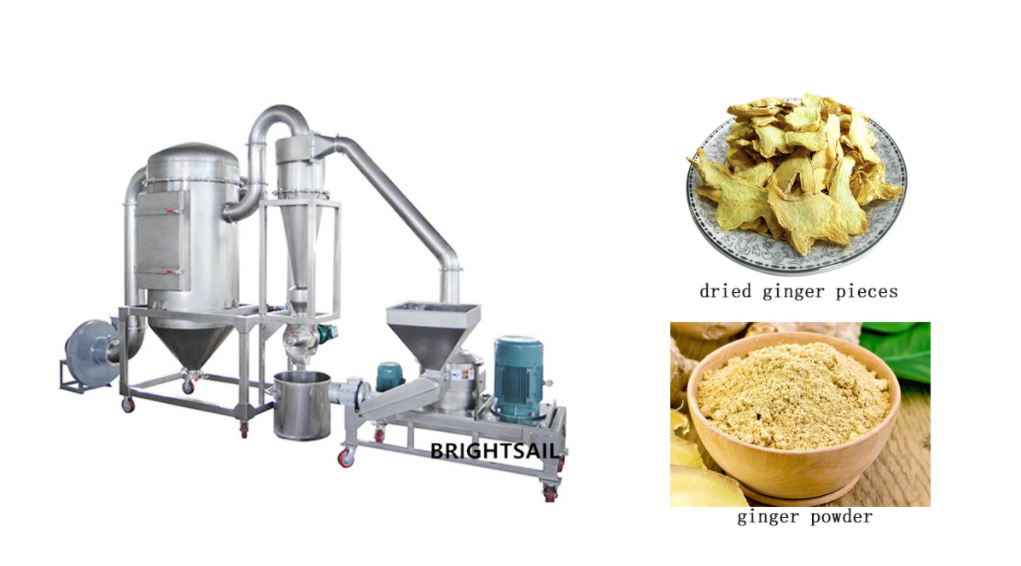

BSP ginger powder grinding machine is also called BSP ACM grinder, it is very good for making superfine herb powder, like ginger,roots,dried leaves, stems.

It can also grind grains, spices,chemicals into fine powder.


Working Method of our BSP ginger powder grinding machine:

The dried ginger is sent to the mill chamber, it will be crushed and milled by the hammer knives.

Then, the classifier inside the mill can make sure the powder size reach to the target size like 100 mesh,200 mesh.



Technical data of our BSP ginger powder making machine

ModelBSP-350BSP-450BSP-500BSP-750
Capacity(kg/h)20-20040-50060-800120-1800
Input size(mm)< 15< 15< 15< 15
Powder fineness(mesh)60-250060-250060-250060-2500
Crush motor(kw)7.5/1115/18.522/30/3745/75
Grade motor(kw)1.12.27.511
Blower(kw)5.57.518.537
Feed motor(kw)0.370.750.751.1
Discharge motor(kw)0.750.750.751.1
Speed of principle axis (rpm)-6500-5600-4400-3100
Grading impeller speed(rpm)4000400035003000
Overall size(L*W*H)(mm)5000×1400×28005400×1500×29006600×2000×36009800×2700×4900
Weight(kg)1600180023003100

ginger powder making machine
