In this video, it our BSDF advanced hammer mill for grinding leaf powder. Our BSDF hammer mill usually be used to grind chili,cinnamon,turmeric,chickpea,pepper...without any screen or sieve in grinding chamber,its final powder can reach about 20~120mesh.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:

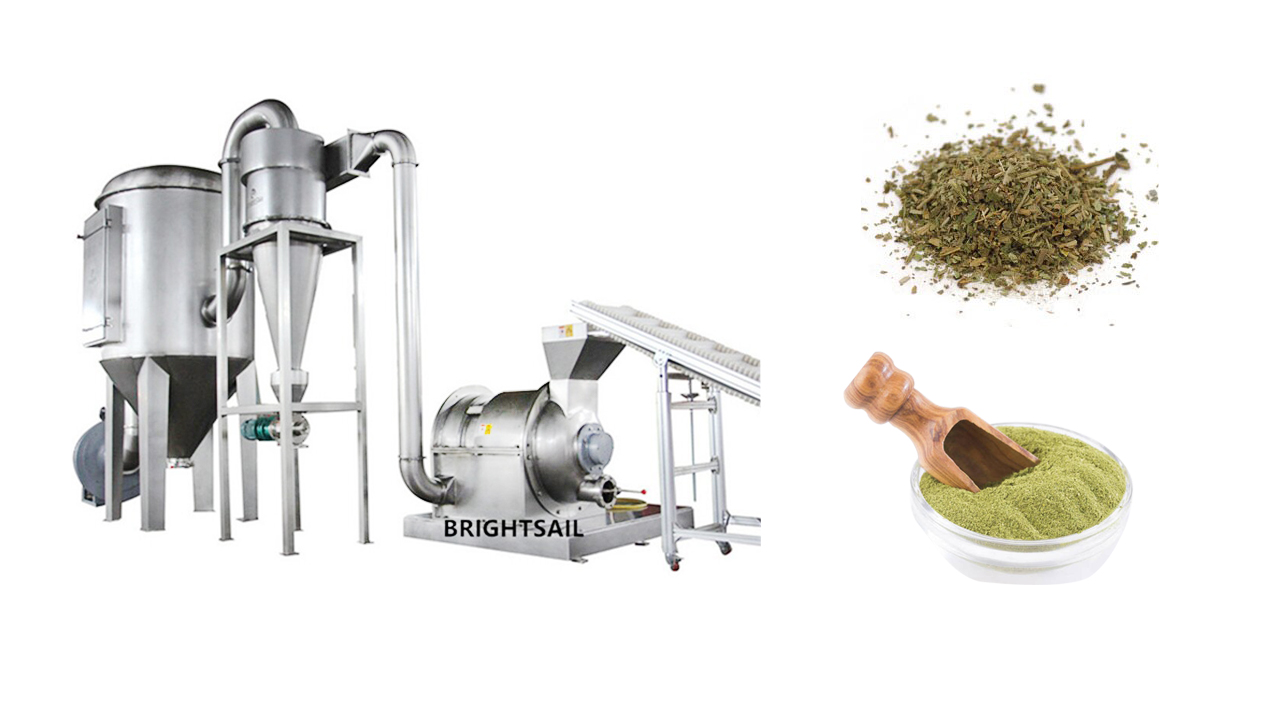

BSDF is our latest advanced hammer grinding unit which is very suitable for grinding herbs and leaf.
It is composed of coarse crusher, medium and fine milling and fine milling area (3 milling areas).
The material will be ground three times at the same time.
For spices (such as pepper, turmeric, coriander seed and cumin), the powder can reach 20 ~ 80 mesh;
The flour of cereals (such as rice, cassava, chickpea, beans, wheat) can reach 20 ~ 150 mesh.
Advantages of our Leaf Powder Grinding Machine
(1) No need for a sieve chamber or a sieve chamber, and the powder particle size can be changed by changing the speed;
(2) Since there is no screen in the grinding chamber, there is no temperature rise in the grinding chamber; there is no need to worry about the impact of the power of the screen or the quality of the product. The effect of mill heat. This is why it is ideal for grinding heat-sensitive materials or materials containing fibers or oils.
(3) Save more electricity, and its production capacity is much larger than other similar traditional motor factories.
(4) To make different size leaf powder, just setting the frequency on the control box of the machine.
Working Method of our Leaf Powder Grinding Machine
This is the mill part, it sets the crushing area, the fine crushing area, the ultra-fine crushing area in one.
The first crushing zone can crush hard materials; the second grinding zone can grind materials containing fiber or oil, such as herbs, spices, and roots.
The third grinding area is fine grinding area, and the particle size of powder can be changed by changing the grinding speed.
Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
Grind motor(Kw) | 22 | 37 | 45 | 55 | 75 |
Feed motor(Kw) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Discharge motor(Kw) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
Blower(Kw) | 7.5 | 11 | 15 | 18.5 | 18.5 |
Grind fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
Capacity(Kg/hr) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
