In this onion grinding test's video,we used BSC coarse crusher to grind dried onion pieces into smaller size,then we can dehydrate them by BSO hot air clrculation oven,at last,we used BSP air classifier mill to grind small onion into fine powder.


SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry

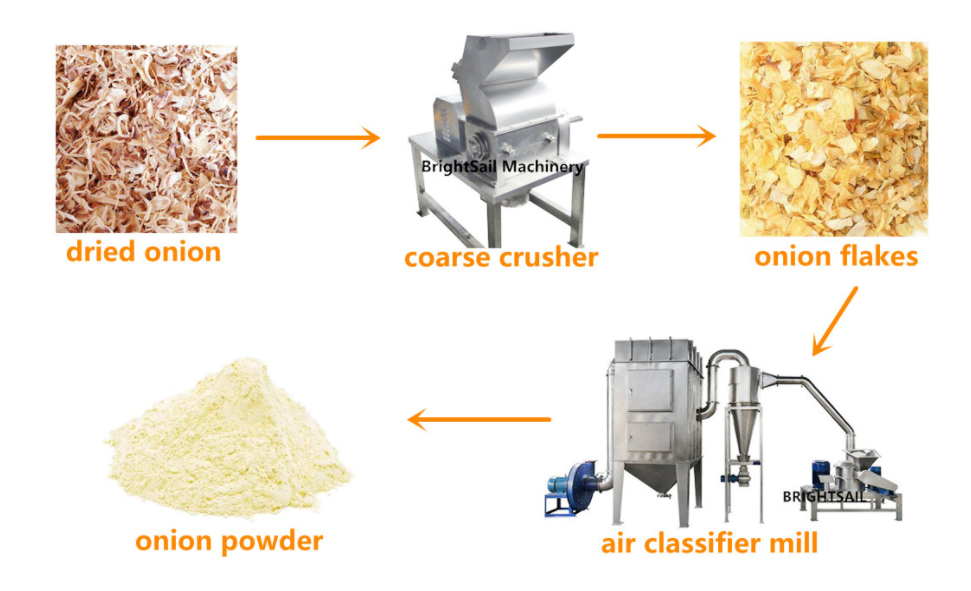

In this onion grinding test's video,we used BSC coarse crusher to grind dried onion pieces into smaller size,

then we can dehydrate them by BSO hot air clrculation oven,at last,we used BSP air classifier mill to grind small onion granules into fine powder.


1) BSC onion crusher

Working Method:

This coarse crusher with a horizontal breaking structure.

The material enters the crushing chamber through the hopper, is crushed under the shearing impact of the fixed knife and the rotating knife, and automatically enters and exits the discharge port under the action of the rotating centrifugal force.

Usage:

This onion coarse grinder machine is a special equipment for coarse crushing of hard and tough materials such as plastics and rubber. In particular, not subject to the material viscosity, hardness, softness and fiber shape restrictions, for all materials have a good effect.

BSC coarse crusher is suitable for pharmaceutical, chemical, food and other industries before the fine supporting equipment.

 It applies to most materials. It is suitable for pelleting or as a primary mill.


Technical Data of Onion Crusher

ModelBSC-200BSC-300BSC-400BSC-600
Capacity(kg/h)80-300100-800200-1000500-1500
Size of input granules (mm)<100<100<100<100
Crushing Fineness(mm)0.5-200.5-200.5-200.5-20
Speed of principal axis(rpm)960960960960
Motor power(KW)35.57.511
Overall Size(L*W*H) (mm)(Type B)900*600*1140900*700*1440900*800*14401000*900*1440
Weight(Kg)200300380500

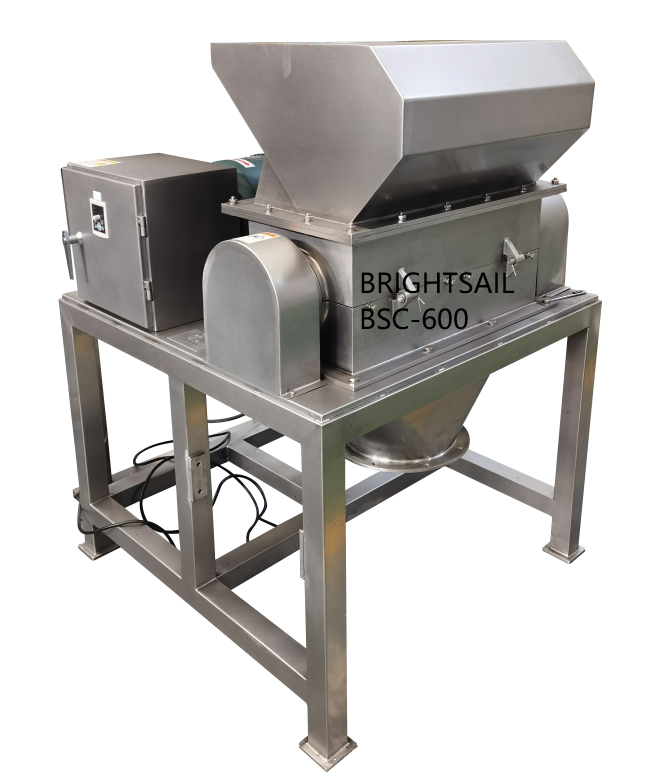

This is picture of onion crusher


BSP ACM grinder (onion powder grinding machine)


Product Introduction:

BSP ultrafine pulverizer consists of three parts: main machine, auxiliary machine and electronic control box.

The BSP Grinder has the characteristics of winnowing, no screen, no net and uniform particle size of processed materials. Continuous production process, can undertake the grinding of chemical products.


Working Method:

The raw materials are sent to grinding room by screw feeder through hopper, cut by high-speed cutter, then sent to cyclone separator and bag filter by negative pressure vacuum pump. Pop-up material is in line with product requirements. This is why it can produce ultra-fine powder, which can be used as a refiner (refiner) .


Advantages of our BSP Onion Powder grinding machine

1. The design is compact and the structure is reasonable. There is a grading mechanism inside the material, which can be crushed and graded at the same time to reduce energy consumption.

  1. 2. The machine is equipped with fans, continuous heat dissipation, suitable for grinding of heat sensitive materials.

  2. 3. Strong adaptability, narrow particle size distribution. Product granularity is even, fineness can reach 80-320 Mesh.

  3. 4. The speed or air volume of the classifier can be adjusted without stopping the machine to obtain the product with uniform particle size distribution.

  4. 5. The upper cover of the main unit is opened by the pneumatic spring, the body structure can be opened to both sides, so there will be no obstacles when cleaning and repairing the internal parts.

  5. 6. The main grinding parts are made of high-quality alloy tool steel, which greatly prolongs the service life or replacement cycle of the wearing parts.


Technical Data of our BSP onion grinder mill :

ModelBSP-350BSP-450BSP-500BSP-750
Capacity(kg/h)20-20040-50060-800120-1800
Input size(mm)< 15< 15< 15< 15
Powder fineness(mesh)60-250060-250060-250060-2500
Crush motor(kw)7.5/1115/18.522/30/3745/75
Grade motor(kw)1.12.27.511
Blower(kw)5.57.518.537
Feed motor(kw)0.370.750.751.1
Discharge motor(kw)0.750.750.751.1
Speed of principle axis (rpm)-6500-5600-4400-3100
Grading impeller speed(rpm)4000400035003000
Overall size(L*W*H)(mm)5000×1400×28005400×1500×29006600×2000×36009800×2700×4900
Weight(kg)1600180023003100

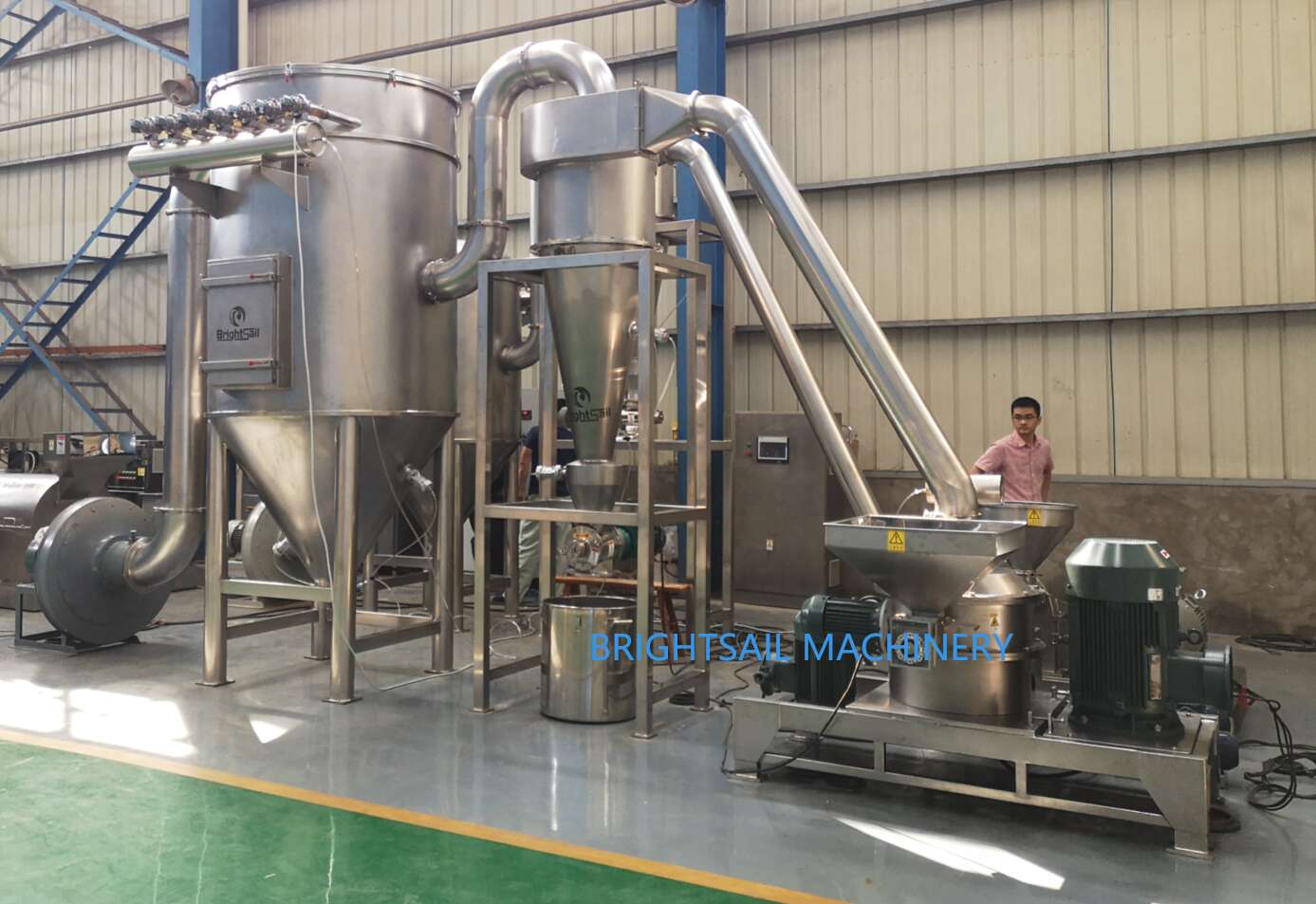

These are pictures of our BSP onion powder grinding machine


Packing And Shipping of our onion powder grinder mill

*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.

*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.


Why Choose Us for Onion Powder Making Machine Onion Powder Grinding Machine Onion Grinder Mill

Within years, we have exported machine to over 70 countries.

For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.

So you do not need to worry about the export procedures because we know all the procedures.

onion powder making machine onion powder grinder onion powder grinding machine onion powder grinder mill onion powder mill
