Besan Grinding Machine Chickpea Powder Making Machine Air Classifier Mill

Besan Grinding Machine Chickpea Powder Making Machine Air Classifier Mill

air classifier mill is mainly used in fields of chemical,medical,foodstuff industry...It is good at grinding rice,turmeric.konjak,teff,seaweed...Its final powder can reach about 60~2500mesh.

In this video,we used air classifier mill to grind chickpea,for making besan flour.Let's see the final grinding effect through this test.

SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry


Working Method

The raw materials are sent to the crushing chamber by the screw feeder through the hopper, cut and cut by the high-speed cutting machine, and then sent to the cyclone separator and the bag filter through the negative pressure dust collector. That's why it can be used to make ultrafine powders, which can be used as a fine grinder (fine grinding).


Introduction

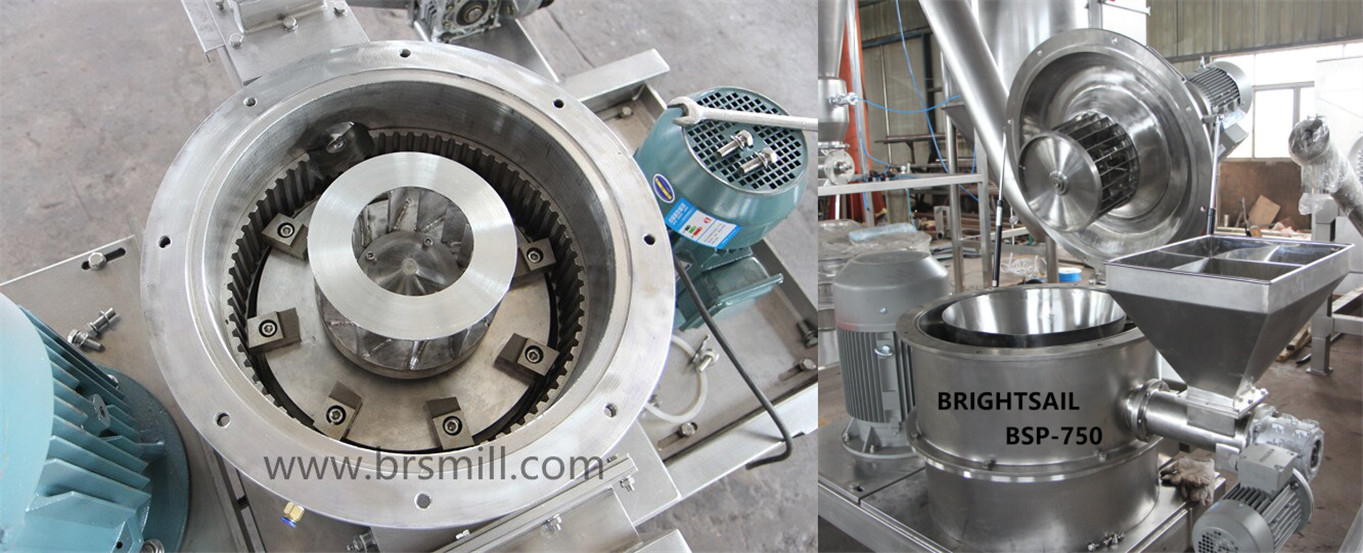

BSP Grinding Machine is composed of main machine, auxiliary machine and Electric Control Box. A BSP grinder has the characteristics of air separation, no screen, no net and uniform particle size of processed materials. Continuous production process, can undertake the grinding of chemical products. Food Medicine, medicine, cosmetics, plastics, dyes, resins, grain and so on.



Advantages:

1. Compact design and reasonable structure. There is a grading mechanism inside the material, which can grind and grade at the same time to reduce energy consumption.

2. The machine is equipped with blower, which can dissipate heat continuously. It is suitable for grinding heat sensitive materials.

3. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.

4. Adjust the rotating speed or air volume of the classifier without stopping the machine to obtain products with uniform particle size distribution.

5. The top cover of the main engine is opened with pneumatic spring, and the main structure can be opened to both sides, so that there will be no obstacles when cleaning and repairing internal parts.

6. The main grinding parts are made of high-quality alloy tool steel, which greatly prolongs the service life or replacement cycle of vulnerable parts.

7. The bearing system adopts high-speed precision bearings imported from abroad, with stable operation, low vibration and low noise.

8. The pipeline adopts quick disassembly structure, which is fast and convenient for disassembly and cleaning.

9. Equipped with cyclone separator and dust collector, there is no dust flying in the production process. The dust removal filter bag can effectively collect the fine powder in the air flow and meet the clean and environmental protection requirements of waste gas emission.

10. The fine powder collected by the dust removal cloth bag can be effectively recycled. So as to reduce material loss.


Technical Data

Model

BSP-350BSP-450BSP-500BSP-750
Capacity(kg/h)20-20040-50060-800120-1800
Input size(mm)< 15< 15< 15< 15
Powder fineness(mesh)60-250060-250060-250060-2500
Crush motor(kw)7.5/1115/18.522/30/3745/75
Grade motor(kw)1.12.27.511
Blower(kw)5.57.518.537
Feed motor(kw)0.370.750.751.1
Discharge motor(kw)0.750.750.751.1
Speed of principle axis (rpm)-6500-5600-4400-3100
Grading impeller speed(rpm)4000400035003000
Overall size(L*W*H)(mm)5000×1400×28005400×1500×29006600×2000×36009800×2700×4900
Weight(kg)1600180023003100


FAQ:

Q: How do you pack your machines?

A: If it's a small machine, it's packed in wooden cases.

If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.


Why Choose Us:

I, Years Professional in Pharmaceutical & Food & Chemical Machinery!

II, A Full Range of Technical Support, Not Only for Our Machines, But Also for Your Production Process!

III, We self manufacture sugar coating machine, chocolate coating plant, mixing machine, grinding machine, drying machine...etc.

chickpea flour making machine besan grinding machine ultrafine mill
