BSG Dust Collecting Grinding Unit Sugar Mill Powder Mking Machine Grinding Mill

BSG Dust Collecting Grinding Unit Sugar Mill Powder Mking Machine Grinding Mill

BSG series self-absorb grinding set is widely used in fields of foodstuff,chemical,paint,medicine...etc. In foodstuff fields, it can grinding cooked soybean,sugar,salt,cinnamon,pepper,garlic,ginger,rice,tea...etc.

It is connected with a cold air machine, it can grinding high oil content material.

SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry

Structure And Working Method

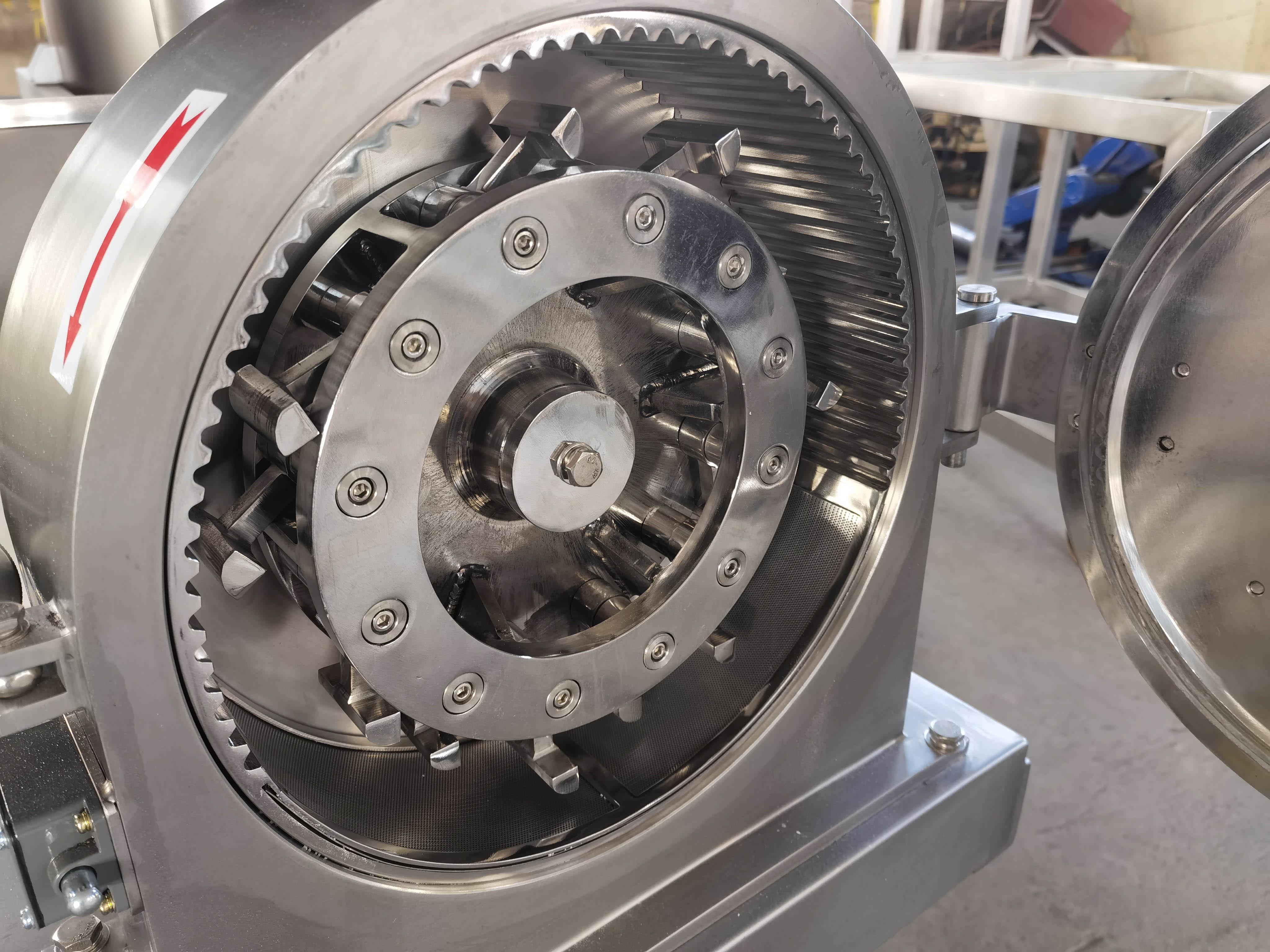

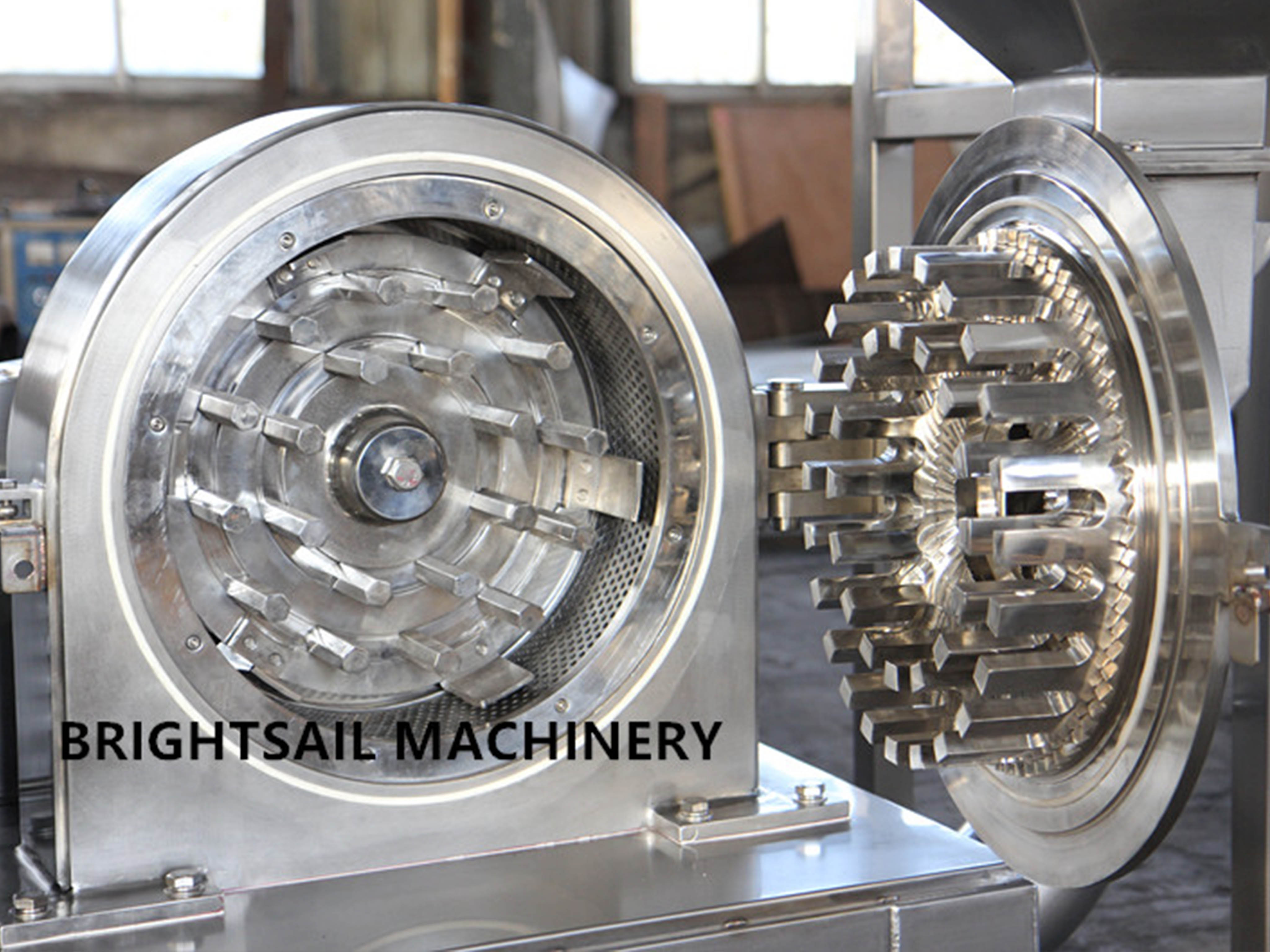

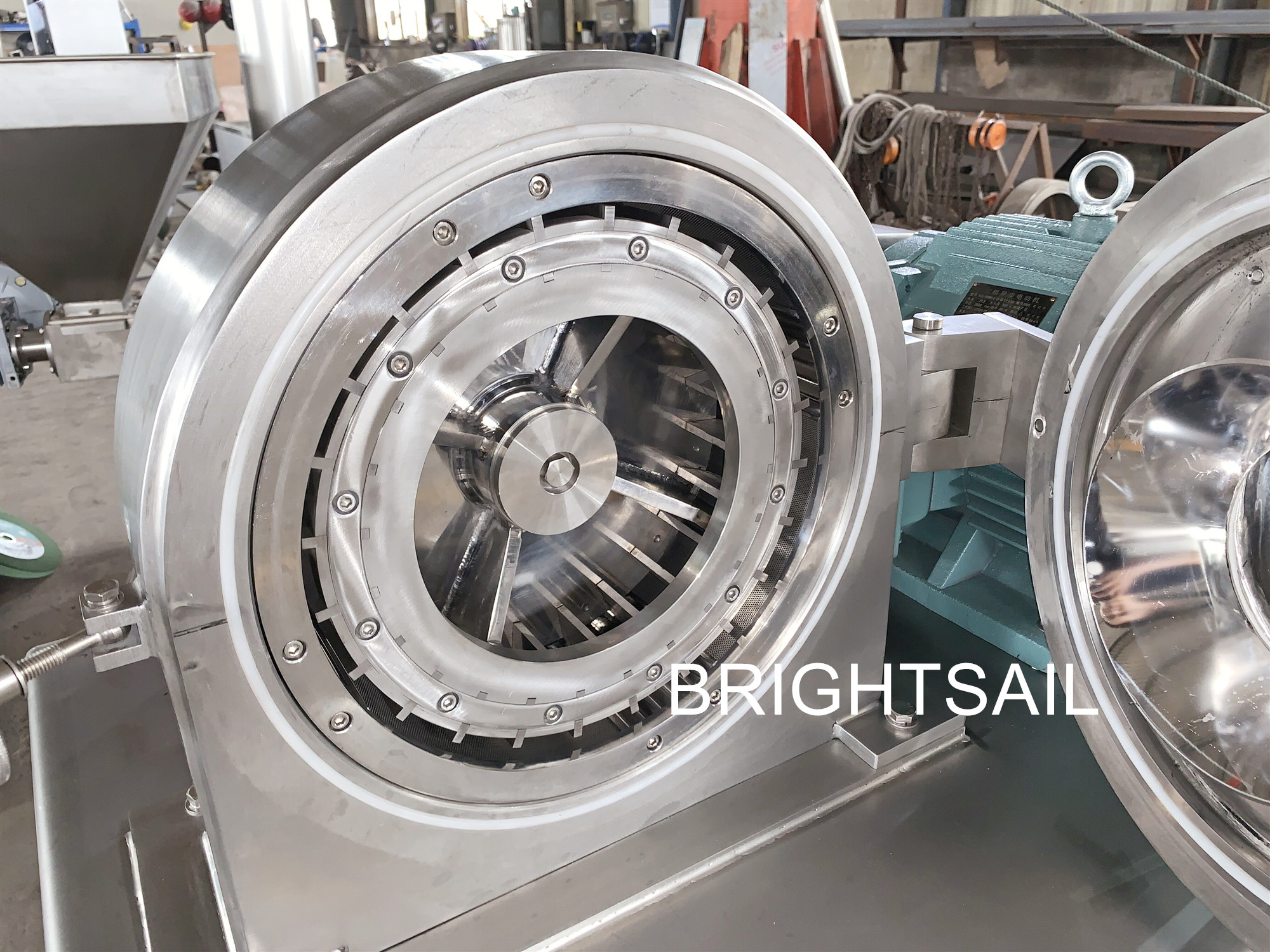

Raw material enters into the grinding chamber through the feed hopper,impacted by the high speed rotary cutter,thrown to the fixed liner,then is bounced and sheared.
Beside the grinding chamber there is a high speed fan blade,which produces positive pressure air flow,under the force the pressure air,powder goes through the screen more quickly and be absorbed into the cyclone. Part of the superfine powder goes to the pulse dust collecting box,so there is no waste and no fly dust during production.
If you are looking for Sugar powder machine,powdered sugar mill,powdered sugar grinder,Salt grinder machine,rice flour grinder...etc,BSG is very suitable.

Features
  • ◪  With a fan in the crusher part,powder is self-absorbed,

  • ◪  capacity is much bigger than traditional type,capacity is 2-3 times bigger than the traditional universal grinding machine.

  • ◪  temperature in the crusher chamber remains normal, material's nature   won't be changed.

  • ◪  If has good grinding effect for crystal material like sugar, salt powder.


Model BSG-300 BSG-400 BSG-500 BSG-600 BSG-700
Speed of principal axis(rpm) 5300 4800 3800 3300 2800
Crusher motor (KW) 5.5 7.5 15 22 30
Blower (KW) 2.2 2.2 7.5 15 18
Discharge motor (KW) 0.37 0.75 0.75 0.75 1.1
Grinding fineness (mesh) 12-120 12-120 12-120 12-120 12-120
Grinding capacity (kg/h) 50-500 100-1000 300-1500 500-2500 1000-5000



powder making machine crusher spice grinder
