BSWD Conical Rotating Vacuum Dryer Chemical Powder Drying Machine

BSWD Conical Rotating Vacuum Dryer Chemical Powder Drying Machine


BSWD is suitable for vacuum drying and mixing of powder and granular materials in the pharmaceutical, food, chemical and other industries.


SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry


Working Method

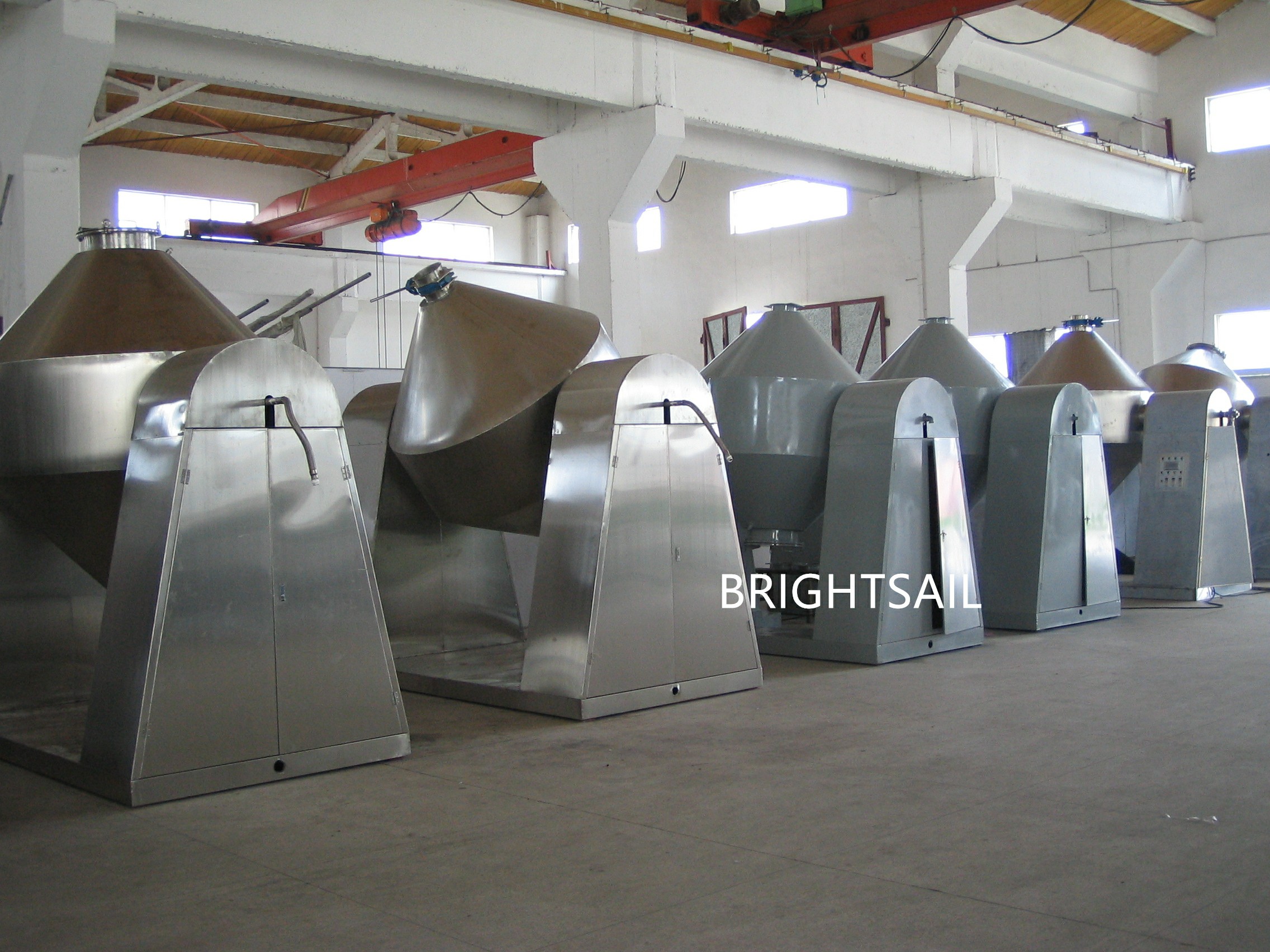

BSWD is a double-cone rotary tank. When the tank is in a vacuum state, heat conduction oil or hot water is passed into the jacket for heating, and the heat is in contact with the wet material through the inside of the tank. The water vapor evaporated after the wet material absorbs heat. It is evacuated by a vacuum pump through a vacuum exhaust pipe. Since the tank body is in a vacuum state, and the tank body is constantly rotating up and down, turning inside and out, the drying speed of the material is accelerated, the drying efficiency is improved, and the purpose of uniform drying is achieved.



Main Features

1. A new type of dryer integrating mixing and drying. The condenser and vacuum pump are matched with the dryer to form a vacuum drying device.

2. Advanced design, simple internal structure, easy cleaning, all materials can be discharged, simple operation.

3. Because the material will rotate when the container itself rotates, but there is no accumulation of material on the wall, the heat transfer coefficient is high, and the drying rate is high, which not only saves energy, but also the material is dried uniformly and fully and has good quality.


ModelBSWD-100BSWD-350BSWD-500BSWD-750BSWD-1000BSWD-1500BSWD-2000BSWD-3500BSWD-4500BSWD-5000
Tank volume(L)100350500750100015002000350045005000
Max loading volume(L)40140200300400600800140018002000
Max loading(kg)20701001502003004007009001000
Rotate speed(rpm)3-1365444
Heating area(㎡)1.12.32.83.95.16.58.212.216.518.2
Motor power(kw)0.751.11.52.2345.57.51115
Floor space(L*W)2160*8002160*8002350*800560*10002860*13003060*13003260*14003760*18003960*20004400*2500
Height of frame(mm)1750210022502490280029402990349041004200
Designed pressure in container(Mpa)-0.25
Jacket design pressure(Mpa)≤0.3
Weight(kg)800110012001500280033003600640075008600
