BSG series self-priming grinders are widely used in food, chemical, coating, medicine and other industries. In the food field, it can grind cooked soybeans, sugar, salt, cinnamon, pepper, garlic, ginger, rice, tea, etc.
Connected with cooling fan, it can grind materials with high oil content.
Phone:
+8615961653782Email:
info@brsmill.comEmail:
sales008@brsmill.comWeChat:
+8615961653782WhatsApp:
+8615961653782
WhatsApp:
+8618914206715

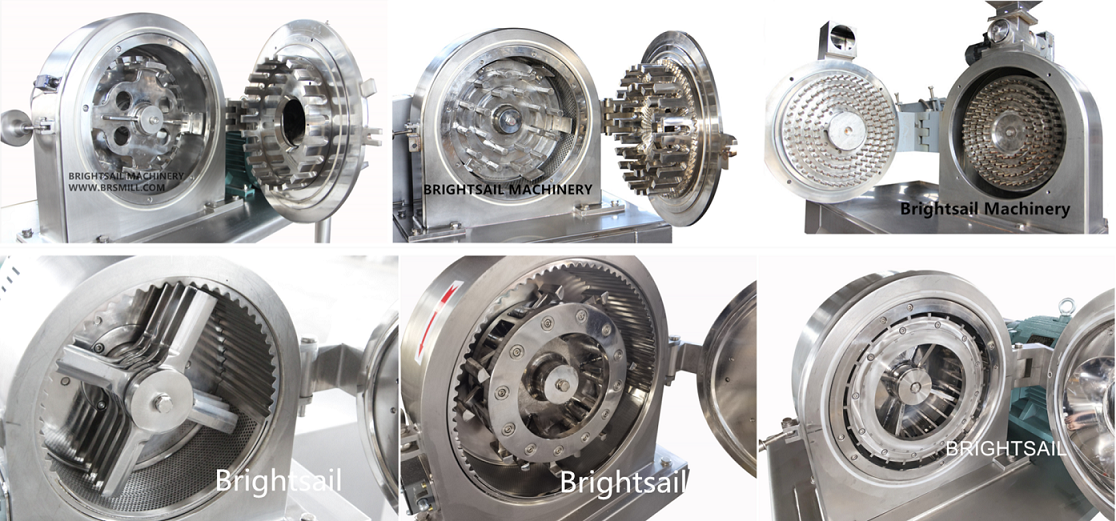

Different crushing parts
Features
The pulverizer is equipped with a fan and the powder is self-priming,
1. The production capacity is much larger than the traditional model, and the production capacity is 2-3 times larger than the traditional universal grinder.
2. The temperature in the crusher cavity remains normal and the material properties remain unchanged.
3. For example, it has good grinding effect on crystal materials such as sugar, salt powder and so on.
Technical Data
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor (KW) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower (KW) | 2.2 | 2.2 | 7.5 | 15 | 18 |
| Discharge motor (KW) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding fineness (mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
| Grinding capacity (kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
