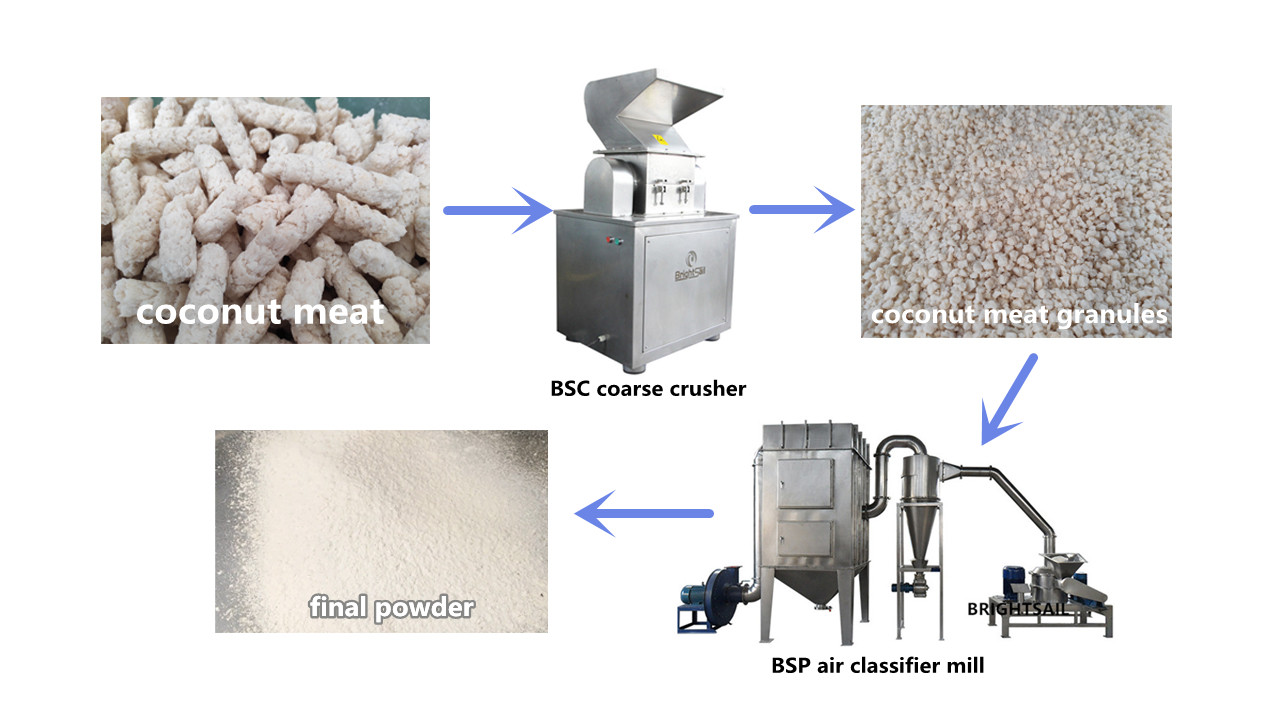

This is a cococnut meat powder making test on BSC coarse crusher and BSP air classifier mill.Our BSC crusher usually be used as primary mill to grind big size materials into small granules,its crushing fineness can reach 0.5-20mm.And the second large machine is good at making superfine powder,its crushing fineness can reach about 60-2500mesh.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782Working Method of air classifier mill
After the raw materials are sent into the grinding chamber, cut and sheared by the high-speed cutter, they are sent to the cyclone separator and bag filter by negative pressure suction, and the discharge meets the product requirements. This is why it can be made into ultra-fine powder and can be used as a fine powder machine (fine powder machine).
Technical Data of air classifier mill
Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
Input size(mm) | < 15 | < 15 | < 15 | < 15 |
Powder fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
Crush motor(kw) | 7.5/11 | 15/18.5 | 22/30/37 | 45/75 |
Grade motor(kw) | 1.1 | 2.2 | 7.5 | 11 |
Blower(kw) | 5.5 | 7.5 | 18.5 | 37 |
Feed motor(kw) | 0.37 | 0.75 | 0.75 | 1.1 |
Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 |
Speed of principle axis (rpm) | -6500 | -5600 | -4400 | -3100 |
Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
Overall size(L*W*H)(mm) | 5000×1400×2800 | 5400×1500×2900 | 6600×2000×3600 | 9800×2700×4900 |
Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working Method of coarse crusher
This machine is of horizontal crushing structure. The material is fed into the crushing chamber through a hopper, crushed by cutting and impact of both fixed and rotating knives, and flows into the exit automatically under the effect rotating centrifugal force. Designed according to GMP standard and wholly made of stainless steel, this machine has simple structure, convenient cleaning and low noise, being the ideal equipment for coarse crushing.
Technical data of coarse crusher
Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
Size of input granules (mm) | <100 | <100 | <100 | <100 |
Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Speed of principal axis(rpm) | 960 | 960 | 960 | 960 |
Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 900*800*1440 |
Weight(Kg) | 200 | 300 | 380 | 500 |
