This is a seamoss(seaweed) gridning tset on BSC coarse crusher and BS-180 hammer mill.
BSC coarse crusher can be used as primary mill to grind seamoss(seaweed) into small flakes,then BS small hammer mill can grind seamoss flakes into fine powder.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782

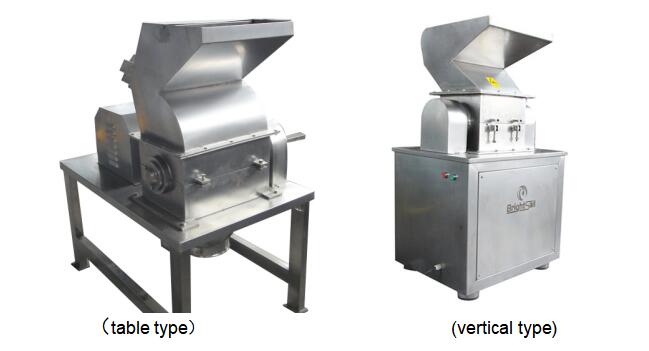

About BSC coarse crusher
Usage:
Industrial food crusher is a special equipment for coarse crushing of hard and tough materials such as plastic and rubber. Especially not restricted by material viscosity, hardness, softness and fiber shape, it has good effect on all materials.
BSC coarse crusher is suitable for pharmaceutical, chemical, food and other industries, as a supporting equipment before the fine crushing process. It has a good effect on most materials.
It is suitable for granulation or one-time grinding.
Working Method:
This machine is a horizontal broken structure. The material enters the crushing chamber through the Hopper, through the cutting and impact crushing of the fixed knife and the rotary knife, and automatically flows into and out of the outlet under the action of the rotating centrifugal force. Designed according to GMP Standard and made of stainless steel, the machine has simple structure, convenient cleaning and low noise. It is an ideal coarse crushing equipment.
Advantages:
1. Simple structure
2. Convenient cleaning
3. Low noise
4. Being the ideal equipment for coarse crushing
| Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
| Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
| Size of input granules (mm) | <100 | <100 | <100 | <100 |
| Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Speed of principal axis(rpm) | 960 | 960 | 960 | 960 |
| Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
| Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
| Weight(Kg) | 200 | 300 | 380 | 500 |

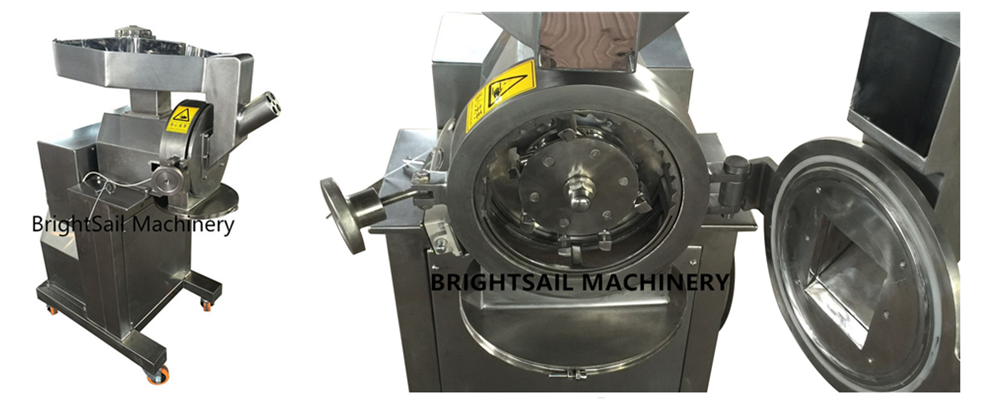

About BS small hammer mill
Introduction:
Our BS small hammer mill can be widely used in pharmaceutical, chemical, food and other industries. For the spice grinding, it has a good grinding effect, most of the spice powder can reach 30 ~ 40 Mesh. In addition to spices, it can be used to grind dry leaves, chickpeas, sugar and many other ingredients.
Working Method:
Target material is smashed by the cutting and grinding of high speed knives. Knife of type can be selected according to different material and size of granules.
Advantages:
1. Simple structure
2. Easy installation
3. Stable running
4. Convenient moving
5. Low noise
6. High grinding efficiency
7. High rotate speed,so it can make fine powder.
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size (mm) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) | < 10 (granule) < 15*40*2 (leaf) |
| Grind fineness (mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/hr) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter（mm） | 200 | 270 | 330 | 380 |
| Rotor speed (rpm) | 5900/8600 | 4200/6200 | 2600~5100 | 2200~4400 |
| Motor (kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size (mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
