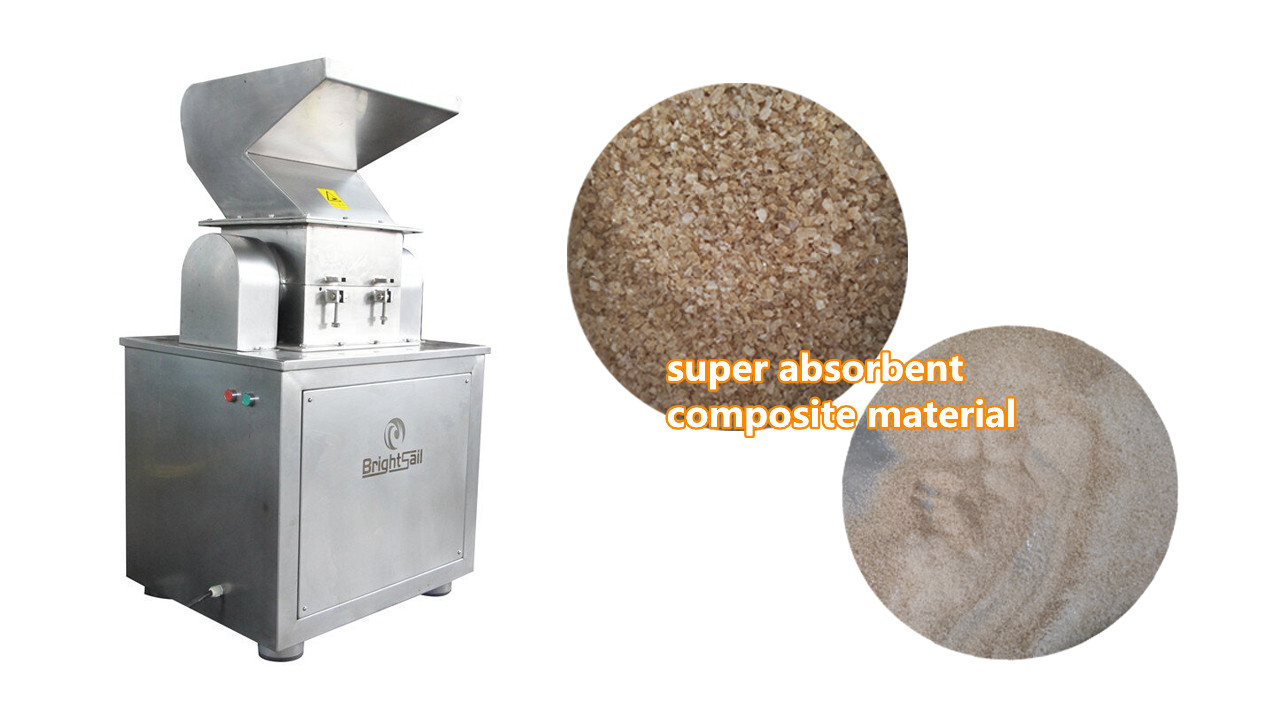

This is a super absorbent composite material grinding test on BSC-300 model coarse crusher,for making granules according to our customer's requirement about granules with 1~2mm particle size.
This type of coarse crusher also can be widely used in food industry,to grind spices like ginger,turmeric,chili,pepper,cummin,coriander seeds...it usually be used to grind raw materials into small granules before fine powder.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:

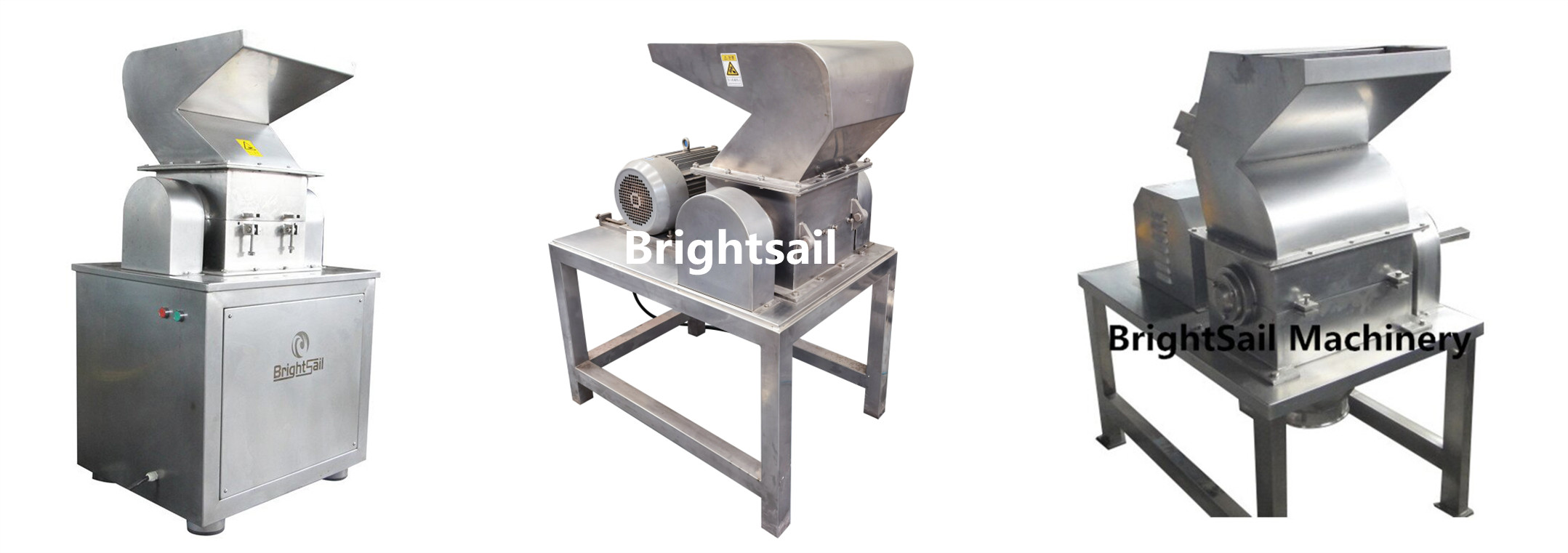

+8615961653782This industrial coarse crusher machine is a horizontal crushing structure. Materials enter the crushing chamber through the hopper, through the fixed knife and rotary knife cutting and impact crushing, in the role of rotating centrifugal force, automatic in and out of the material mouth. According to GMP standard design, all stainless steel manufacturing, simple structure, easy cleaning, low noise. It is an ideal coarse crushing equipment.
Advantages
1. Simple structure
2. Easy to clean
3. Low noise
4. It is an ideal equipment for coarse crushing
Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
Size of input granules (mm) | <100 | <100 | <100 | <100 |
Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Speed of principal axis(rpm) | 960 | 960 | 960 | 960 |
Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
Weight(Kg) | 200 | 300 | 380 | 500 |
