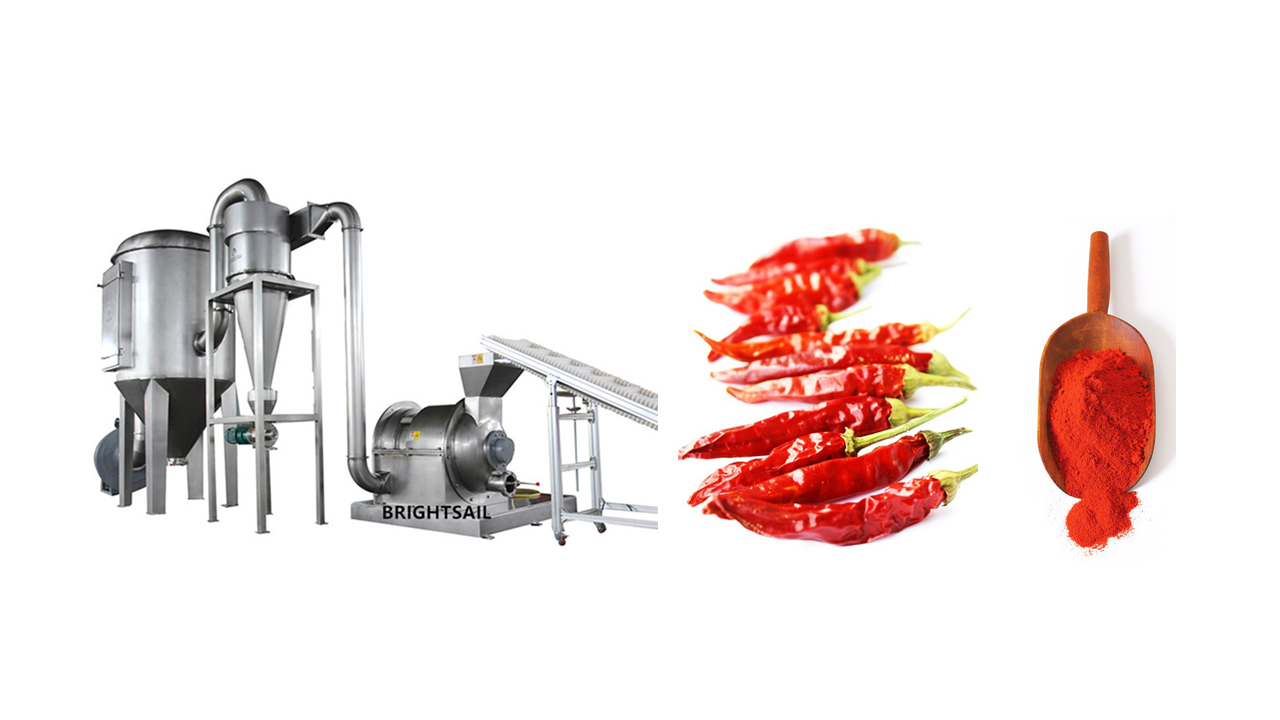

In this video,is our BSDF hammer mill,for making chili powder.It equipped with BS belt conveyor machine,can help to realize continuous feeding.
This grinder has no heating phenomenon in the grinding cavity,it is ideal for grinding heat-sensitive materials or materials containing fibers or oils.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782Advantages
1. There is no need to set a screen or screen in the grinding chamber, and the powder particle size can be changed by changing the speed;
2. Because there is no screen tube in the grinding cavity, there is no heating in the grinding cavity; There is no need to worry about the power of the screen being hit or the quality of the product being affected by the heat of the mill. This is why it is very suitable for grinding heat sensitive materials or materials containing fibers or oil.
3. The mill part integrates rough grinding, medium fine grinding and fine grinding. It can directly grind large raw materials into fine powder, which is very effective.
4. This pepper grinder can save more power, and its production capacity is much greater than other traditional rolling mills and the same motor.
About Crusher Part
This pepper grinder combines the corpse crushing zone, the medium-fine crushing zone, and the ultra-fine crushing zone.
The first crushing zone can crush hard materials;
the second grinding zone can grind materials containing fiber or oil, such as herbs, spices, roots.
The third grinding area is a fine grinding area, and the particle size can be changed by changing the grinding speed.
Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
Grind motor(Kw) | 22 | 37 | 45 | 55 | 75 |
Feed motor(Kw) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Discharge motor(Kw) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
Blower(Kw) | 7.5 | 11 | 15 | 18.5 | 18.5 |
Grind fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
Capacity(Kg/hr) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
