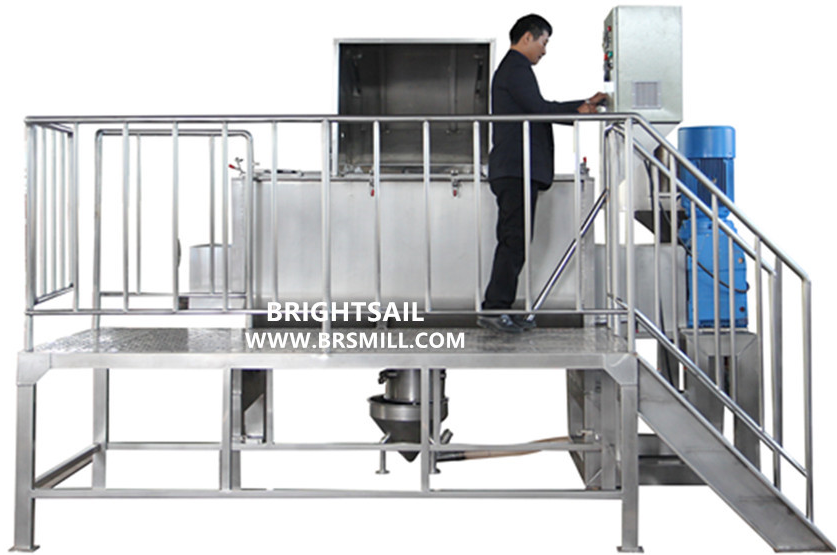

This is our BSR ribbon blender,it is mainly used in solid-solid(powder material) and solid-liquid(powder material-fluidity material) mixing.

Our customers usually use it to mix spice powder,protein powder,grains...

SEND INQUIRY NOW
CONTACT US

Phone:

+8615961653782

Fax:

+86-510-86389258

WeChat:

+8615961653782

Skype:

jewel.qian

WhatsApp:

+8615961653782
Send your inquiry



Structure

The horizontal belt mixer consists of a u-shaped cylinder, a driving part and a belt-type agitating blade. The belt-type agitating blade usually has two or three layers. The outer screw concentrates the material from the side to the center, and the inner screw transports the material from the center to the side, convective mixing is formed.


Working Method

BSR series ribbon mixer is mainly composed of mixing cylinder, spiral ribbon and transmission part. The spiral ribbon consists of two layers. That is, the inner ribbon moves the material outwards, while the outer ribbon moves the material inwards, creating a good material cycle. With the ribbon moving in a circle, the mixer can achieve good mixing efficiency in a short time. If you are looking for dry powder blenders, such as spice powder blenders, protein powder blenders, spice powder blenders, our BSR ribbon blenders are a good choice.


ModelMax work volume(volume)Speed(rpm)Motor(kw)Overall size(mm)weight(Kg)
BSR-10060L762.21080(L)*758(W)*615(H)330
BSR-300180L6641550(L)*812(W)*1015(H)780
BSR--500300L665.51975(L)*1059(W)*1120(H)955
BSR-1000600L41112340(L)*1380(W)*1455(H)1400
BSR-20001200L3318.52480(L)*1651(W)*1805(H)2500
BSR-30001800L33222945(L)*1896(W)*1980(H)3300
BSR-40002400L29223038(L)*1946(W)*2205(H)3600
BSR-50003000L29303932(L)*2010(W)*2035(H)4620
BSR-60003600L26373938(L)*1882(W)*2246(H)5300
BSR-80004800L26453986(L)*2160(W)*2516(H)6800
BSR-100006000L19554500(L)*2270(W)*2667(H)8900
BSR-120007200L19554500(L)*2466(W)*2785(H)9520
BSR-150009000L17755363(L)*2470(W)*3020(H)9950
BSR-2000012000L17755670(L)*2650(W)*3497(H)11140

food processor blender blender and mixer ribbon blender
