This is video of our BSG black pepper grinding unit, in the video, the powder size is ~40 mesh.
This Pepper Powder Grinding Mill is also good at grinding crystal materials,like sugar,salt...for spice(like chili,turmeric...),it also has a good grinding effect.
Phone:
+8615961653782Email:
info@brightsail-asia.comFax:
+86-510-86389258WeChat:
+8615961653782Skype:
jewel.qianWhatsApp:
+8615961653782Black Pepper Grinding Machine Pepper Powder Grinding Mill

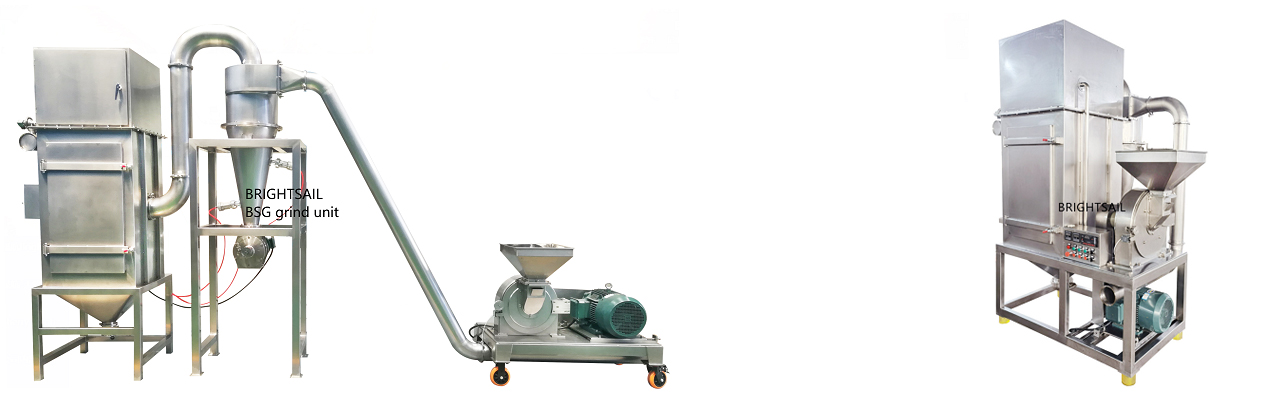

Structure And Working Method of our BSG black pepper powder grinding machine
The raw material enters the grinding chamber through the feeding hopper, is impacted by the high-speed rotating cutter, is thrown to the fixed lining plate, and then is cut by bouncing. Beside the crushing chamber is a high-speed Fan Blade, which generates a positive pressure air flow. Under the action of the pressure air, the powder passes through the sieve faster and is absorbed by the cyclone separator. Part of ultra-fine powder into the pulse dust collector, no waste in the production process, no fly Ash. If you are looking for granulated sugar mill, granulated sugar mill, granulated sugar mill, salt mill, rice mill... etc. , BSG is very suitable.
Features of Black Pepper Grinding Machine
1. With a fan in the crusher part,powder is self-absorbed,
2. Capacity is much bigger than traditional type,capacity is 2-3 times bigger than the traditional universal grinding machine.
3. Temperature in the crusher chamber remains normal, material's nature won't be changed.
4. It has good grinding effect for crystal material like sugar, salt powder.
Technical Data of our BSG black pepper grinding machine
Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
Crusher motor (KW) | 5.5 | 7.5 | 15 | 22 | 30 |
Blower (KW) | 2.2 | 2.2 | 7.5 | 15 | 18 |
Discharge motor (KW) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
Grinding fineness (mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Grinding capacity (kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
